Power Value Reliable Fire Pump,Cheap High Pressure Water Pump,Chinese Pump Prices

Power Value Reliable Fire Pump,Cheap High Pressure Water Pump,Chinese Pump Prices photo-1

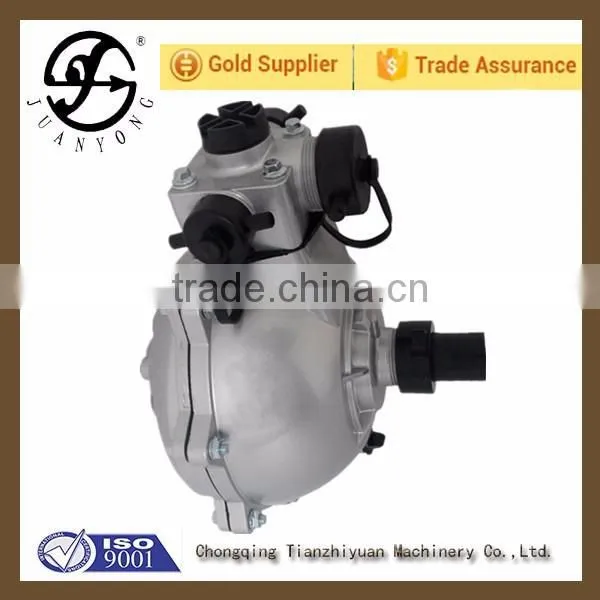

Power Value Reliable Fire Pump,Cheap High Pressure Water Pump,Chinese Pump Prices photo-2

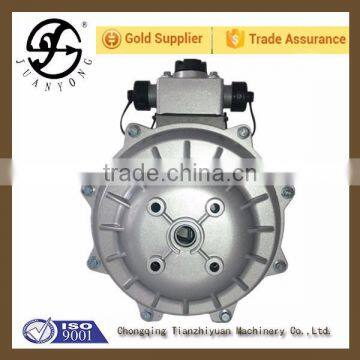

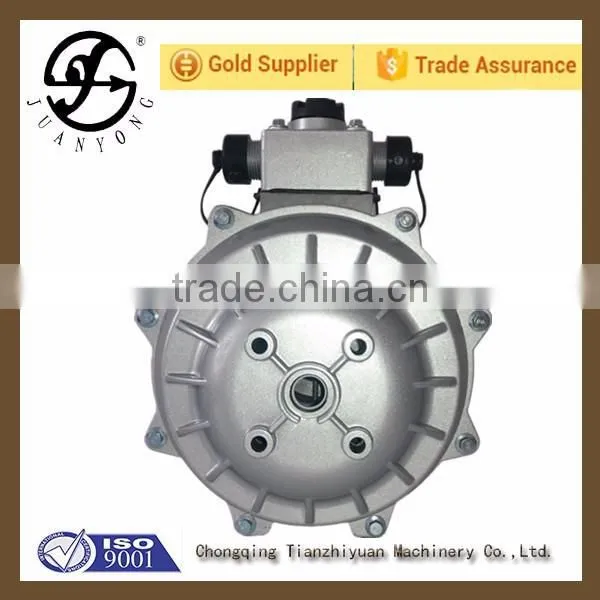

Power Value Reliable Fire Pump,Cheap High Pressure Water Pump,Chinese Pump Prices photo-3
Power Value Reliable Fire Pump,Cheap High Pressure Water Pump,Chinese Pump Prices photo-4

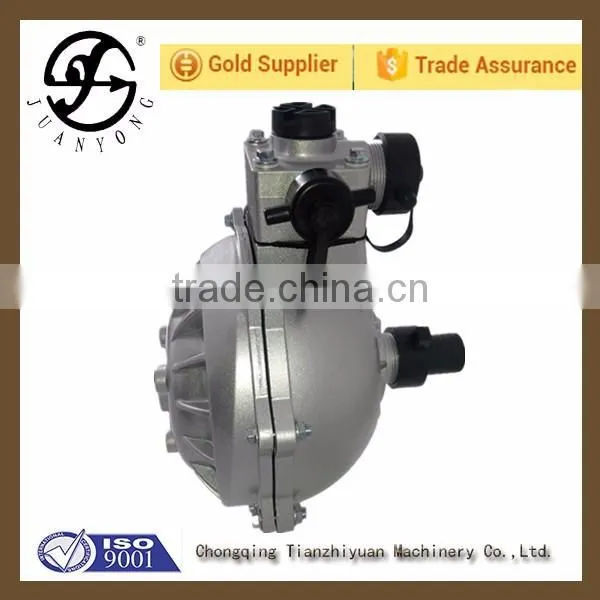

Power Value Reliable Fire Pump,Cheap High Pressure Water Pump,Chinese Pump Prices photo-5
US$ 23 - 33 MOQ: 5 Sets
Key Specifications
Get Latest Price
Place of Origin:
Chongqing, China
Brand Name:
JUANYONG
Model Number:
HP40
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Chongqing, China
Brand Name JUANYONG
Model Number HP40
Theory Centrifugal Pump
Structure Single-stage Pump
Usage Water
Power Hydraulic
Standard or Nonstandard Standard
Fuel Gasoline
Pressure High Pressure
Application Fire
Applications

*Water irrigation by sprinkling.



*Irrigation of rice field.



*Orchard cultivation.



*Pumping of well water .



*Feeding water into water reservoir.



*Feeding or draining water from fish pond.



*Feeding or draining water from fish farm.



*Washing cattle or barn.



*Washing agricultural tools.



*Use for fire fighting.

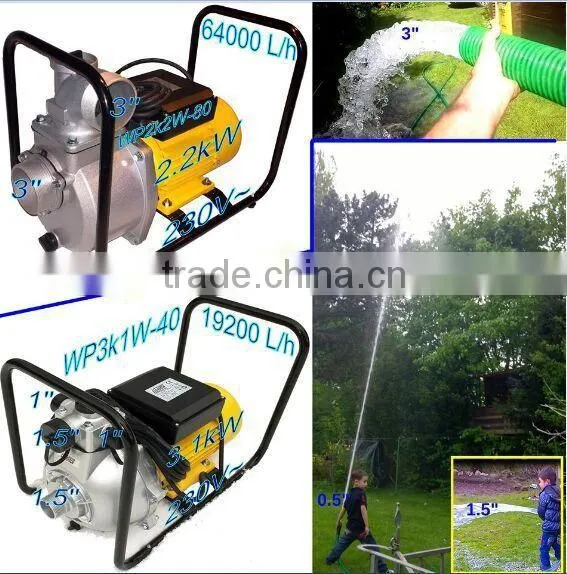

  Power Value Reliable Fire Pump,Cheap High Pressure Water Pump,Chinese Pump Prices

Power Value Reliable Fire Pump,Cheap High Pressure Water Pump,Chinese Pump Prices

Water pump features

*Because of the high pressure and flow rate,it is a most suitable pump for sprinkling,first fire fighting



and other users,which require high delivery pressures.



*Of all the high pressure engine pumps of this class,it ensures the highest lift and is a must for sprinklers



or for water delivery to high and distant places.



*The entire unit is protected by a sturdy rollover pipe frame.

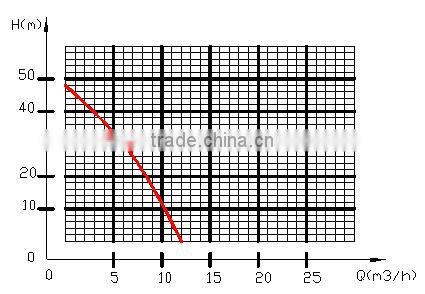

Performance curve

Parameter

ITEM

HP40A

Outlet Size(mm)

40

Inlet Size(mm)

40

aSpeed(rpm)

3600

Displacement Q.max(m3/h)

12

Lift H.max(m)

50

Suction(m)

7

Power

6.5hp

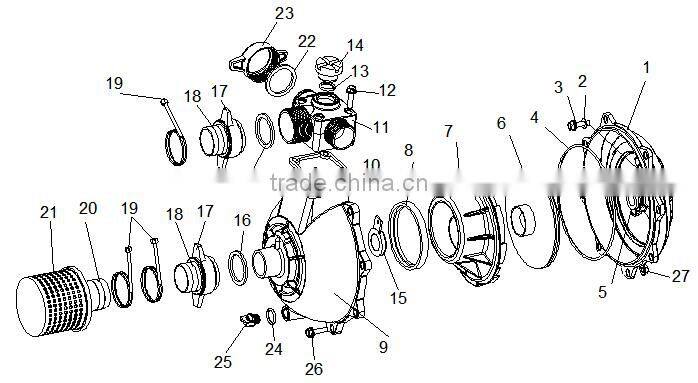

ErialNumber

Name

Number

1

Water pump cover

1

2

Aluminum flat washer  φ8×φ16×1.5

4

3

Bolt  M8×35 GB5787

4

4

Pump sealing ring

1

5

Mechanical seal / ceramic

1

6

Impeller

1

7

Eddy shell

1

8

Eddy shell sealing ring

1

9

Water pump body

1

10

Outlet gasket

1

11

The water outlet joint

1

12

Bolt  M8×60 GB5787

4

13

Rubber plug gasket

1

14

Threaded plug pump

1

15

Inlet check valve

1

16

Pipe joint sealing gasket 1.5"

2

17

Pipe joint connecting nut 1.5"

2

18

Pipe joint

2

19

Clamp

3

20

The filtering orifices

1

21

Filter cover

1

22

Pipe joint sealing gasket 1"

2

23

Pipe joint connecting nut 1"

2

24

Rubber plug gasket

1

25

Threaded plug pump

1

26

Bolt  M8×35 GB5787

8

27

Nut  M8  GB6177

8
