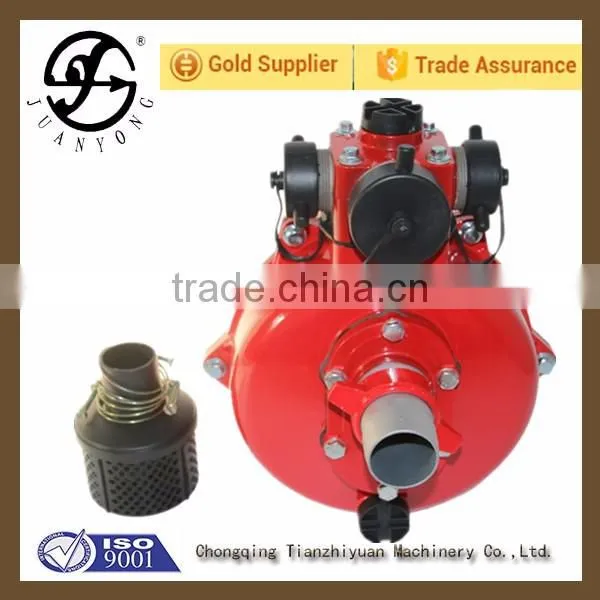

2" electric motor high pressure water pump
USD $40 - $50
/ Set
10 Sets(Min.Order)
- 1500 Set / Sets per Month
- Shanghai or Chongqing Port
- T/T
You May Like
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Chongqing, China | Brand Name: | Juanyong | Model Number: | 2HP50 |
| Theory: | Other, Self Priming | Structure: | Single-stage Pump | Usage: | Water |
| Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric |
| Pressure: | High Pressure | Application: | Other, Fire Fighting, Irrigation |
Product Description
JUANYONG Brand Double Impeller High Pressure Water Pump
This high pressure water pump is efficient, light-weight and portable. Suitable for transferring high volumes of water quickly and safely, the pump body is Die-Casting Aluminum. this model can be used for fire fighting, high pressure water transfer, spray irrigation, flood irrigation, high pressure spraying, boom spraying, wash down and fast fill tanker applications.
Specifications of 2 Inch Double Impeller High Pressure Water Pump
| Item | 2 HP50 |
| Inlet Size(mm) | 50 |
| Outlet Size(mm) | 50 |
Displacement Q.max(m3 /h) | 16 |
Lift H.max(m) | 80 |
| Suction(m) | 7 |

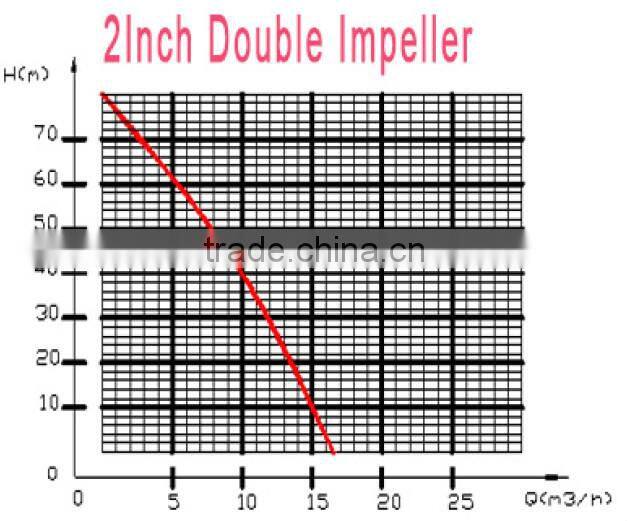

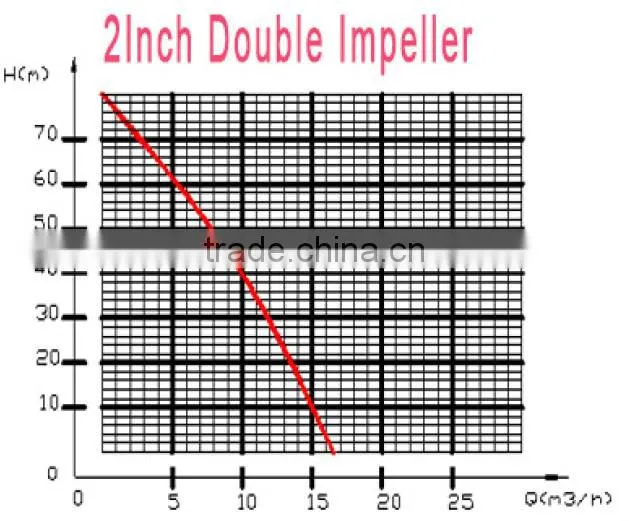

Performance Curve
Water Pump Part List
| No. | Name | Number |
| 1 | water pump cover | 1 |
| 2 | Aluminum flat washer Φ8×φ16×1.5 | 4 |
| 3 | Bolt M8×60 GB5787 | 4 |
| 4 | Pump sealing ring | 1 |
| 6 | mechanical seal/ceramic | 1 |
| 7 | Impeller | 1 |
| 8 | Eddy shell | 1 |
| 9 | Eddy shell sealing ring | 1 |
| 10 | water pump body | 1 |
| 11 | Outlet gasket | 1 |
| 12 | The water outlet joint | 1 |
| 13 | Bolt M8 | 12 |
| 14 | Rudder plug gasket | 2 |
| 15 | Threaded plug pump | 2 |
| 16 | Inlet sealing gasket | 1 |
| 17 | Inlet joint | 1 |
| 18 | Pipe joint sealing gasket | 2 |
| 19 | Pipe joint connecting nut | 2 |
| 20 | Pipe joint | 2 |
| 21 | Clamp | 3 |
| 22 | The filtering orifices | 1 |
| 23 | filter cover | 1 |

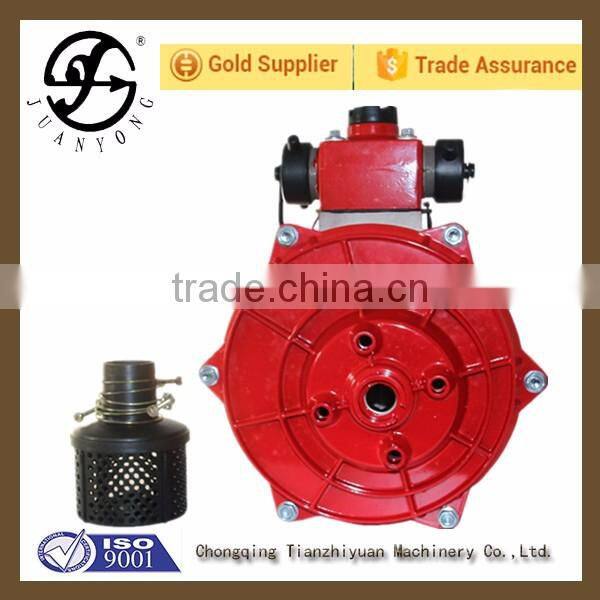

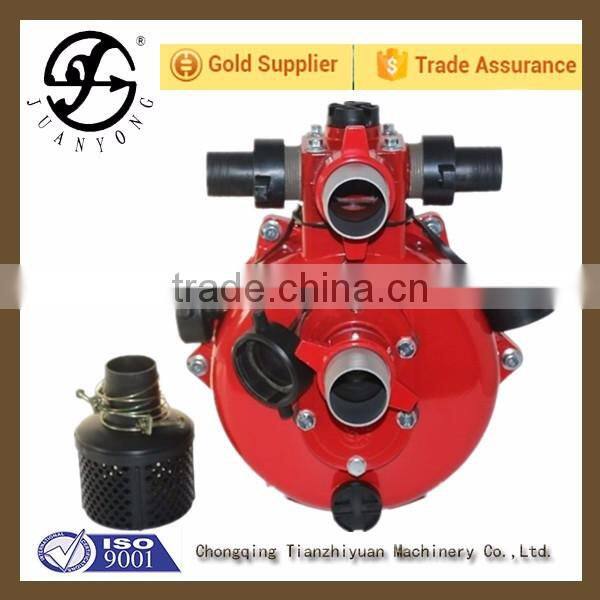

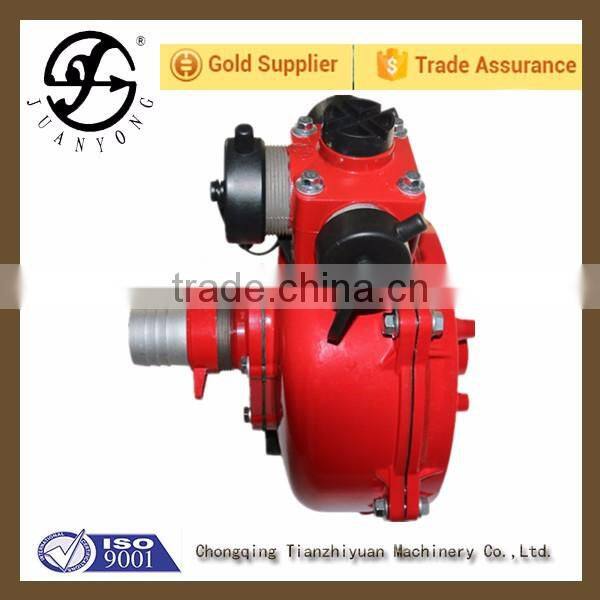

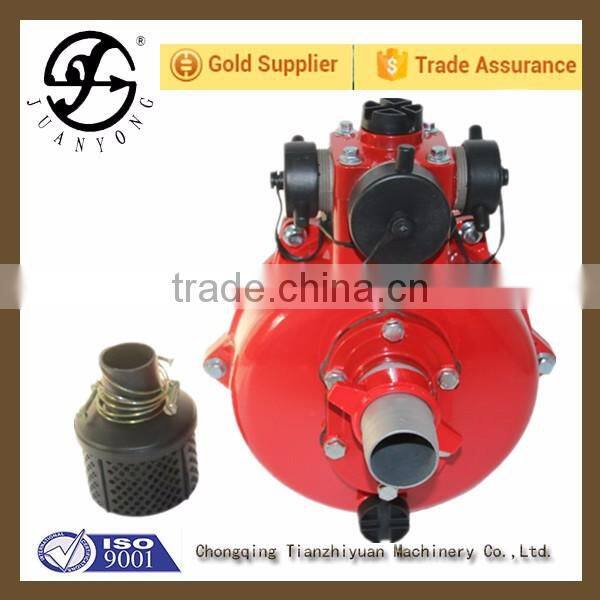

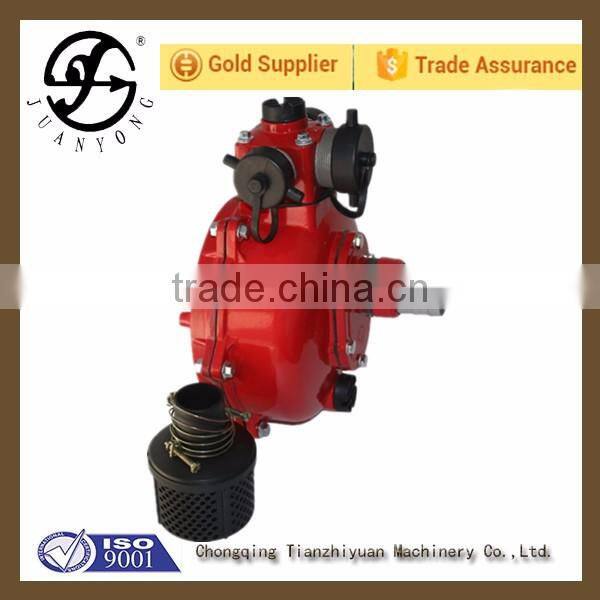

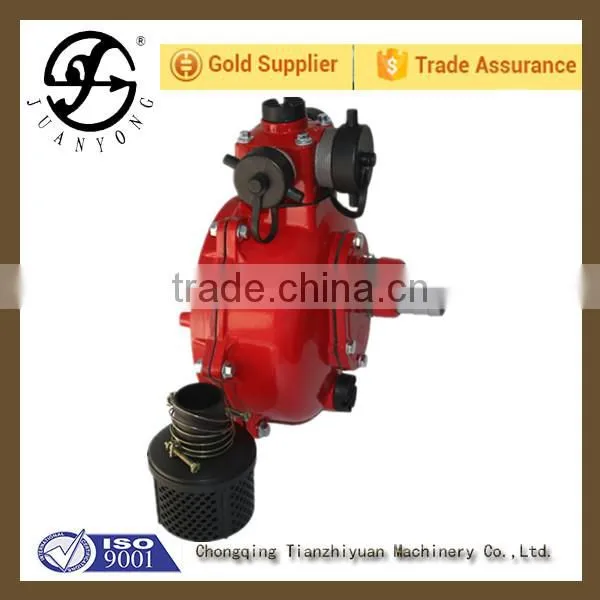

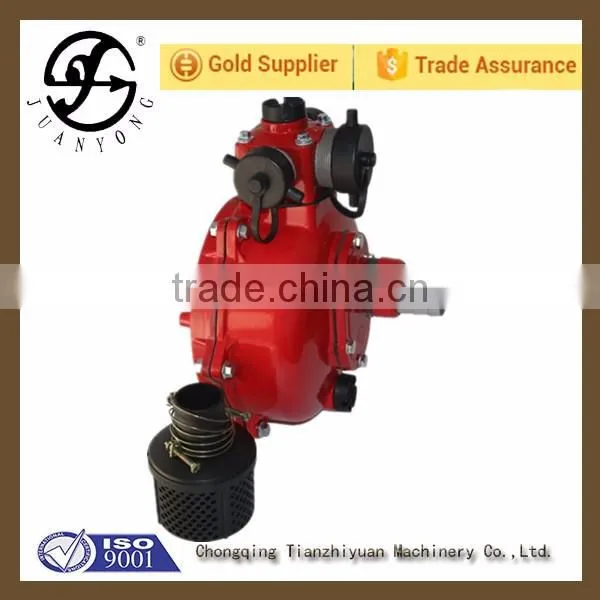

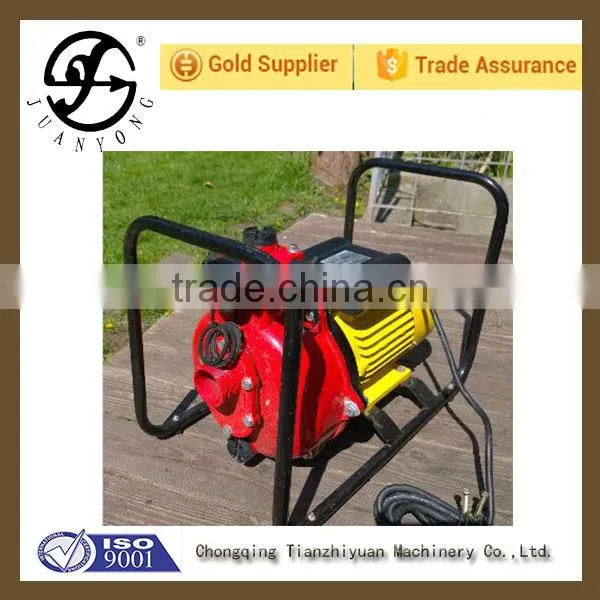

Pictures of 2 Inch High Pressure Water Pump
Certificate of Tianzhiyuan Water Pump
Our Service
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
