1.Plastic pumps are designed to move fluids that would corrde or damage other types of pumps.
2.They provide broad chemical resistance and lighter in weight than metal pumps.

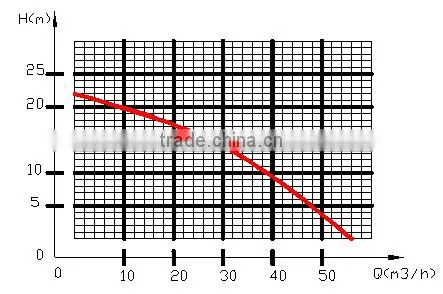

Performance curve
Parameter
| ITEM | FTB80 |
| Outlet Size(mm) | 80 |
| Inlet Size(mm) | 80 |
| Speed(rpm) | 3600 |
| Displacement Q.max(m3/h) | 56 |
| Lift H,max | 22 |
| Suction(m) | 7 |
| Power | 6.5hp |
Plastic pumps are designed to move≥5℃ and PH4-11 abrasive materials,acids,adhesives,
chemicals,coolants,liquid metal.
Plastic pump can pump ground water,potable water and salt water.

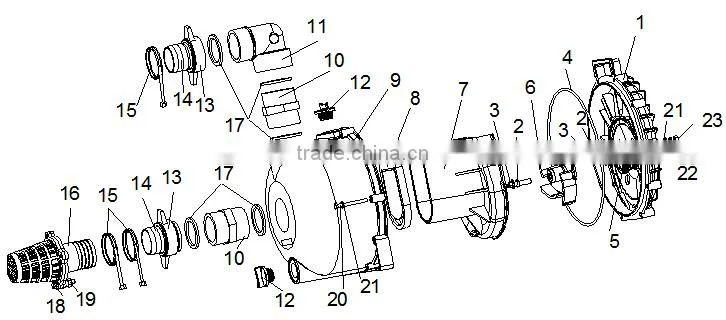

| Serial number | Name | Number |
| 1 | Water pump cover | 1 |
| 2 | Rubber ring Φ12×Φ6×3.1 | 4 |
| 3 | Bolt M8×35 | 4 |
| 4 | Pump sealing ring | 1 |
| 5 | Mechanical seal/ceramic | 1 |
| 6 | Impeller | 1 |
| 7 | Eddy shell | 1 |
| 8 | Eddy shell sealing ring | 1 |
| 9 | Water pump body | 1 |
| 10 | Inlet joint | 2 |
| 11 | The water outlet joint | 1 |
| 12 | Threaded plug pump | 2 |
| 13 | Pipe joint connecting nut | 2 |
| 14 | Pipe joint | 2 |
| 15 | Clamp | 3 |
| 16 | Filter cover | 1 |
| 17 | Pipe joint sealing gasket | 2 |
| 18 | Bolt M6×20 | 2 |
| 19 | Nut M5 | 2 |
| 20 | Bolt M6×65 | 10 |
| 21 | Shim | 20 |
| 22 | Spring pad | 10 |
| 23 | Nut M6 | 10 |
Customers to visit our factory
packaging the goods
Chongqing Tianzhiyuan machinery co., LTD. (formerly "beibei meaningful machinery accessories factory") is a professional engaged in machine self-priming pump, high pressure pumps, sewage pumps, vibrators and its accessories and other products production and processing, the company produces water pump more than 20 sets. Widely used in agriculture (irrigation), (fire), mining water supply and drainage, and many other industries, won the unanimous praise and trust of customers. Company passed the ISO9001 quality management system certification, and constantly improve the staff's quality consciousness, improving production testing equipment, accelerating technological innovation, and enhance the development ability, to produce more high quality products to serve the society. Our company are: chongqing lifan, southeast, dragon, silver cheung, etc more than 20. I plant integrity, strength and product quality are received industry recognition. Welcome all world friends come to visite our company.
Advantages we have:
A. Experienced slate products supplier.
B. Professional design team and sales department for your service.
C. Alibaba golden supplier, factory recognized by "CE/IS9001"and so no.
D. 7/24 service for you all the question will be dealed within 24 hours.
Benelit you got:
A. stable quality-coming from good material and technic.
B. lower price-not cheapest but the lowest at the same quality.
C. good service-satisfactory service before and after sale.
D. delivery time10-15 days for mass production.
Our Services
Chongqing Tianzhiyuan Machinery Co.,Ltd. is a professional manufacturer of water pumps in China and we will provide 24 hours services for customer. If you have any needs or technque question, you can choose by online talk or call us directly.
