1.Plastic pumps are designed to move fluids that would corrde or damage other types of pumps.
2.They provide broad chemical resistance and lighter in weight than metal pumps.
| ITEM | FTB50 |
| Outlet Size(mm) | 50 |
| Inlet Size(mm) | 50 |
| Speed(rpm) | 3600 |
| Displacement Q.max(m3/h) | 25 |
| Lift H.max(m) | 22 |
| Suction(m) | 7 |
| Power | 6.5hp |

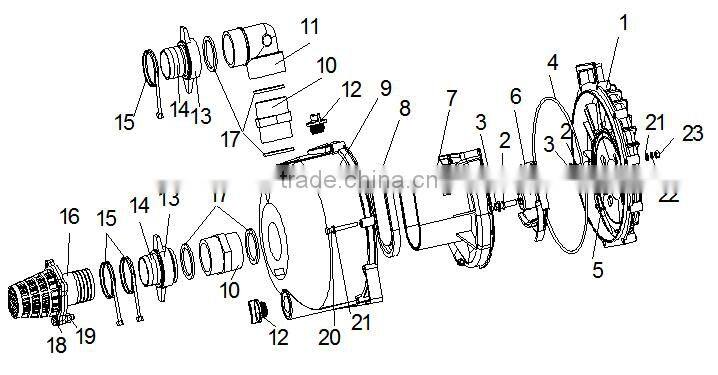

| Serial number | Name | Number |
| 1 | Water pump cover | 1 |
| 2 | Rubber ring Φ12×Φ6×3.1 | 4 |
| 3 | Bolt M8×35 | 4 |
| 4 | Pump sealing ring | 1 |
| 5 | Mechanical seal/ceramic | 1 |
| 6 | Impeller | 1 |
| 7 | Eddy shell | 1 |
| 8 | Eddy shell sealing ring | 1 |
| 9 | Water pump body | 1 |
| 10 | Inlet joint | 2 |
| 11 | The water outlet joint | 1 |
| 12 | Threaded plug pump | 2 |
| 13 | Pipe joint connecting nut | 2 |
| 14 | Pipe joint | 2 |
| 15 | Clamp | 3 |
| 16 | Filter cover | 1 |
| 17 | Pipe joint sealing gasket | 2 |
| 18 | Bolt M6×20 | 2 |
| 19 | Nut M5 | 2 |
| 20 | Bolt M6×65 | 10 |
| 21 | Shim | 20 |
| 22 | Spring pad | 10 |
| 23 | Nut M5 | 10 |
Plastic pumps are designed to move≥5℃ and PH4-11 abrasive materials,acids,adhesives,
chemicals,coolants,liquid metal.
Plastic pump can pump ground water,potable water and salt water.
Business type:manufacturer,trading company.
Location:chongqing,china(mainland).
Year established:2010.
Company certifications:
Main products:chemical pumps,sewage pumps,self priming drag pumps,self priming high lift pumps,self priming pumps.
Our philosophy is to provide our clients with a wide choice of quality products and unprecedented services,we assure our clients of a mutually beneficial relationship as we look forward to developing a long term strategic partnership with your esteemed organization.
Customers to visit our factory
Advantages we have:
A. Experienced water pump products supplier.
B. Professional design team and sales department for your service.
C. Alibaba golden supplier, factory recognized by "CE/IS9001"and so no.
D. 7/24 service for you all the question will be dealed within 24 hours.
Benelit you got:
A.Stable quality-coming from good material and technic.
B.Lower price-not cheapest but the lowest at the same quality.
C.Good service-satisfactory service before and after sale.
D.Delivery time10-15 days for mass production.
1.Q:Are you a manufactory or trading company?
A:We are water pump manufactory with more than seven years production experience,welcome to visit our factory.
2.Q:What's your MOQ?
A:Trial sample order is ok.
3.Q:What's ypur payment terms?
A:T/T 30% payment in advance,70% pay it when we send all goods after.
