Specifications
1.98% system efficiency;2.Easy to install and move;
3.Working with sunrise and off with sundown.

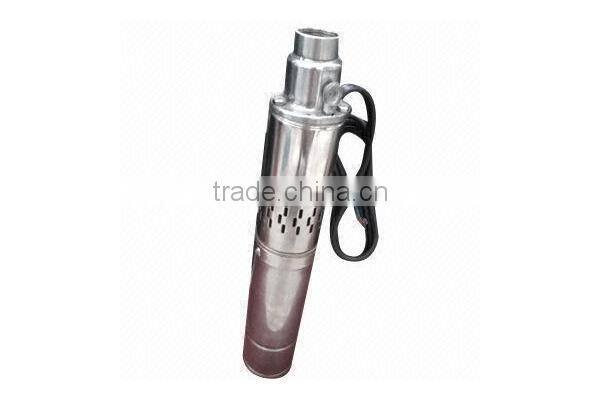

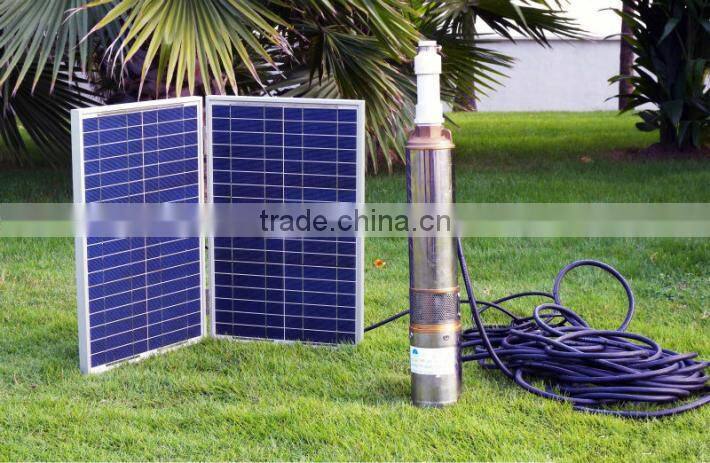

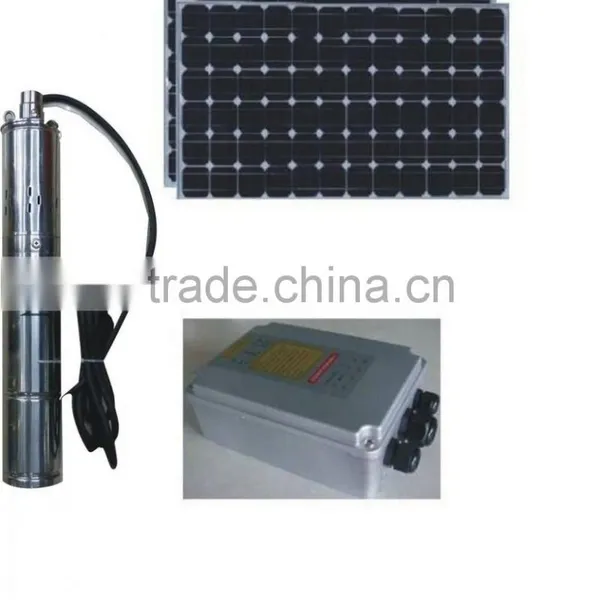

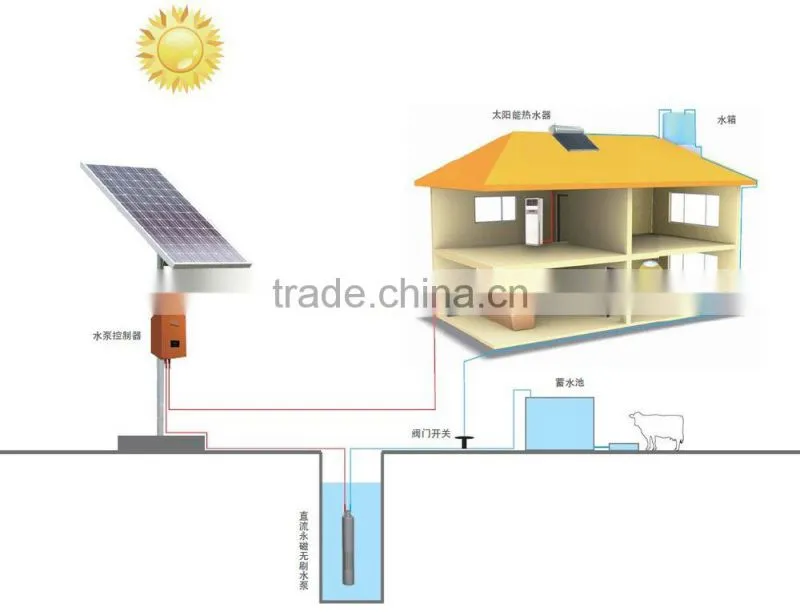

370W solar submersible pump included a 370watt 220V single phasesubmersible pump, a 500watt solar pump inverter, and a 550W home solar panel. 370watt submersible pump can be used for family or crop irrigation, Especially in the area where far away from the power net, and people there who have to use diesel generator.
Features:
1,New type of solar power generator without battery.
2 Rise the efficiency to at least 98% of solar power generator.
3.Without the battery for whole system, which can dramatically reduce the use-cost and maintenance cost.
4.Use the MPPT technology which can help to adjust the power of pump follow the sunlight strength.
5.The working time can reach 7-10 hours (,the working time will be effective by radiation strength at local)
6.25years of 80% efficiency of solar array.
| 370W soalr submersible pump | |||
| Name | Power | Specification | Paraeter |
| Pump | 370W | Use your own or we offer you one | YOU CHOOSE |

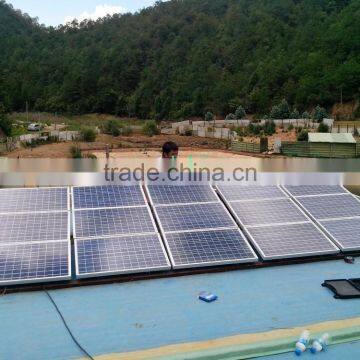

| solar panel array | 550W | Brand | XIHE |
| Specification | 18pcs XIHE30W(36)506*506*25 | ||
| Weight | 3.0kg | ||
| Rated Power | 30W | ||
| Optimum operating voltage | 17.3V | ||
| Optimum operating current | 1.74A | ||
| cells efficiency | 15% | ||

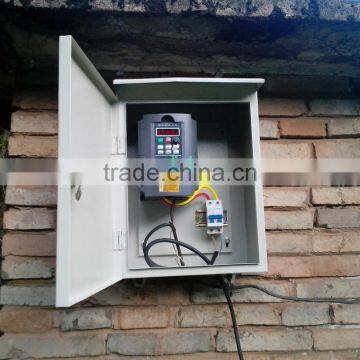

| Pumping inverter | 540W | Brand | YCSBS0005 |
| Max.input voltage | 450V | ||
| MPPT voltage range | 250V-400V | ||
| Recommend input voltage | 310V | ||
| Max. MPPT efficiency | 97% | ||
| Input road | 2 Road | ||
| Max. drive motor power(kw) | 370W | ||
| Rated output voltage(V) | 220V 1 phase | ||
| Output frequency | 0-50HZ | ||
| Max. system efficiency | 98% | ||
| Operating temperature range | from-10to40℃ | ||
| Cooling method | nature cooling and air cooling | ||
| Display | LCD | ||
| Altitude | 1000m,above 1000m need derate power 1000m | ||
| Meet the standards | EN 50178; IEC/EN 62109-1; IEC 61800 | ||
Yunnan YAOCHUANG energy development co.,ltd.
Other products we provide you:
Solar panel, charge controller, inverter, rechargeable battery, LED light
Solar water pump system
Off grid solar generator system
Grid tie solar generator system
Wind & solar hybrid generator system
Customized solar energy system application according to your demand,feel free to contact Jackie:)
