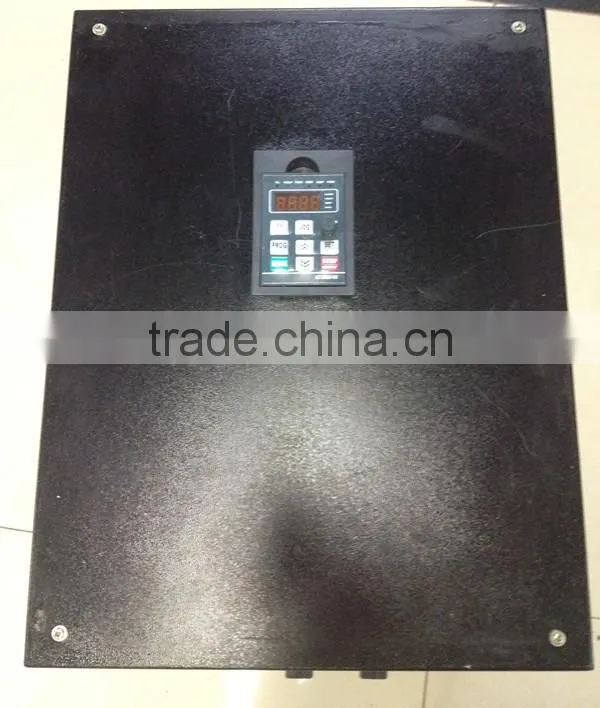

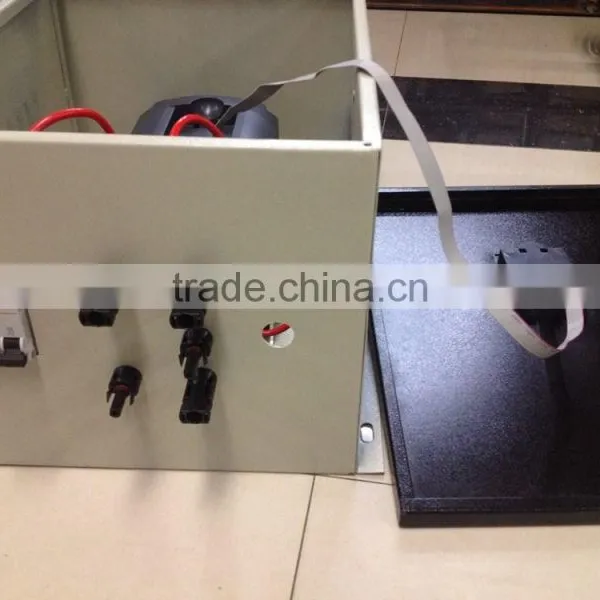

1.5KW-11KW AC solar water pump system for irrigation water pump inverter
- 500000 Piece / Pieces per Month
- shanghai shezhen ningbo
- T/T Credit Card PayPal
-
Frequency Converters 50Hz,60Hz,400Hz for Navy,port,shipyard,oil,shipbuilding,shiprepair,airport
-
Frequency Converters 50Hz,60Hz,400Hz for Navy,port,shipyard,oil,shipbuilding,shiprepair,airport
-
Frequency Converters 50Hz,60Hz,400Hz for Navy,port,shipyard,oil,shipbuilding,shiprepair,airport
-
Frequency Converters 50Hz,60Hz,400Hz for Navy,port,shipyard,oil,shipbuilding,shiprepair,airport
-
electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
-
45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
Product Details
| Brand Name: | water pump inverter | Model Number: | YC-S | Output Power: | 1 - 200KW |
| Output Type: | Dual | Size: | 890*680*580mm | Weight: | 10KG |
| Input Voltage: | 300-750V DC | Output Voltage: | 3 phase 380V AC | Type: | DC/AC Inverters |
| Output Frequency: | 0~50/60Hz | Output Current: | 4A-28A |
Product Description
Specifications
water pump inverter1.5KW-11KW solar water pump inverter
DC rated voltage 600V
98% max. MPPT efficiency
7-10 hour working ti
1.5KW-11KW AC solar water pump system for irrigation water pump inverter
11KW-45KW water pump inverter
560V DC input / Three phase 380V AC output
97% maximum MPPT efficiency

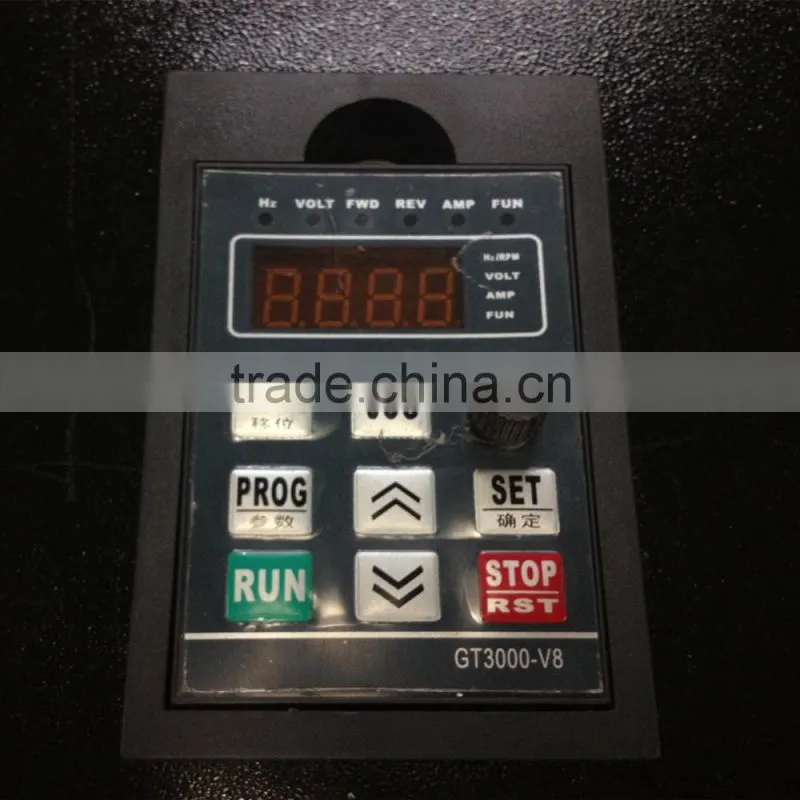

LCD display
Model | YCSBH0015 | YCSBH0022 | YCSBH0030 | YCSBH0037 | YCSBH0055 | YCSBH0075 | YCSBH0110 |
Max. input voltage(V) | 800 | ||||||
MPPT voltage range(V) | 300-750 | ||||||
Recommend input work voltage(V) | 560 | ||||||
Max. input current(A) | 4 | 6 | 8 | 11 | 15 | 21 | 28 |
Max. MPPT efficiency | 97% | ||||||
Recommend pv array power(kw) | 1.7 | 2.3 | 3.3 | 4.5 | 6.0 | 8.3 | 11.3 |
Input road | 2 | ||||||
Max, drive motor power(kw) | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 |
Rated output voltage(V) | 380V 3 phase | ||||||
Output frequency | 0~50/60Hz | ||||||
Max. system efficiency | 98% | ||||||
Operating temperature range | from-10℃ to +40℃ | ||||||
Cooling method | Natural cooling + air cooling | ||||||
Display | LCD | ||||||
Altitude | 1000m,above 1000m need decrease power 1000m | ||||||
Meet the standards | EN 50178; IEC/EN 62109-1; IEC 61800 | ||||||
YUNNAN YAOCHUANG ENERGY DEVELOPMENT CO., LTD. is a professional solar water pump system integrator, has own work shop manufacture solar panels, inverters, and controllers. We offer 370W - 50KW solar water pump systems for agriculture & home use. Over 10 years experience makes us confident of supplying you the best suitable solar water pump system to replace driver pump by electricity or diesel engine.
Solar Water pump Advantage:
1) No area limited, even in none power supply village
2) Economical power supply system, perpetual energy source
3) Environment protection, no noise
4) Easy application, convenient & efficient
5) Operating with solar panel or battery
Any question about solar water pump system or water pump inverter, please do not hesitate to contact us:)
