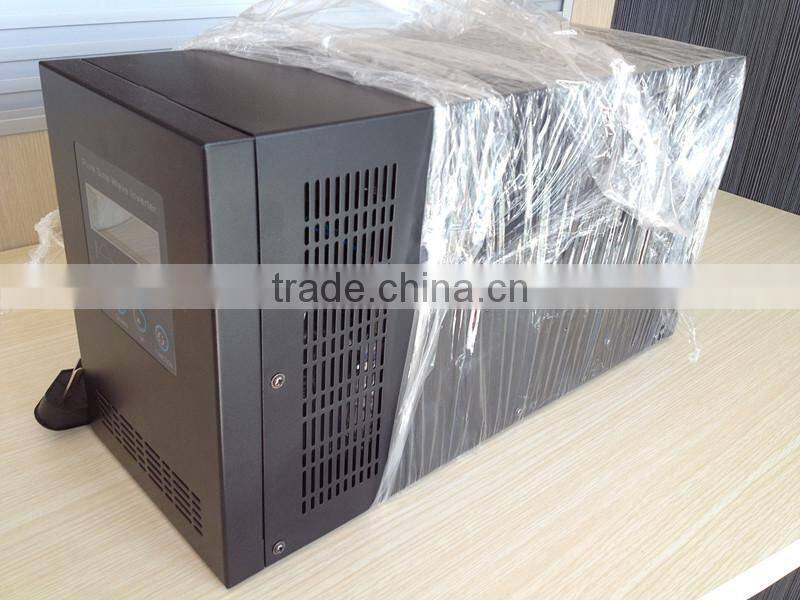

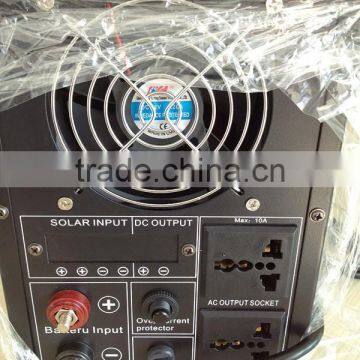

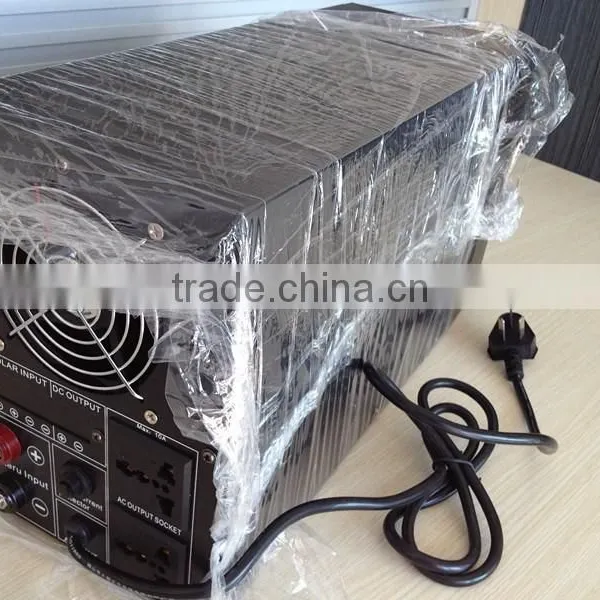

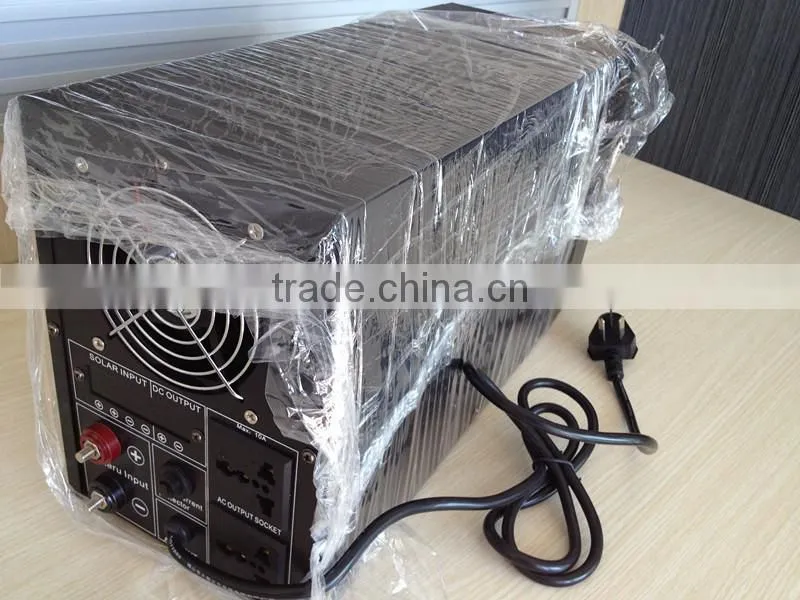

2500W/48Vdc, 3000W/48Vdc 2015 New off Grid Solar Inverter
US$ 232 - 288
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
off grid solar inverter
Model Number:
YC-S
Output Power:
Other, 2000W-3000W
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai shezhen ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 Hot Selling 1500W/24Vdc, 2000W/48Vdc Solar Inverter PriceUS$ 232 - 288MOQ: 10 Pieces -
700W/12Vdc, 1000W/24Vdc Solar Inverter Hybrid Solar InverterUS$ 135 - 163MOQ: 10 Pieces
-
Pure Sine Wave Inverter 12V 350W / 500W Single Phase 220V AC Output Solar off Grid InverterUS$ 80 - 135MOQ: 10 Pieces
-
DC12/24V to AC220V 1000W, USB 5V 1000W Solar Grid InverterUS$ 30 - 40MOQ: 10 Pieces
-
ISO Certificated AC + USD 5V Multifunctional Inverter 500W DC12V /AC 220V Solar Power InverterUS$ 30 - 40MOQ: 10 Pieces
Brand Name
off grid solar inverter
Model Number
YC-S
Output Power
Other, 2000W-3000W
Output Type
Dual
Size
428*225*360mm
Weight
17.7KG
Input Voltage
48V DC
Output Voltage
220V AC
Type
DC/AC Inverters
Output Frequency
50Hz/60Hz
Output Current
11.4A-13.6A
Specifications
off grid solar inverter 48V dcAC Output Voltage AC 220
2500W/3000W pure sine wave inverter
Motor frequency inverter
2500W/48Vdc, 3000W/48Vdc 2015 New off grid solar inverter
2500W/48Vdc, 3000W/48Vdc off grid solar inverter motor frequency inverter
Feature
- Toroidal transformer of light weight, small size, high conversion efficiency, low power consumption, good load capacity and load adaptability, etc.
- AC input automatic voltage regulator (AVR), input voltage range of 145V ~ 275V.

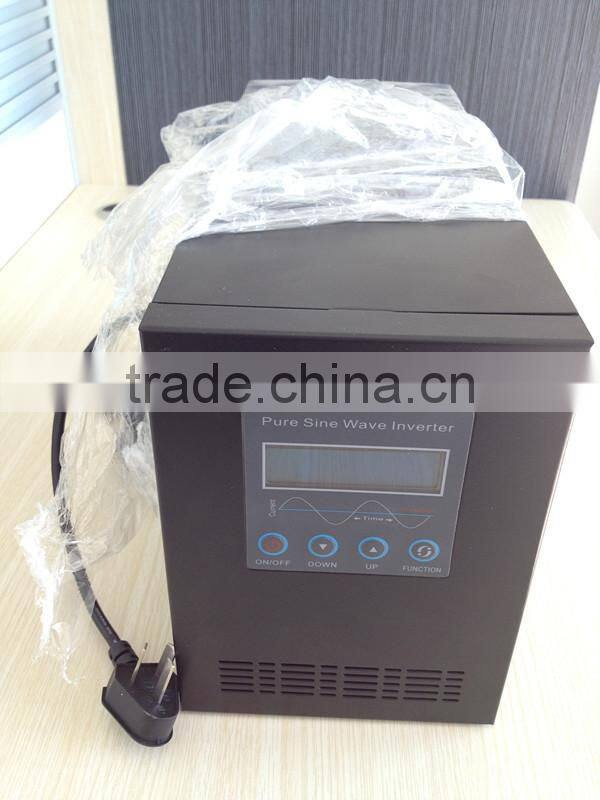

- Liquid crystal (LCD) display, backlight power saving mode. The main display real-time battery voltage, battery capacity, input and output voltage, output frequency, duty ratio, etc. Automatically switch the display according to different working conditions.
- Multifunction intelligent operating system, icon-based menu operation, easy human-computer communication interface.
- Function: System Language settings (in English), the timing settings (switch), the mode setting (mains operation overrides / battery operation mode priority), peak load shifting settings, time settings, display mode settings, restore factory settings and other feature settings.
- Record Query: Fault records check, battery discharge time queries.
- Having overload, battery overcharge, over discharge, output short circuit, over-temperature protection features.
- Full SMD modular structure, stable performance, easy maintenance.
| Rated Power | 2500W | 3000W |
| Battery Voltage | 48Vdc | 48Vdc |
| Battery Voltage range | 42Vdc-60Vdc | 42Vdc-60Vdc |
| Input Voltage(AC) | 220Vac(145Vac-275ac) | |
| Input Frequency | 50Hz(45Hz-55Hz) | |
| Output Voltage(AC) | 220Vac(Battery mode±3%,Mains mode±10%) | |
| Output Frequency | 50Hz | |
| Transfer Efficiency | ≥85% | 85%(100%load)88%(50%load) |
| Output Wave | Standard Sine Wave | |
| Temperature | -10℃~ 50℃ | |
| Humidity | 10%~ 90%(Non-condensing) | |
| Size(L×W×H) | 428mm×225mm×360mm | |
| Package Size(L×W×H) | 528mm×325mm×455mm | |
| NW(Kg) | 14 | 16.5 |
| GW(Kg) | 15.2 | 17.7 |
| Protection | ||
| Over Charge | Y | |
| Low Voltage Protection | Y | |
| Over Voltage Protection | Y | |
| Overload Protection | Y | |
| Short Circuit Protection | Y | |
| Over High Temperature | Y | |
Yunnan Yaochuang Energy Development Co., Ltd is a professional solar energy system & wind power system designer & supplier,offering

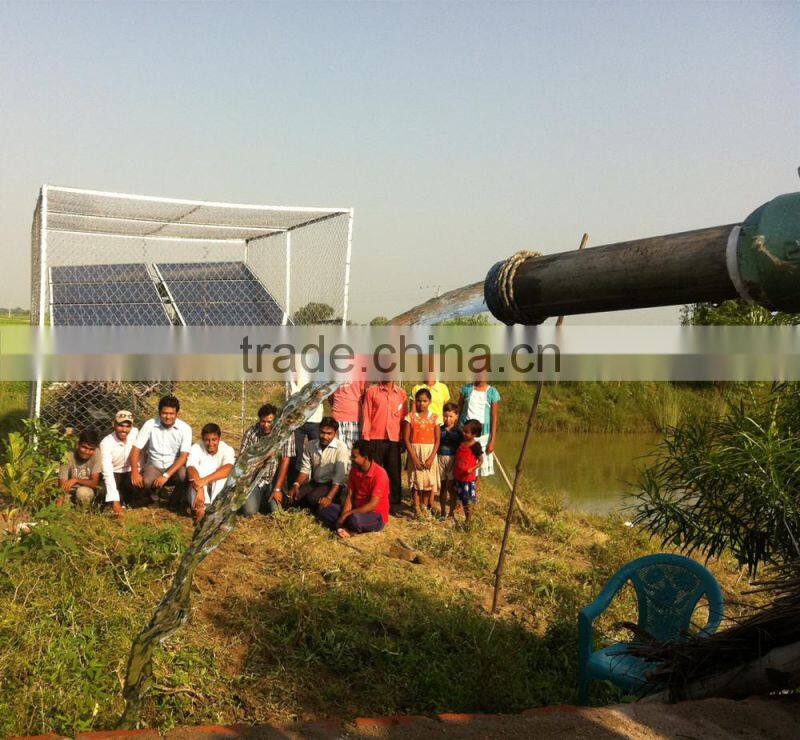

Solar water pump system

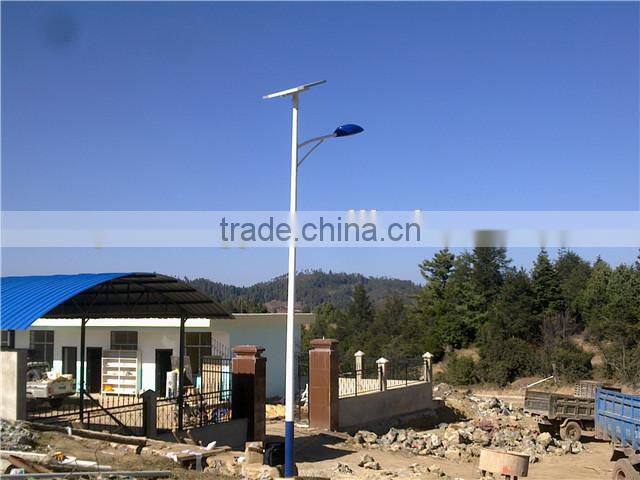

Solar street light system
Home use off grid solar system

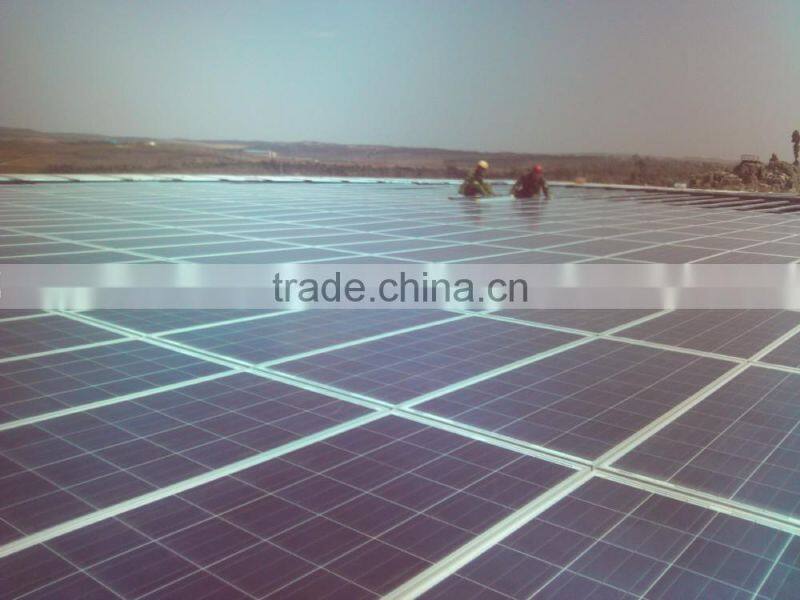

Grid tie solar system

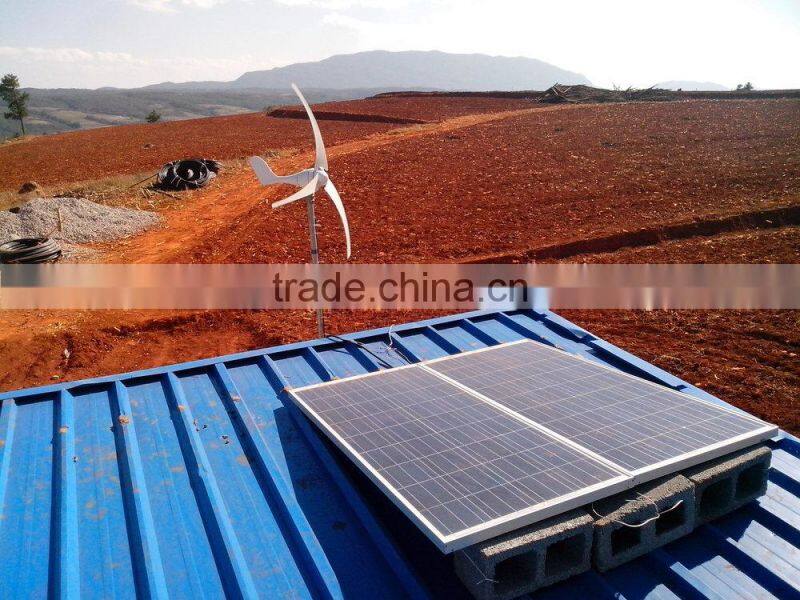

Solar & wind hybrid power system
How to establish business with us?
- Contacting us via email or trademanager, tell us what products or system you need, and your requirements
- Specification & price will be sent to you within 12 hours after getting your inquiry (except for holidays)
- Adjusting design and price according to your budget until you accept it
- Preparing products within 5 days once deposit is arrived, and ship out parcel after receiving balance payment (please give us some more prepared time for bulk order)
- Informing you freight information, and offering you bill of loading
- Guiding installating after you receive products
- Giving us feedback, and repeat order
Thanks visiting our website, and insteresting in off grid solar inverter, any question, please contact us freely:)
