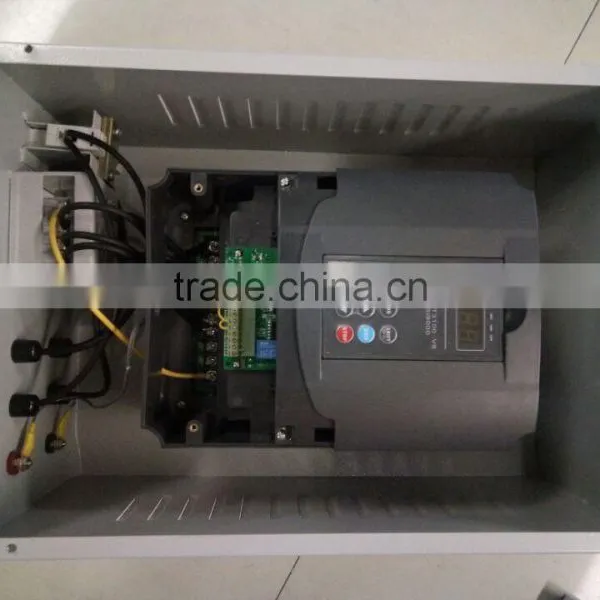

MPPT Controller 1.1KW Solar Water Pump Inverter VFD AC220V Single or 3 Phase 50/60Hz Pump Controller
- shanghai shezhen ningbo
- T/T Money Gram Credit Card PayPal
You May Like
-
1HP Submersible Well Pump DC to AC Solar Pump Inverter 1.1KW
-
0.4KW-2.2KW 310V DC Input 220V Single or Three Phase Output Solar Water Pump Inverter
-
1.5KW-11KW AC Solar Water Pump System for Irrigation Water Pump Inverter
-
2015 Solar Water Pump Inverter With MPPT Controller Solar Pump Inverter
-
Off Grid Solar System 5000W/48Vdc, 5000W/96Vdc, 10000W/96Vdc, 10000W/192Vdc Mppt Solar Charge Controller Inverter
-
2500W/48Vdc, 3000W/48Vdc 2015 New off Grid Solar Inverter
Product Details
| Place of Origin | Yunnan, China | Brand Name | solar pump controller | |
| Model Number | YC-S | Output Power | 1 - 200KW | |
| Output Type | Dual | Size | 890*680*580mm | |
| Weight | 6KG | Input Voltage | 250-400V DC | |
| Output Voltage | single or 3 phase 220V AC | Type | DC/AC Inverters | |
| Output Frequency | 0~50/60Hz | Output Current | 3A-7A |
Product Description

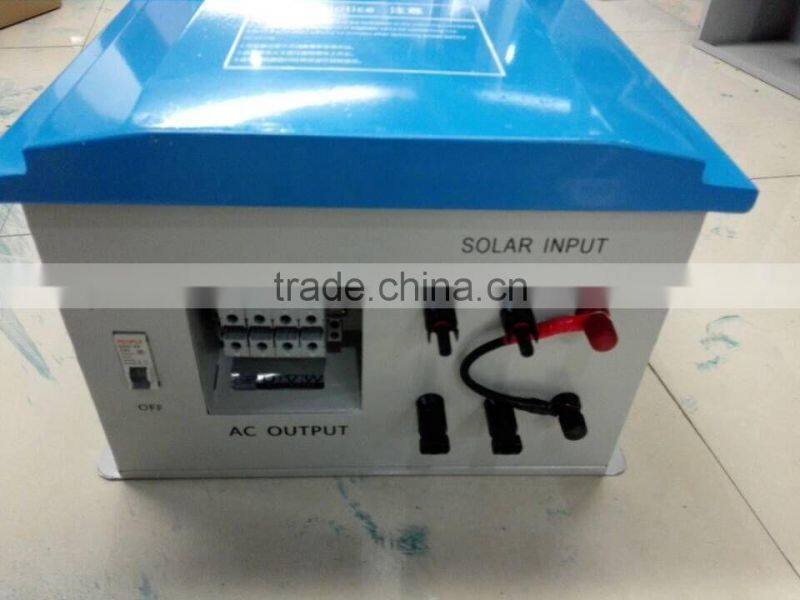

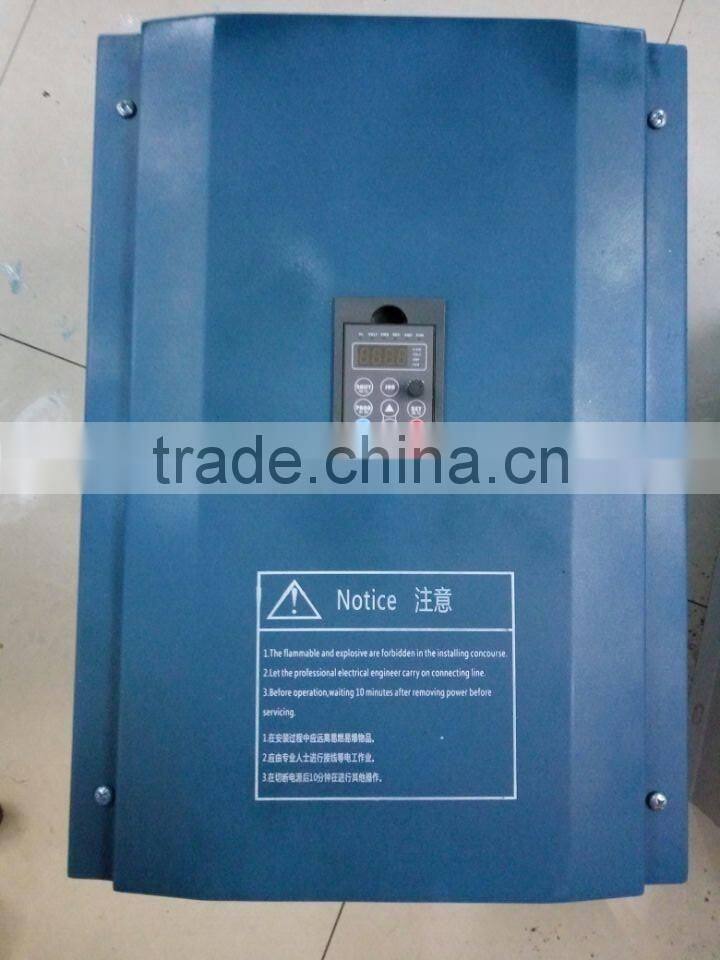

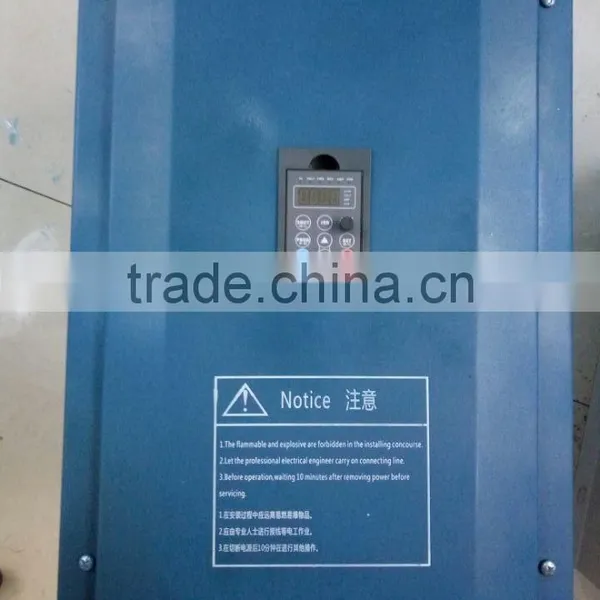

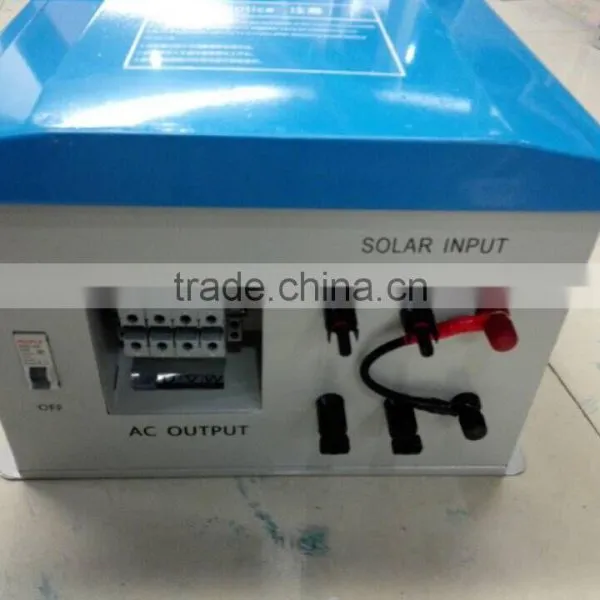

MPPT controller 1.1KW solar water pump inverter VFD AC220V single or 3 phase 50/60Hz pump controller
0.4KW-2.2KW pump inverter
310V DC input / Three or single phase 220V AC output
97% maximum MPPT efficiency
LCD display
Model | YCSBS00040 | YCSBS00075 | YCSBS00011 | YCSBS0015 | YCSBS0022 |
Max. input voltage(V) | 450 | ||||
MPPT voltage range(V) | 250-400 | ||||
Recommend input work voltage(V) | 310 | ||||
Max. input current(A) | 3 | 4 | 5 | 5 | 7 |
Max. MPPT efficiency | 97% | ||||
Input road | 1 | ||||
Max, drive motor power(KW) | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 |
Rated output voltage(V) | 220V 3 phase or 1 phase | ||||
Output frequency | 0~50/60Hz | ||||
Max. system efficiency | 98% | ||||
Operating temperature range | from-10℃ to +40℃ | ||||
Cooling method | Natural cooling + air cooling | ||||
Display | LCD | ||||
Altitude | 1000m,above 1000m need decrease power 1000m | ||||
Meet the standards | EN 50178; IEC/EN 62109-1; IEC 61800 | ||||
Promise:
- All products will be passed ex-factory inspection, promise good quality
- Free technical support if cooperate with us
- Free installation guidance, layout drawing
- Within warranty period, promise exchange new one freely if any problem
YUNNAN YAOCHUANG ENERGY DEVELOPMENT CO., LTD. is a professional solar water pump system integrator, has own work shop manufacture solar panels, inverters, and controllers. We offer 370W - 50KW solar water pump systems for agriculture & home use. Over 10 years experience makes us confident of supplying you the best suitable solar water pump system to replace driver pump by electricity or diesel engine.
Offering 0.4KW - 160KW single phase & three phase solar water pump inverter for solar water pumping system.
OEM private lable service is acceptable.
Free installation layout drawing.
Installation service is available.

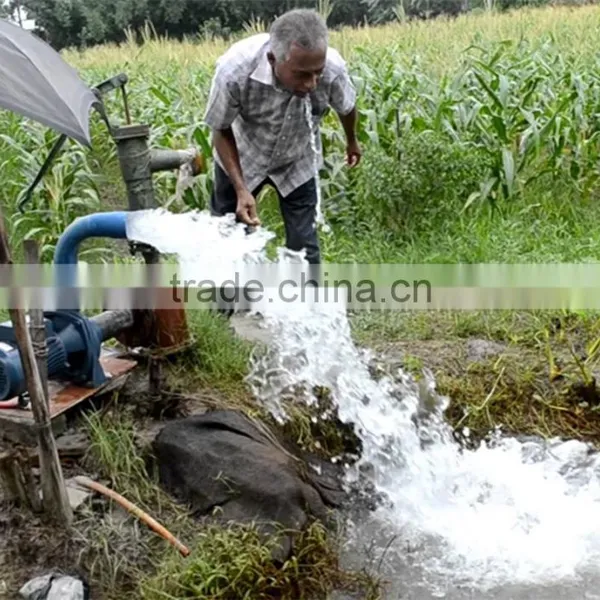

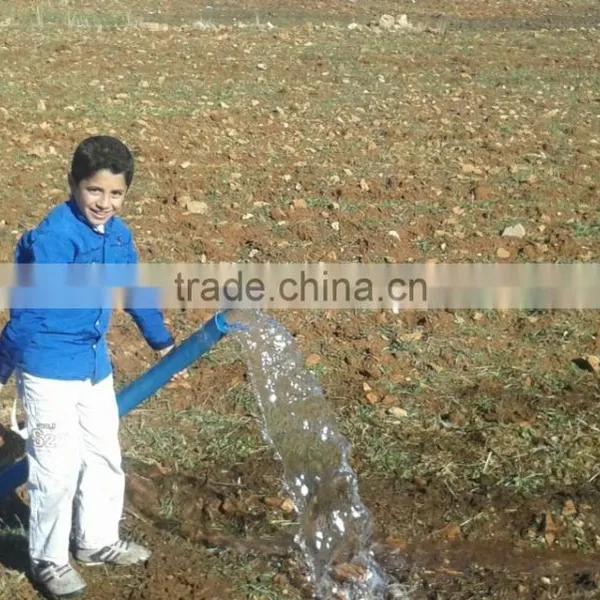

Solar Water pump Advantage:
1) No area limited, even in none power supply village
2) Economical power supply system, perpetual energy source
3) Environment protection, no noise
4) Easy application, convenient & efficient
5) Operating with solar panel or battery
Any question about solar water pump system or pump inverter, please do not hesitate to contact us:)
