Specifications
solar inverter0.4KW-2.2KW irrigation pump inverter
310V DC input 220V single or three phase output
MPPT 98% controller

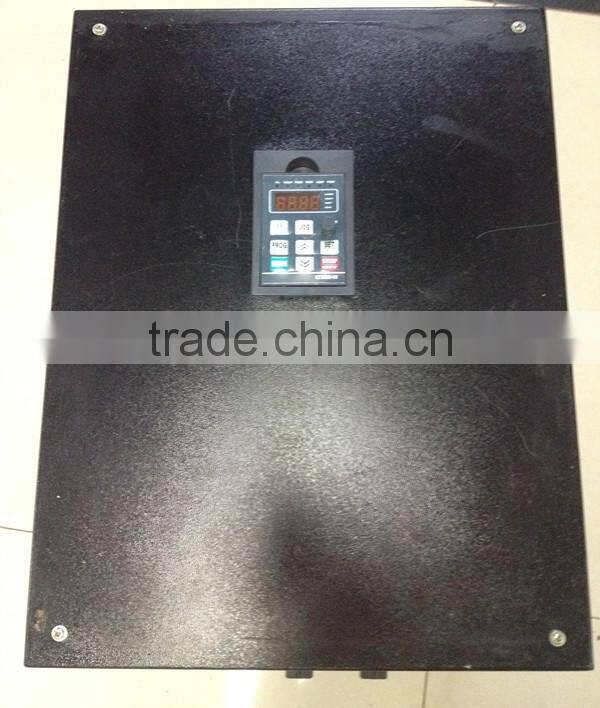

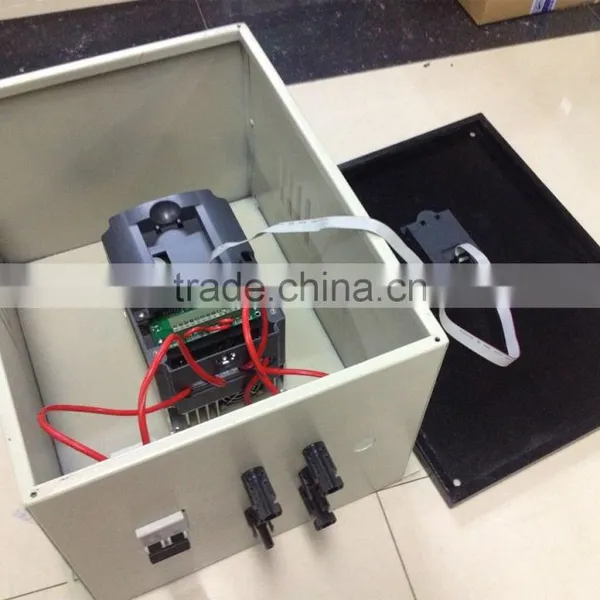

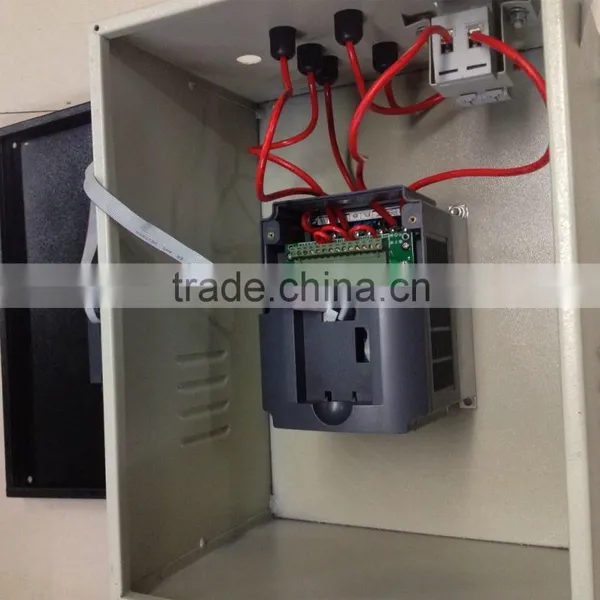

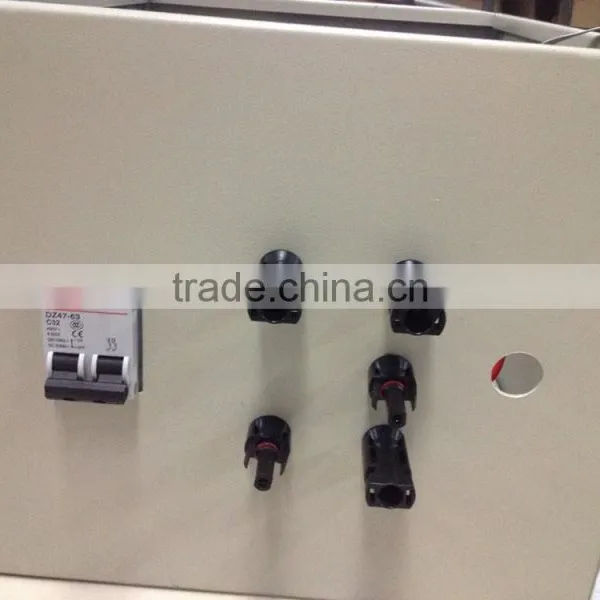

YCSBS0022 MPPT controller solar inverter for water pump irrigation
0.4KW-2.2KW solar inverter
310V DC input / Three or single phase 220V AC output
97% maximum MPPT efficiency
LCD display
Model |
YCSBS00040 |
YCSBS00075 |
YCSBS00011 |
YCSBS0015 |
YCSBS0022 |
Max. input voltage(V) |
450 |
||||
MPPT voltage range(V) |
250-400 |
||||
Recommend input work voltage(V) |
310 |
||||
Max. input current(A) |
3 |
4 |
5 |
5 |
7 |
Max. MPPT efficiency |
97% |
||||
Input road |
1 |
||||
Max, drive motor power(KW) |
0.37 |
0.55 |
0.75 |
1.1 |
1.5 |
Rated output voltage(V) |
220V 3 phase or 1 phase |
||||
Output frequency |
0~50/60Hz |
||||
Max. system efficiency |
98% |
||||
Operating temperature range |
from-10℃ to +40℃ |
||||
Cooling method |
Natural cooling + air cooling |
||||
Display |
LCD |
||||
Altitude |
1000m,above 1000m need decrease power 1000m |
||||
Meet the standards |
EN 50178; IEC/EN 62109-1; IEC 61800 |
||||

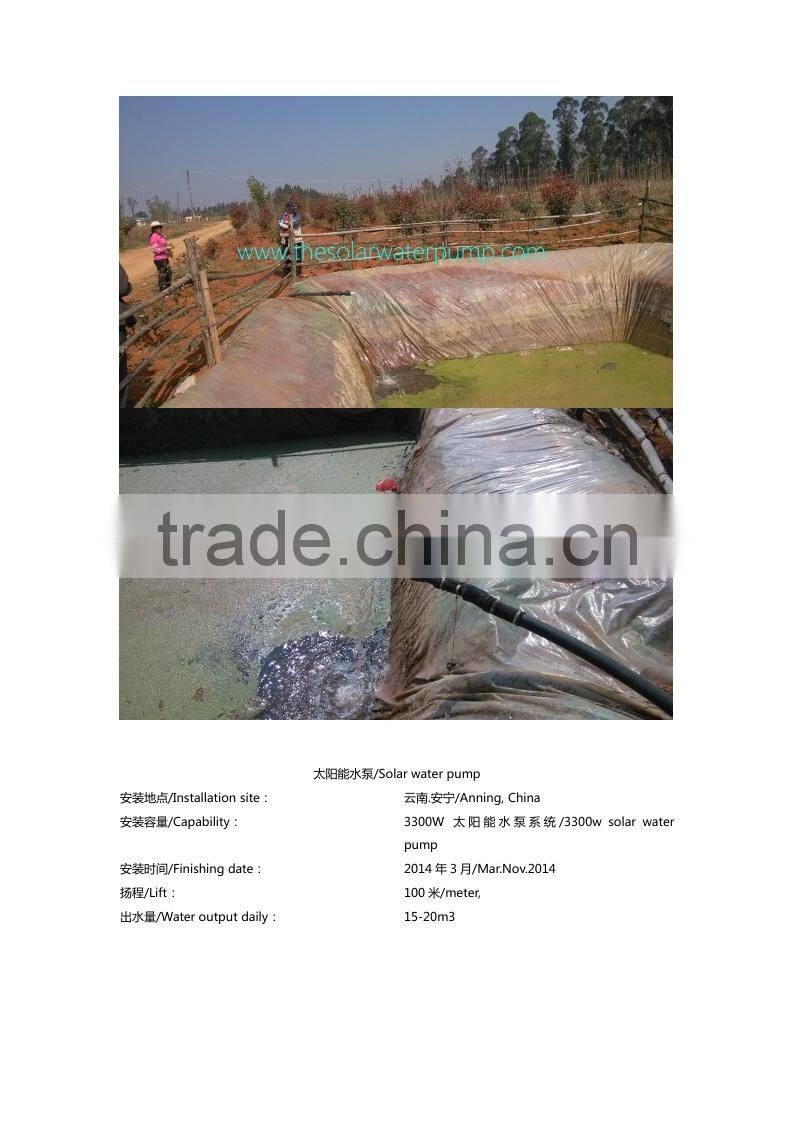

YUNNAN YAOCHUANG ENERGY DEVELOPMENT CO., LTD. is a professional solar water pump system integrator, has own work shop manufacture solar panels, inverters, and controllers. We offer 370W - 50KW solar water pump systems for agriculture & home use. Over 10 years experience makes us confident of supplying you the best suitable solar water pump system to replace driver pump by electricity or diesel engine.
Solar Water pump Advantage:
1) No area limited, even in none power supply village
2) Economical power supply system, perpetual energy source
3) Environment protection, no noise
4) Easy application, convenient & efficient
5) Operating with solar panel or battery
Any question about solar water pump system or solar inverter, please do not hesitate to contact us:)
