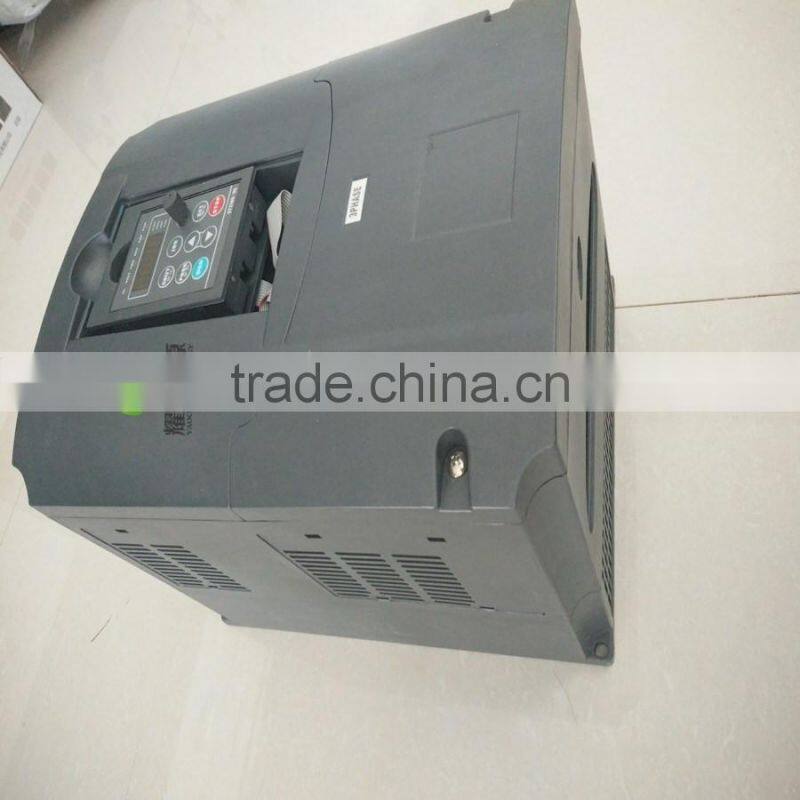

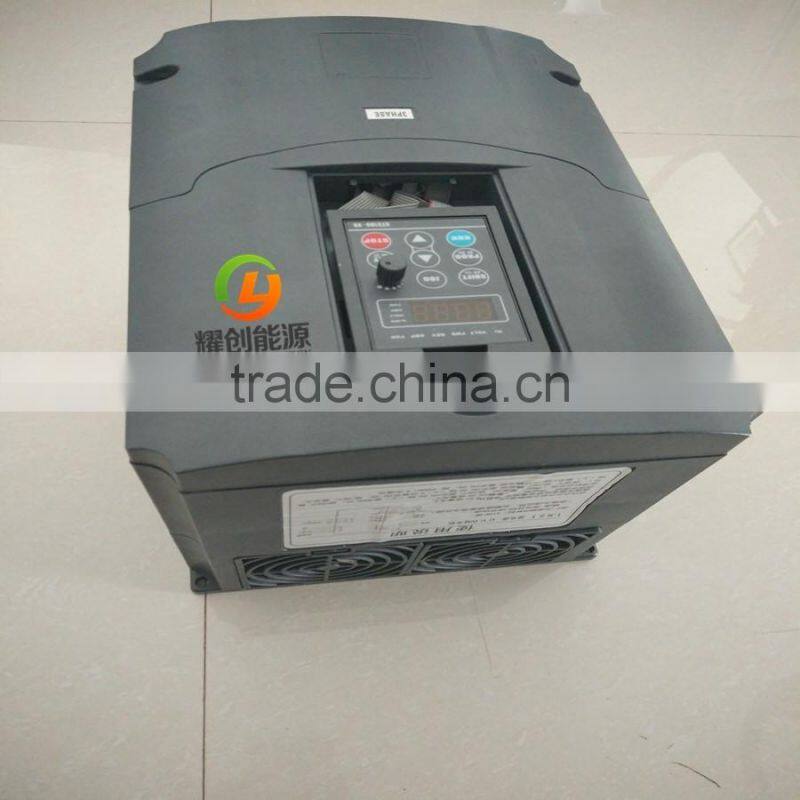

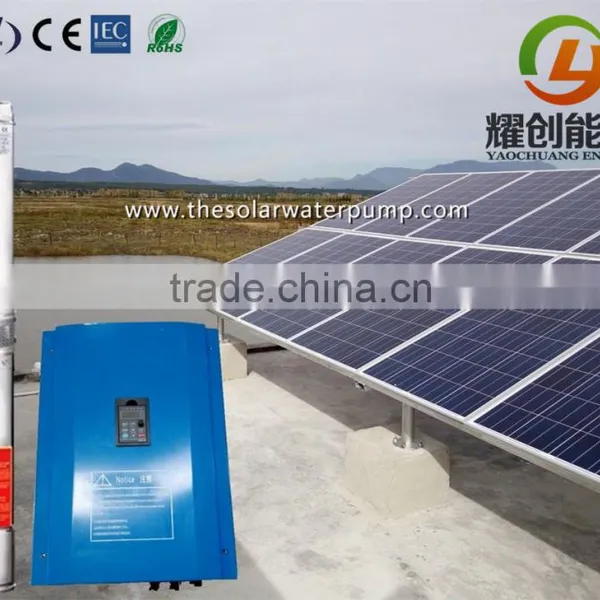

YAOCHUANG Three Phase AC Solar Water Pump Inverter With MPPT
US$ 499 - 699
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
YAOCHUANG
Model Number:
Yaochuang Inverter
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Solar Water Pump Pure Sine Wave InverterUS$ 200 - 380MOQ: 1 Piece -
Power Inverter dc Change to AC for Offering ElecticityUS$ 200 - 380MOQ: 1 Piece
-
Solar InverterUS$ 110 - 110MOQ: 10 Sets
-
Rated Flow Discharge 30m3/h System Voltage 300-750V DC MPPT Controller Solar Water Pump Irrigation SystemUS$ 3,990 - 4,980MOQ: 1 Set
-
Solar Inverter for Solar Water Pump System, 7.5KW 380V Three Phase Solar Water Pump InverterUS$ 5,000 - 6,250MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
YAOCHUANG
Model Number
Yaochuang Inverter
Specification
Normal
Output Voltage (V)
110/120/220/230V
Load Power (W)
Ordinary
Solar Power (W)
ordinary
Work Time (h)
24 Hours
YAOCHUANG three phase AC solar water pump inverter with MPPT
Function of solar water pump inverter:

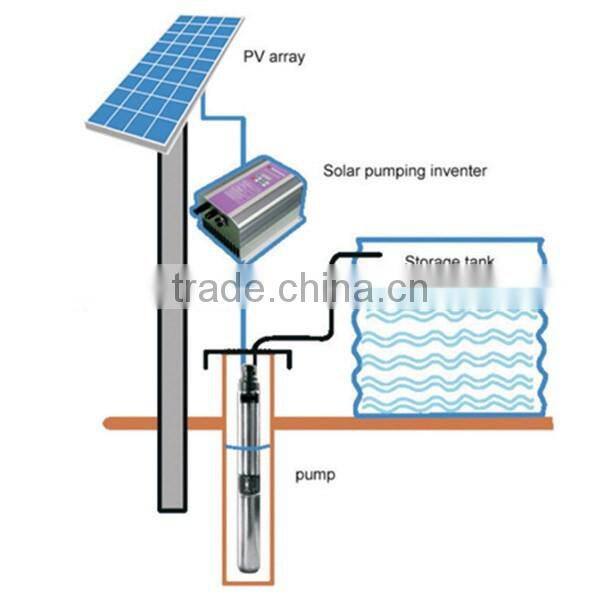

The solar water pump system is composed of solar pump inverter, 3 phase AC pump, and solar array. The solar array is composed of many solar cells panels in series and in parallel, and absorbs irradiation from Sunlight, and converts into electrical energy (DC). Inverter controls and regulates pumping operation system and converts DC voltage from PV modules to AC to drive the AC pump, with the function of MPPT and it regulates the output frequency according to irradiation in actual time to achieve the maximum power. The AC pump driven by a 3 phase induction motor, draws water from well or rivers and lakes, then water reserved on tank/ponds for irrigation systems or other applications. Based on the requirements and installation conditions, different types of pumps will be required.
Performance data of solar water pump inverter
Single phase 220V
| Model | YCSBS2PH040 | YCSBS2PH075 | YCSBS2PH11 | YCSBS2PH15 | YCSBS2PH22 |
| Rated capacity(KW) | 0.4 | 0.75 | 1.1 | 1.5 | 2.2 |
| Max. input voltage(V) | 450 | ||||
| MPPT voltage range(V) | 250-400 | ||||
| Recommend input work voltage(V) | 310 | ||||
| Max. input current(A) | 3 | 5 | 7 | 6 | 9 |
| Max. MPPT efficiency | 97% | ||||
| Recommend pv array power(kw) | 0.7 | 1.0 | 1.4 | 2.0 | 2.7 |
| Input road | 1 | ||||
| Max, drive motor power(kw) | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 |
| Rated output voltage(V) | 220V 3 phase or 1 phase | ||||
| Output frequency | 0~50/60Hz | ||||
| Max. system efficiency | 98% | ||||
| Operating temperature range | from-10℃ to +40℃ | ||||
| Cooling method | Natural cooling + air cooling | ||||
| Display | LCD | ||||
| Altitude | 1000m,above 1000m need derate power 1000m | ||||
| Meet the standards | EN 50178; IEC/EN 62109-1; IEC 61800 | ||||
Three phase 380V
| Model | YCSBH3PH15 | YCSBH3PH22 | YCSBH3PH30 | YCSBH3PH37 | YCSBH3PH55 | YCSBH3PH75 | YCSBH3PH110 |
| Rated capacity(KW) | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 |
| Max. input voltage(V) | 800 | ||||||
| MPPT voltage range(V) | 300-750 | ||||||
| Recommend input work voltage(V) | 560 | ||||||
| Max. input current(A) | 4 | 6 | 8 | 11 | 15 | 21 | 28 |
| Max. MPPT efficiency | 97% | ||||||
| Recommend pv array power(kw) | 1.7 | 2.3 | 3.3 | 4.5 | 6.0 | 8.3 | 11.3 |
| Input road | 2 | ||||||
| Max, drive motor power(kw) | 1.1 | 1.5 | 2.2 | 3 | 4 | 5.5 | 7.5 |
| Rated output voltage(V) | 380V 3 phase | ||||||
| Output frequency | 0~50/60Hz | ||||||
| Max. system efficiency | 98% | ||||||
| Operating temperature range | from-10℃ to +40℃ | ||||||
| Cooling method | Natural cooling + air cooling | ||||||
| Display | LCD | ||||||
| Altitude | 1000m,above 1000m need derate power 1000m | ||||||
| Meet the standards | EN 50178; IEC/EN 62109-1; IEC 61800 | ||||||
| Model | YCSBH3PH110 | YCSBH3PH150 | YCSBH3PH180 | YCSBH3PH220 | YCSBH3PH300 | YCSBH3PH350 | YCSBH3PH450 |
| Rated capacity(KW) | 11 | 15 | 18 | 22 | 30 | 35 | 45 |
| Max. input voltage(V) | 800 | ||||||
| MPPT voltage range(V) | 300-750 | ||||||
| Recommend input work voltage(V) | 560 | ||||||
| Max. input current(A) | 35 | 41 | 56 | 69 | 83 | 113 | 139 |
| Max. MPPT efficiency | 97% | ||||||
| Recommend pv array power(kw) | 13.8 | 16.5 | 22.5 | 27.8 | 33.0 | 45.0 | 55.5 |
| Input road | 2 | ||||||
| Max, drive motor power(kw) | 9.2 | 11 | 15 | 18.5 | 22 | 30 | 37 |
| Rated output voltage(V) | 380V 3 phase | ||||||
| Output frequency | 0~50/60Hz | ||||||
| Max. system efficiency | 98% | ||||||
| Operating temperature range | from-10℃ to +40℃ | ||||||
| Cooling method | Natural cooling + air cooling | ||||||
| Display | LCD | ||||||
| Altitude | 1000m,above 1000m need derate power 1000m | ||||||
| Meet the standards | EN 50178; IEC/EN 62109-1; IEC 61800 | ||||||
