YUNNAN YAOCHUANG ENERGY DEVELOPMENT CO.,LTD. works on solar power system over 10 years, owns a professional product engineer team, and foreign sale team, it is a legal exporting company, our mission is offering high quality products and perfect service for customers all over the world.

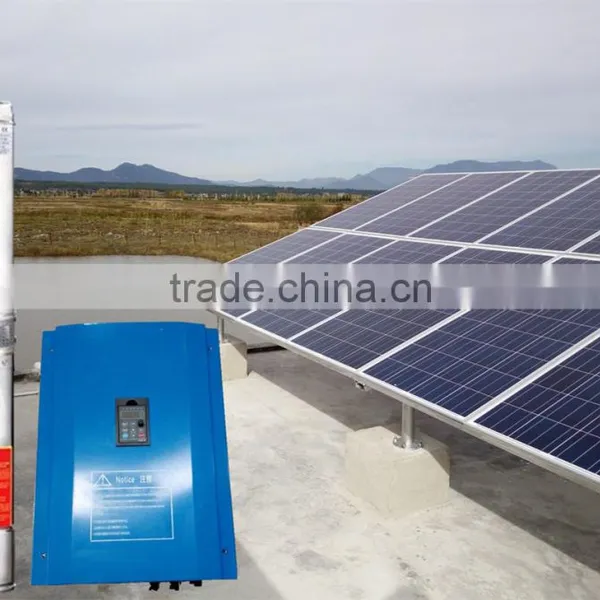

Rated flow discharge 30m3/h system voltage 300-750V DC MPPT controller solar water pump irrigation system

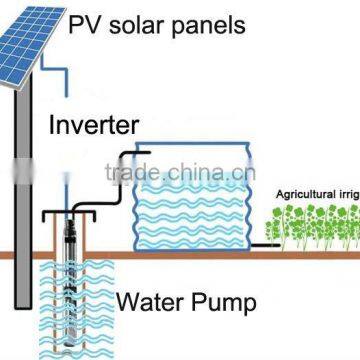

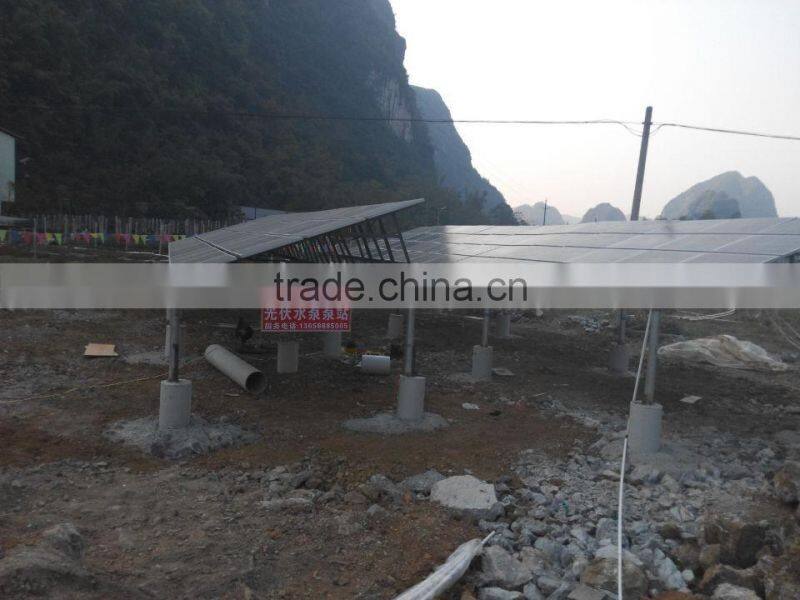

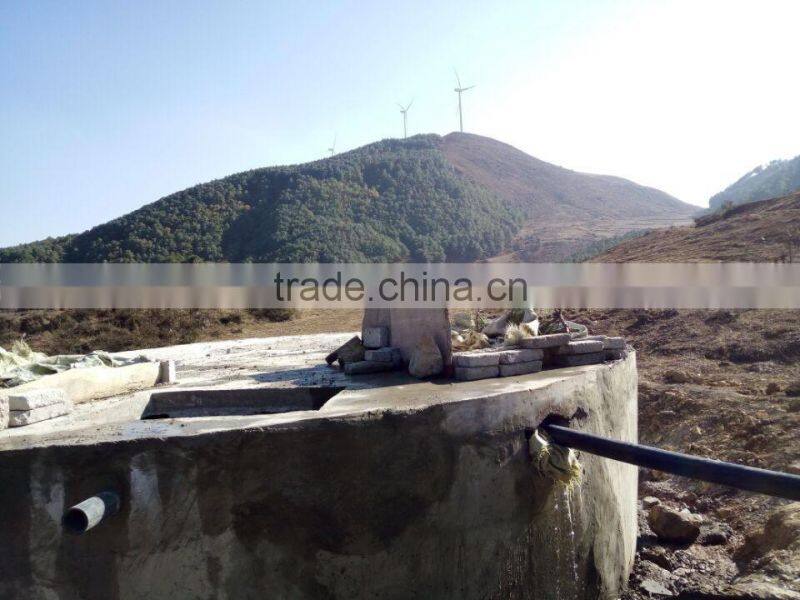

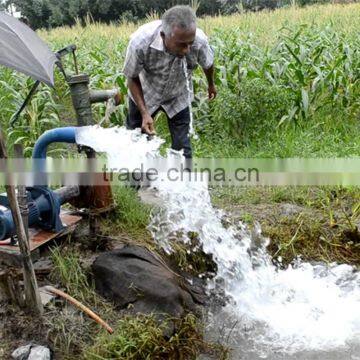

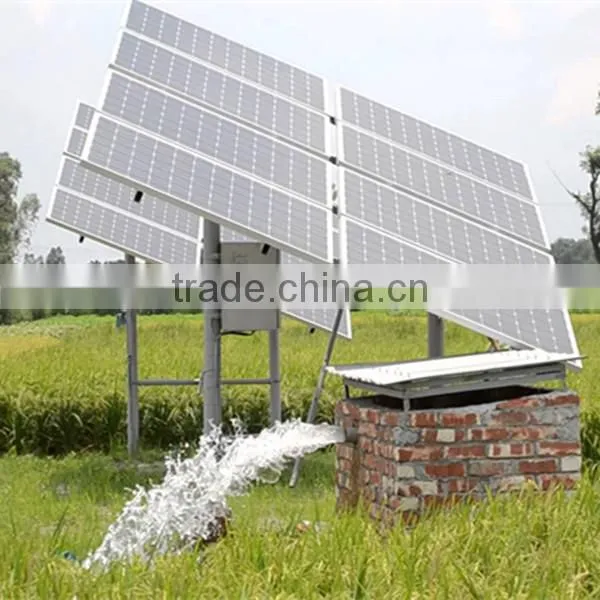

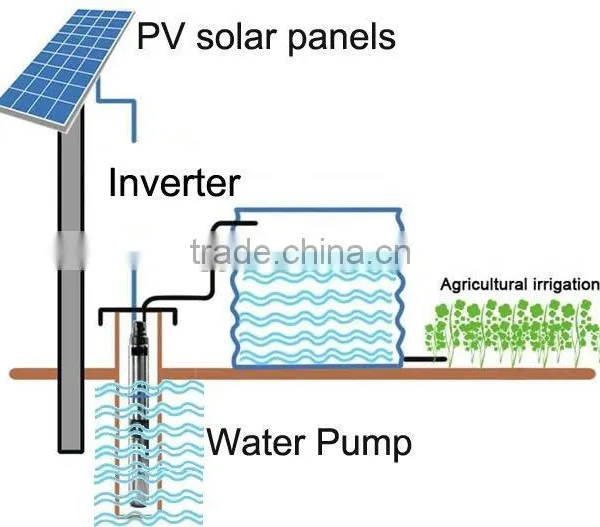

Solar water pump system is widely used for sea water desalination system, desert controlling, daily life water supplying, agricultural irrigation, forest irrigation, waterscape, and water treatment project. It is one-time investment, and get over 25 years free charge application, and highly popular in area where lacking of electricity, and having large farmlands.

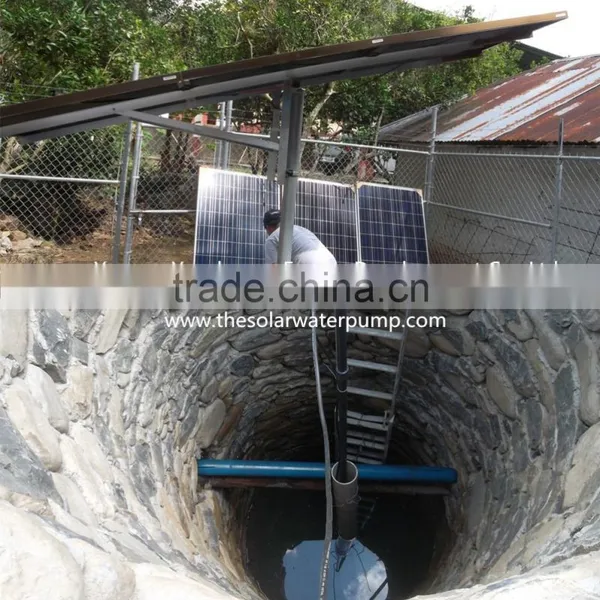

YAOCHUANG ENERGY devotes to solar energy water pumping project from 2006, and offers surface & submersible solar water pump system solution for agriculture irrigation & livestock water supply.
Model | Power | Three phase current | Flow rate/head lift(m3/h)/m | Pump length (mm) | Outlet | |||
HP | KW | A | ||||||
6SP30-2 | 3 | 2.2 | 5.8 | 18m3/20m | 30m3/15m | 36m3/11m | 473 | 76mm 3" |
6SP30-3 | 4 | 3 | 7.1 | 18m3/30m | 30m3/23m | 36m3/16m | 567 | |
6SP30-4 | 5.5 | 4 | 9.3 | 18m3/40m | 30m3/30m | 36m3/22m | 661 | |
6SP30-6 | 7.5 | 5.5 | 13 | 18m3/59m | 30m3/46m | 36m3/33m | 849 | |
6SP30-8 | 10 | 7.5 | 17 | 18m3/79m | 30m3/61m | 36m3/44m | 1037 | |
6SP30-10 | 12.5 | 9.2 | 20.2 | 18m3/98m | 30m3/76m | 36m3/55m | 1229 | |
6SP30-13 | 15 | 11 | 23.6 | 18m3/127m | 30m3/99m | 36m3/72m | 1517 | |
6SP30-17 | 20 | 15 | 31.8 | 18m3/167m | 30m3/129m | 36m3/94m | 1901 | |
6SP30-20 | 25 | 18.5 | 38.2 | 18m3/196m | 30m3/150m | 36m3/110m | 2189 | |
6SP30-21 | 25 | 18.5 | 38.2 | 18m3/206m | 30m3/159m | 36m3/116m | 2285 | |
6SP30-24 | 30 | 22 | 45.2 | 18m3/240m | 30m3/182m | 36m3/132m | 2573 | |
6SP30-26 | 30 | 22 | 45.2 | 18m3/255m | 30m3/197m | 36m3/143m | 2765 | |
6SP30-30 | 34 | 25 | 53.5 | 18m3/298m | 30m3/228m | 36m3/165m | 3149 | |
6SP30-33 | 40 | 30 | 61.6 | 18m3/323m | 30m3/250m | 36m3/182m | 3437 | |
6SP30-35 | 40 | 30 | 61.6 | 18m3/343m | 30m3/265m | 36m3/193m | 3629 | |

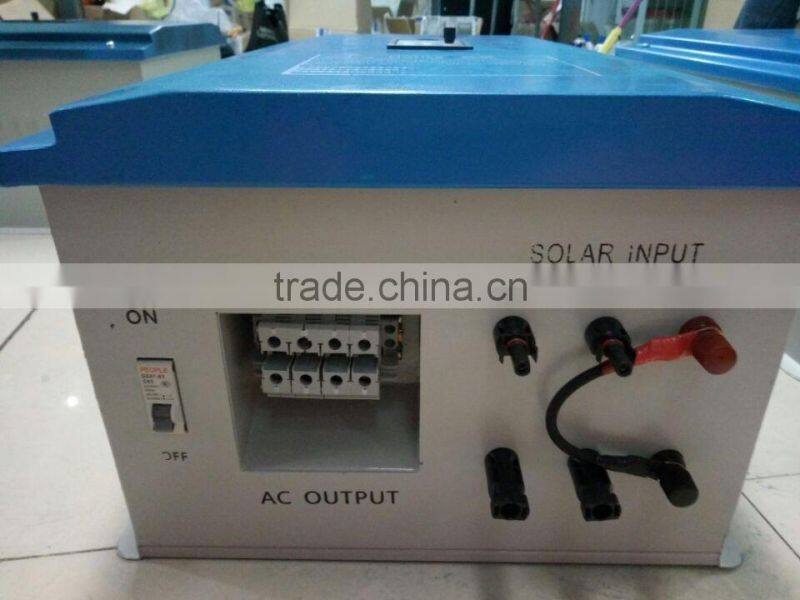

For 5.5KW solar water pump, better choose 5.5KW or 7.5KW solar water pump controller inverter
Model | YCSBH3PH55 | YCSBH3PH75 |
Rated output power(KW) | 5.5 | 7.5 |
Max. input voltage(V) | 800 | |
MPPT voltage range(V) | 300-750 | |
Recommend input work voltage(V) | 560 | |
Max. input current(A) | 15 | 21 |
Max. MPPT efficiency | 97% | |
Input road | 2 | |
Rated output voltage(V) | 380V 3 phase | |
Output frequency | 0~50/60Hz | |
Max. system efficiency | 98% | |
Operating temperature range | from-10℃ to +40℃ | |
Cooling method | Natural cooling + air cooling | |
Display | LCD | |
Elevation | <1000m | |
Meet the standards | EN 50178; IEC/EN 62109-1; IEC 61800 | |

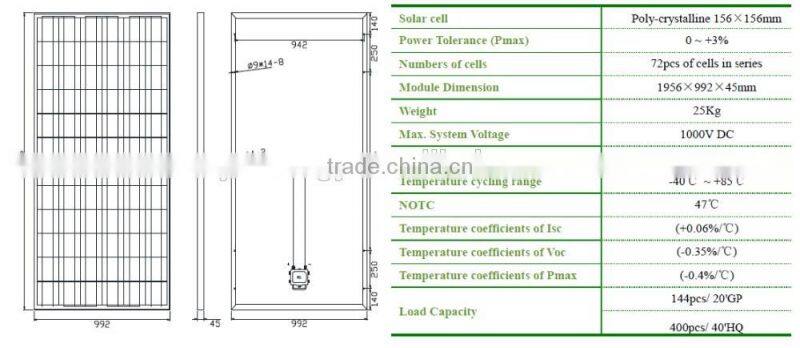

300Wp solar panel 30PCS
Why using solar energy to instead of diesel generator?
- No conventional grid electricity required
- Long operating life
- Highly reliable and durable
- Easy to operate and maintain
- Eco-friendly
- Saving of conventional fuels

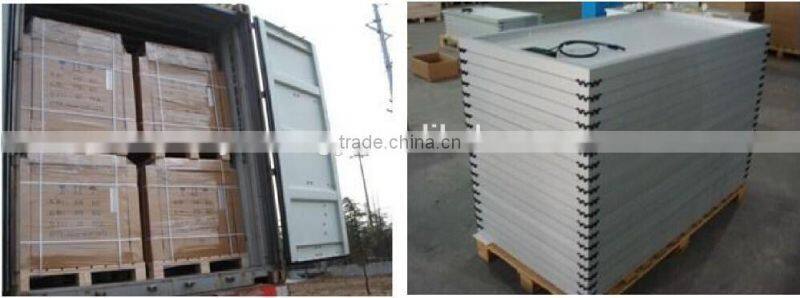

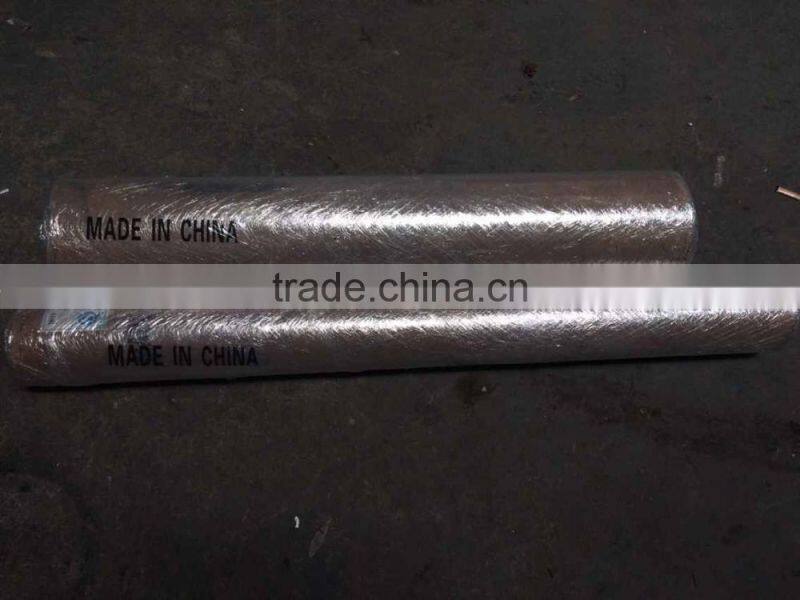

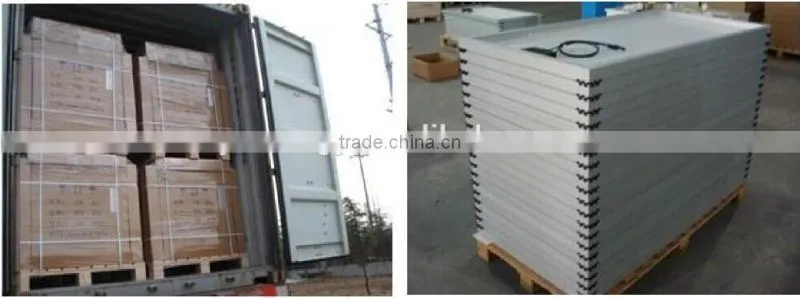

Carton and wood standard export package

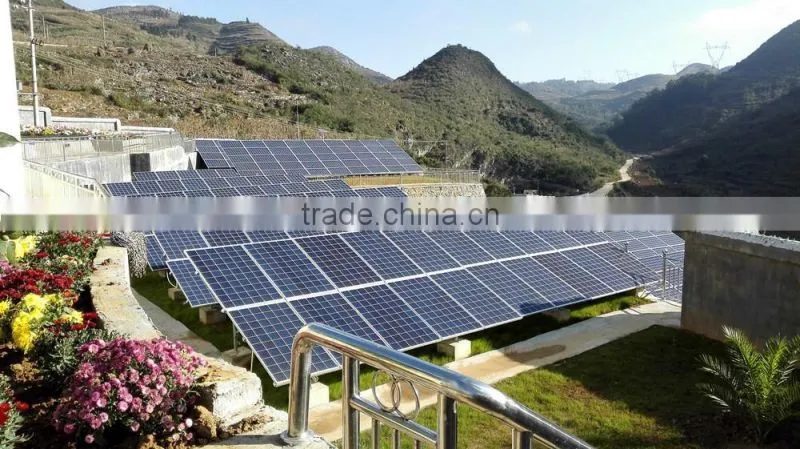

YAOCHUANG ENERGY provide and install
solar water pump system
solar street light system
off grid solar generator system
on grid solar generator system
solar power plant
How to order a suitable solar water pump system from YAOCHUANG ENERGY?
It is very simple!!!!
Firstly, please contact us via "Contact Supplier" or "Chat Now", you will be guided by professional sale engineer to choose suitable solar water pump system.
Secondly, we provide formal quotation and layout design base on your demand.
Thirdly, sign contract, and arrange international shipping, installation service
