Specifications

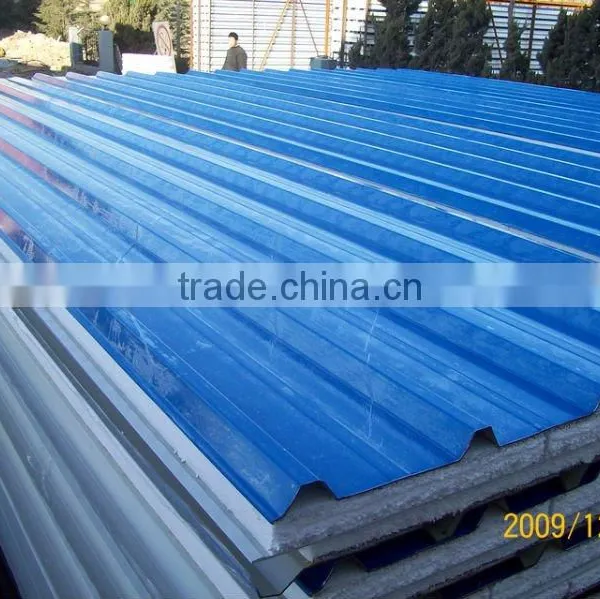

High quality color steel sandwich panel for roof is a kind of economic building material made of color steel sheet and insulatioHigh quality color steel sandwich panel for roof
1.Fiber glass sandwich panel
It is a kind of economic building material made of color steel sheet and fiber glass.
Characteristics:
Light weight
Nonflammable
Rot proof
Anti-moth
Could be easily installed
Good warm proof and heat transfer resistance
Specification:
Width of panels | 930mm |
Galvanized steel sheet thickness | 0.3-0.6mm |
Total thickness | 50mm-150mm |
Lengths of panels | customized |
Resistances of heat-transfer process | 0.028-0.033w/m.k |
density | 60Kg/m3 |
2.Rock wool sandwich panel
It is made of color steel sheet and rock wool warm proof, could be widely used in scavenged project (pharmaceutical/ biologic/ electronic), ship-craft, food-stuff, air-condition, factory, boiler room, floors, activity room, factory, refrigeration house, facility room, office-separation, indoor noise-absorption and so on.
Characteristics:
Fire-proof
Good warm proof and heat transfer resistance
Good bend & compression resistance
High bearing capacity
Flexibility in fixing
Specification:
Galvanized steel sheet thickness | 0.4-0.6mm |
Total thickness | 50mm-150mm |
Width of panels | 930mm |
Lengths of panels | customized |
Specific gravities | 10.2-17.7Kg/m2 |
Resistances of heat-transfer process | ≤0.044w/m.k |
Sound deadening | 21.5db |
Limits of fire resistance | Gread A incombustible |
density | 40-120Kg/m3 |
Water absorption for 24 hours | ≤5% |
Average diameter of filament | ≤7um |
Organic materials | ≤4.5% |
3.Polyurethane(PU)sandwich panel
It is widely used in ship-craft, vehicle, and building and refrigeration room; air conditioned warm keeping, decoration and other fields.
Characteristics:
Light weight
High strength
High bearing capacity
Easy and quick installation
Low water-absorbing capacity
Good bend & compression resistance
Specification:
Width of panels | 930mm/1000mm |
Galvanized steel sheet thickness | 0.45-0.6mm |
Total thickness | 50mm-150mm |
Lengths of panels | customized |
Specific gravities | ≥40Kg/m2 |
Resistances of heat-transfer process | ≤0.023w/m.k |
Sound deadening | 21.5db |
Limits of fire resistance | ≥220Kpa |
density | 40-120Kg/m3 |
Water absorption for 24 hours | ≤5% |
4.Polystyrene (EPS) sandwich panel
Characteristics:
Light weight
Low water absorption
Good warm proof and heat transfer resistance
Could be used in low temperature environment
Width of panels | 930mm/1000mm |
Galvanized steel sheet thickness | 0.35-0.6mm |
Total thickness | 50mm-150mm |
Lengths of panels | customized |
Resistances of heat-transfer process | 0.03-0.04w/m.k |
density | 8-12Kg/m3 |
Profiled Steel Plate
Profiled steel plate is made of color painted steel plate, whose various types are all cold bended by rolling and is applicable in industrial and civil building, warehouse, specific building, roof of large scale steel structure, wall surface, indoor/ outdoor wall decoration and so on.
Characteristics:
Light weight
High strength
Easy and quick installation
Antiknock
Ire-proof
Long life span
Free of maintenance
Specification:
Width of panels | 760mm/820mm/840mm/860mm/900mm |
Galvanized steel sheet thickness | 0.3-0.6mm |
Galvanized amount | 80-120g/m2 |
Color | Customized |
Lengths of panels | customized |
