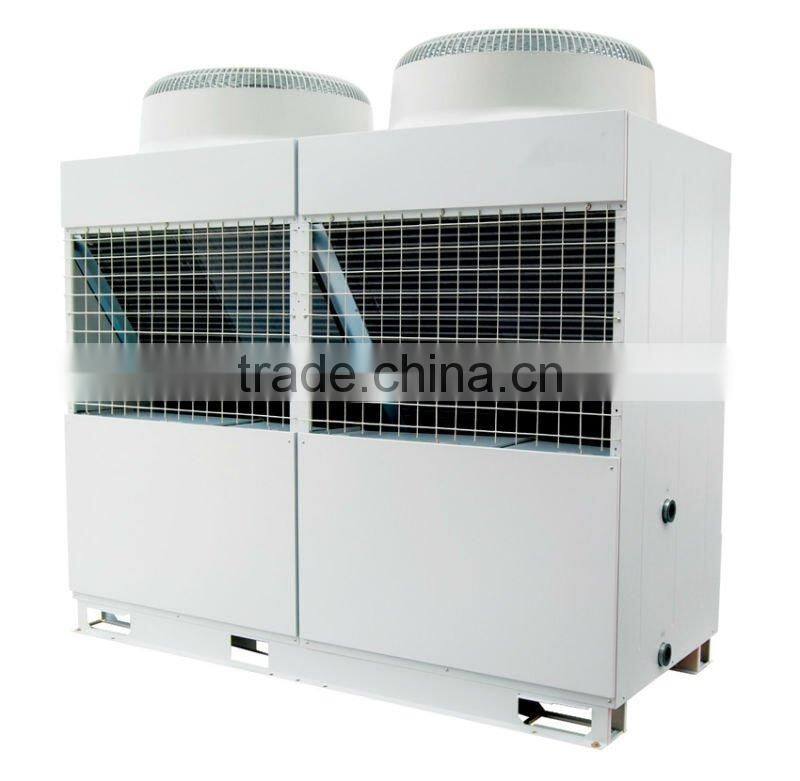

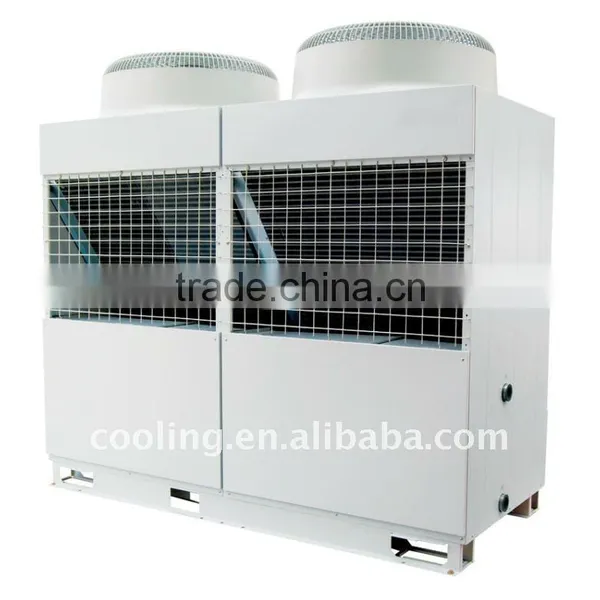

Air Cooled Heat Pump Module Unit Pool Heat Pump,heat Pump Moudel Unit
US$ 1 - 2,000
MOQ: 50 Sets
Key Specifications
Get Latest Price
Type:
Other, solar
Pressure:
Pressurized
Circulation Type:
Direct / Open Loop (Active)
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fan Coil Unit,fan Coil,air CoilUS$ 1 - 2,000MOQ: 50 Sets -
Heating Recovery Water Heater ,heating Recovery Heat Pump,heat Recovery Water HeaterUS$ 1 - 2,000MOQ: 50 Sets
-
Air Water Heat Pump Heat Recovery ,Energy Saving Water Heater,heat Recovery CompressorUS$ 1 - 2,000MOQ: 50 Sets
-
Air Handing Unit ,fan Coil Unit,air Treating UnitUS$ 1 - 2,000MOQ: 50 Sets
-
Water Source Heat Pump Water Heater,compressor Heat Pump Water Heater,compressor Water HeaterUS$ 1 - 2,000MOQ: 50 Sets
Type
Other, solar
Pressure
Pressurized
Circulation Type
Direct / Open Loop (Active)
Heating System
Thermosyphon (Passive)
Connection Type
Split
Installation
Wall Mounted
Housing Material
Stainless Steel
Certification
CB, CE, CSA, EMC, EMF, GS, LFGB, Other, SASO, UL, UR, CB, CE, CSA, EMC, EMF, GS, LFGB, RoHS, SASO, UL, UR
Capacity
18000
Place of Origin
Shanghai, China
Brand Name
YUAO
Model Number
YA330-HB
Specifications
air cooled heat pump module unit pool heat pump,heat pump moudel unit,heating pump,low ambient temperature heat puair cooled heat pump module unit pool heat pump,heat pump moudel unit
swimming heat pump ,industrial heat pump,heat pump inverter heat pump ,heating pump,high temperature heat pump commercial water source ,heating pump,low ambient temperature heat pump
air source heat pump for low temperature,ductless heat pump,ground source heat pump to water,air water heat pump ,solar powered heat pumps, duct solar air source heat pumpsolar water source heat pump ,solar water heat pump, solar heat pump,geothermal water source ,to water heat pump, water heat pump,air water
inverter heat pump,DCinverter heat pum water heater,DCinverter heat pump water heater
solar heat pump, solar air-conditioner,air heat pump water heater,water pump solar,air-conditioner,Hybrid Solar airconditioner,cooling unit,mix solar air cooling and heat pump,solar air conditioner
| YAAC Air cooled heat pump module unit | |||||||||||
| Model NO | 220HB | 330HB | 440HB | 550HB | 660HB | 770HB | 880HB | 990HB | 1100HB | ||
| 220CB | 330CB | 440CB | 550CB | 660CB | 770CB | 880CB | 990CB | 1100CB | |||
| rated cooling capacity | Kw | 65 | 98 | 130 | 163 | 196 | 228 | 261 | 294 | 326 | |
| Rated heating capacity | kW | 69 | 103 | 138 | 172 | 206 | 241 | 275 | 309 | 344 | |
| Rated cooling input power | kW | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | |
| Rated heating input power | kW | 19.5 | 29 | 39 | 48.5 | 58 | 68 | 77.5 | 87 | 97.0 | |
| Eletric supply | 380V/3N-/50HZ | ||||||||||
| hose size | 2-DN50 flange | 4-DN50 flange | 6-DN50 flange | 8-DN50 flange | |||||||
| Nosie level | dB(A) | 65 | 65 | 67 | 67 | 67 | 68 | 68 | 68 | 69 | |
| Net weight | kg | 810 | 890 | 1620 | 1700 | 1780 | 2510 | 2590 | 2670 | 3400 | |
| Dimenstion | L mm | 2380 | 2380 | 2380 | 2380 | 2380 | 2380 | 2380 | 2380 | 2380 | |
| W mm | 1030 | 1030 | 2060 | 2060 | 2060 | 3090 | 3090 | 3090 | 4120 | ||
| H mm | 2139 | 2139 | 2139 | 2139 | 2139 | 2139 | 2139 | 2139 | 2139 | ||
| Model NO | 1210HB | 1320HB | 1430HB | 1540HB | 1650HB | 1760HB | 1870HB | 1980HB | |||
| 1210CB | 1320CB | 1430CB | 1540CB | 1650CB | 1760CB | 1870CB | 1980CB | ||||
| Rated cooling capacity | kW | 359 | 392 | 424 | 457 | 490 | 522 | 559 | 588 | ||
| Rated heating capacity | kW | 378 | 412 | 447 | 481 | 515 | 550 | 584 | 618 | ||
| Rated cooling input power | kW | 110 | 120 | 130 | 140 | 150 | 160 | 170 | 180 | ||
| Rated heating input power | kW | 106.5 | 116 | 126 | 135.5 | 145 | 155 | 164.5 | 174 | ||
| Eletric supply | 380V/3N-/50HZ | ||||||||||
| hose size | 8-DN50 flange | 10-DN50 flange | 12-DN50 flange | ||||||||
| Nosie level | dB(A) | 69 | 69 | 69.5 | 69.5 | 69.5 | 70 | 70 | 70 | ||
| Net weight | kg | 3480 | 3560 | 4290 | 4370 | 4450 | 5180 | 5260 | 5360 | ||
| Dimenstion | L mm | 2380 | 2380 | 2380 | 2380 | 2380 | 2380 | 2380 | 2380 | ||
| W mm | 4120 | 4120 | 5150 | 5150 | 5150 | 6180 | 6180 | 6180 | |||
| H mm | 2139 | 2139 | 2139 | 2139 | 2139 | 2139 | 2139 | 2139 | |||
| specification | |||||||||||
| 1.Nominal cooling capacity work conditioning water inlet/out let 12°C/7°C, ambient temperature 35°C. | |||||||||||
| 2.Nominal heating capacity work conditioning water inlet/out let 40°C/45°C, ambient temperature 7°C. | |||||||||||
| 3.The data follw improving and changes as design. | |||||||||||
....
