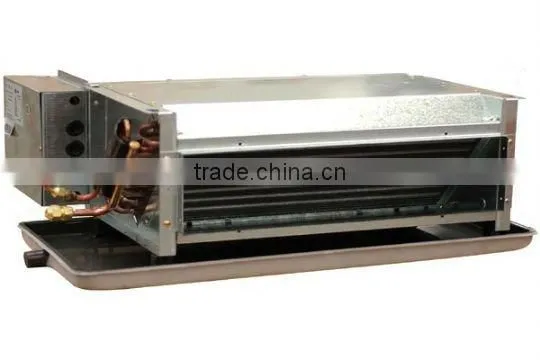

Fan Coil Unit,fan Coil,air Coil
US$ 1 - 2,000
MOQ: 50 Sets
Key Specifications
Get Latest Price
Type:
Other, solar
Pressure:
Pressurized
Circulation Type:
Direct / Open Loop (Active)
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heating Recovery Water Heater ,heating Recovery Heat Pump,heat Recovery Water HeaterUS$ 1 - 2,000MOQ: 50 Sets -
Air Water Heat Pump Heat Recovery ,Energy Saving Water Heater,heat Recovery CompressorUS$ 1 - 2,000MOQ: 50 Sets
-
Air Handing Unit ,fan Coil Unit,air Treating UnitUS$ 1 - 2,000MOQ: 50 Sets
-
Water Source Heat Pump Water Heater,compressor Heat Pump Water Heater,compressor Water HeaterUS$ 1 - 2,000MOQ: 50 Sets
-
Water Magnetic ThermostatUS$ 1 - 20,000MOQ: 100 Sets
Type
Other, solar
Pressure
Pressurized
Circulation Type
Direct / Open Loop (Active)
Heating System
Thermosyphon (Passive)
Connection Type
Split
Installation
Wall Mounted
Housing Material
Stainless Steel
Certification
CB, CE, CSA, EMC, EMF, GS, LFGB, Other, SASO, UL, UR, CB, CE, CSA, EMC, EMF, GS, LFGB, RoHS, SASO, UL, UR
Capacity
18000
Place of Origin
Shanghai, China
Brand Name
YUAO
Model Number
YA330-HB
fan coil unit,fan coil,air coil
air cooled heat pump module unit pool heat pump,heat pump moudel unit
swimming heat pump ,industrial heat pump,heat pump inverter heat pump ,heating pump,high temperature heat pump commercial water source ,heating pump,low ambient temperature heat pump
air source heat pump for low temperature,ductless heat pump,ground source heat pump to water,air water heat pump ,solar powered heat pumps, duct solar air source heat pumpsolar water source heat pump ,solar water heat pump, solar heat pump,geothermal water source ,to water heat pump, water heat pump,air water
inverter heat pump,DCinverter heat pum water heater,DCinverter heat pump water heater
solar heat pump, solar air-conditioner,air heat pump water heater,water pump solar,air-conditioner,Hybrid Solar airconditioner,cooling unit,mix solar air cooling and heat pump,solar air conditioner
| YAFC fan coil unit series | |||||||||||
| technical parameter | model NO | 34HC | 51HC | 68HC | 85HC | 102HC | 136HC | 170HC | 204HC | 238HC | |
| rated air volume (m3/h) | high speed | 340 | 510 | 680 | 850 | 1020 | 1360 | 1700 | 2040 | 2380 | |
| mediate speed | 260 | 390 | 520 | 650 | 780 | 1040 | 1290 | 1580 | 1820 | ||
| low speed | 180 | 270 | 360 | 450 | 530 | 710 | 80 | 1060 | 1240 | ||
| rated cooling capacity (W) | high speed | 1800 | 2700 | 3600 | 4500 | 5400 | 7200 | 9000 | 10800 | 12600 | |
| mediate speed | 1620 | 2450 | 3240 | 4050 | 4850 | 6480 | 7980 | 9580 | 11200 | ||
| low speed | 1430 | 1990 | 2650 | 3220 | 3820 | 5140 | 6400 | 7480 | 8960 | ||
| rated heating capacity (W) | high speed | 2700 | 4050 | 5400 | 6750 | 8100 | 10800 | 13500 | 16200 | 18900 | |
| mediate speed | 2450 | 3680 | 4860 | 6120 | 7275 | 9980 | 11960 | 14200 | 16520 | ||
| low speed | 2160 | 3240 | 4300 | 5200 | 6400 | 8600 | 9200 | 10800 | 12960 | ||
| air outlet Static pressure (pa) | low Static pressure | 12 pa | |||||||||
| high Static pressure | 30/50pa | ||||||||||
| motor | input power (W) | 12Pa | 34 | 41 | 59 | 73 | 91 | 118 | 146 | 182 | 216 |
| 30Pa | 41 | 54 | 65 | 82 | 98 | 132 | 168 | 206 | 247 | ||
| 50Pa | 45 | 58 | 76 | 89 | 110 | 165 | 195 | 228 | 273 | ||
| unit weight(kg) | horizontal type mm | 15 | 17 | 19 | 27 | 30 | 32 | 38 | 45 | 50 | |
| vertical type mm | 18 | 20 | 23 | 29 | 33 | 34 | 41 | 49 | 58 | ||
| specification | |||||||||||
| 1. Parameters in the form are messured in the rated working state acording toGB/T19409-2003 standard work conditioning | |||||||||||
| 2.Cooling work conditioning :Cooling capacity according to air inlet temperature 27°Cdb,19.5°Cwb and cooling water let/outlet temperature 7°C/12°C standardization . | |||||||||||
| 3.heating work conditioning heating work conditioning :air inlet temperature 21°Cdb, water let/outlet temperature 60°C . | |||||||||||
| 4.Noise messured conditioning : The distance 1 meter test in anechoic laboratory. | |||||||||||
...
