Specifications
1.Material: Ceramic fiber paper2.Function: fire-resistance
3.Thickness:1;2;3;4;5;6mm
4.Temperature Type:1260,1360,1430

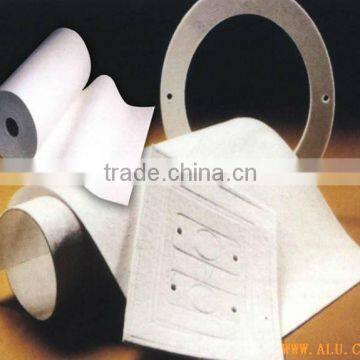

Ceramic Fiber Paper (JX-TXP)
JX-TXP is made of high purity ceramic fiber and a spot of chosen bonding agent which will be burnt during usage. It is used as the high temperature heat insulation material in the industrial furnaces, as the sealing gasket in molten metal field, as heat insulation for exhaust tubes in automobile industry.
Specification Temp (°C) |
1260 |
1360 |
1430 |
|
Density (kg/m3) |
200±15 |
200±15 |
200±15 |
|
Organic Matter Content (%) |
6-8 |
6-8 |
6-8 |
|
|
Average Temperature Thermal Conductivity (w/m.k) (Density128Kg /m3) |
200°C |
0.075-0.085 |
||
400°C |
0.115-0.121 |
|||
600°C |
0.165-0.175 |
|||
Chemical Composition (%) |
Al2O3 + SiO2 |
Al2O3 + SiO2 |
Al2O3 + SiO2+ ZrO2 |
|
Packaging |
Carton |
|||
Standard Specification(mm) |
600000 x 610/1220 x 1, 300000 x 610/1220 x 2, 200000 x 610/1220 x 3, 150000 x 610/1220 x 4, 120000 x 610/1220 x 5, 100000 x 610/1220 x 6 |
|||
