Specifications
pipe storage rack system1.pipe outer dia 27.5-28mm
2. outer coating: PE
3.application: flow rack,worktable,et
Plastic coated lean tube/pipe:
| Details of lean tube | |
| Material: | Extruded plastic coating (Outside ) + Galvanized Steel tube (Inner) |
| External diameter: | 27.5mm- 28.0mm |
| Thickness of steel tube wall: | 0.8mm ,1.0mm,1.2 mm,1.5mm,1.8mm, 2.0mm (Note: 1.0mm is common used,other thickness is MOQ required) |
| Color: | Common used color: Beige /Ivory /Black (Other color can be customized with MOQ required) |
| Standard length: | 4000mm per piece |
| Application: | Applied to assemble carton flow rack,handcart, storage shelving, pipe racking system, logistics container, pipe joint system. |
| package: | 10pcs per bundle |
Load capacity for pipe 1.0mm

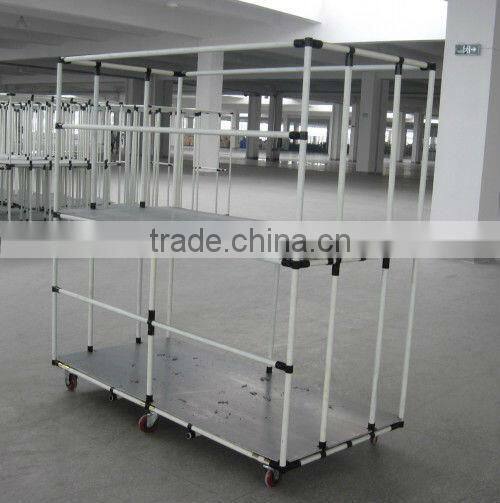

Application cases for lean tube: Typical use in worktable,flow rack,handcart,poster rack etc. and other diy products freely design by yourself.
Packing and loading of lean tube:
Lean tube /pipe metal joints for reference:
Payment & Shipping Terms
Port : Shanghai
Packing : Wrapped with film
Minimum Order Quantity :2000m
Delivery time : 5~~7days
Payment terms : T/T
Supply ability : 5000 per day
Detailed Product Description
Plastic coated pipe. The pipe is the welding steel tube. To prevent coating seperate from steel pipe, we use special adhesive.
Plastic coated pipe is a range of reusable steel tubes and rapid assembly connecting joints, brackets, roller tracks, parts and accessories, which not only enables you to design and build a wide range of applications and solutions, but can also be integrated into a Lean Manufacturing or Kaizen environment.
Lean tube solutions are simple to design, quick to assemble and completely reusable. These can be used for storage, material handling, assembly manufacturing and distribution.
The advantage of our lean tube:
1. We are the manufacturer which makes the price competitive.
2. We use the environmentally friendly materials and reduce the cost
3. Variety of color is available. Customers can select the color freely.
4. Rust inhibitor is applied to inner surface of the plastic coated pipe for extended service life.
5. At normal temperature condition, the PE outside cant be dissolved in any kind of solution. Concentrated sulfuric acid and concentrated nitric acid just can relieve.
