Help CenterCE Certificated Geocell Production Line 20khz 15khz Taiwan Generator Alluminum Welding Moulds
Related Products
-
Semi-Auto GEOCELL Production Line 15khz 20khz 2800W 3400W CE MarkNegotiableMOQ: 1 Set -
Plastic Welding Machine PE Welder PVC Welder Geomembrane Welding MachineUS$ 800 - 800MOQ: 1 Set
-
Plastic Welding Machine Geomembrane Welder Hot Wedge Welder NCT 800US$ 800 - 800MOQ: 1 Set
-
Hot Wedge WelderUS$ 800 - 800MOQ: 1 Set
-
HDPE Geocell Machine Geoweb ProductionUS$ 20,000 - 90,000MOQ: 1 Set
MODEL NO. |
JWM-11 |
JWM-14 |
JWM-18 |
JWM-22 |
No.of welding heads |
11 units |
14 units |
18units |
22 units |
Max. Power |
46.2KW |
58.8KW |
75.6KW |
KW |
Each Ultrasonic Transducer Power |
2800W or 3400W |
|||
Each Ultrasonic Server Power |
2800W or 3400W |
|||
Ultrasonic Viberation Frequency |
15KHZ or 20KHZ |
|||
Air compressor power |
15Kw/h |
|||
Welding distance scope |
300mm-1000mm |
|||
Geocell strips width |
50mm-200mm |
|||
Daily output ( reference) |
1000sqm |
1300sqm |
1600sqm |
2000sqm |
Size of the equipment |
10.5m (L) x 2.1m ( W) x 1.8m (H) |
|||
Weightness |
7-8 tons |
|||

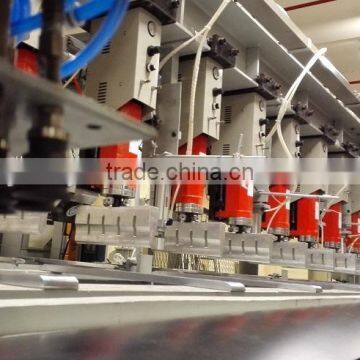

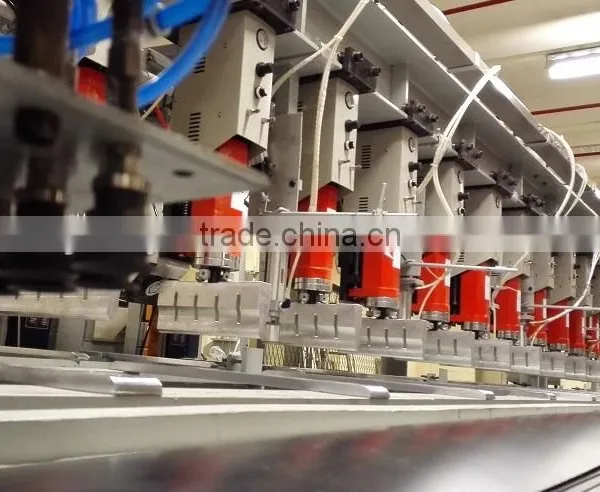

Our ULTRASONIC WELDING EQUIPMENT is designed specially for PE (polyethylene) Geocell production which can improve the working efficiency compared with single instrument welding. It is a combination of multiple ultrasonic welding machines by adopting the imported the PLC control system and several patent design automatic feeding and alining system thus realizing the automatic operation by ONE worker only, easy working and self mal-operation protection and mistake warning functions. Our equipment is with most advance technology and humanized design and superior quality in China., The main characteristics are:
+ High quality 3 years duration import generators, high efficiency transducers, and most effective designed alloy alluminum welding moulds equipped
+Touching screen in parameter setting for each welding instrument
+Easy working menu
+Convenient altitudinal Adjustable for each welding heads
+Newly designed enlargement electric circuit with stronger power and durable Transducer
+20khz frequency tremendously reduce the working noise
Send Inquiry to This Supplier
