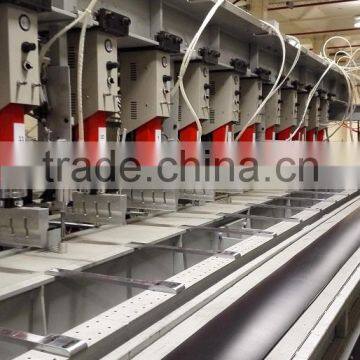

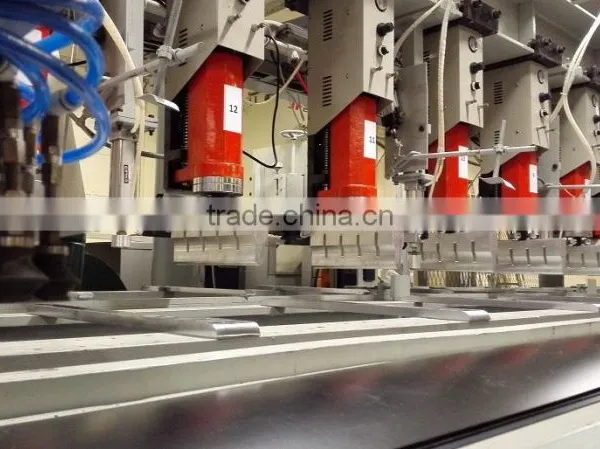

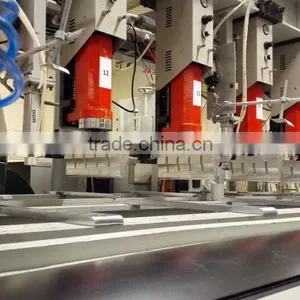

Our ULTRASONIC WELDING EQUIPMENT is designed specially for PE (polyethylene) Geocell production which can improve the working efficiency compared with single instrument welding. It is a combination of multiple ultrasonic welding machines by adopting the imported the PLC control system thus realizing the automatic operation by two workers only, easy working and self mal-operation protection and mistake warning functions. Our equipment is with most advance technology and humanized design and superior quality in China.,
The main characteristics are:

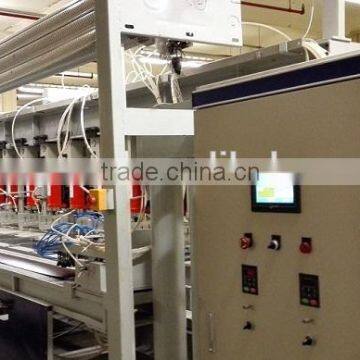

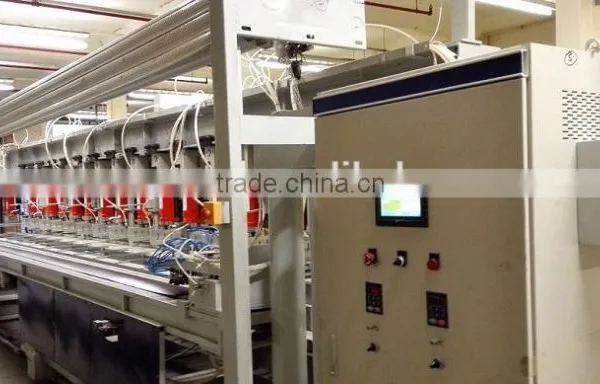

Touching screen demonstration in main server box
Touching screen in parameter setting for each welding instrument
Easy working menu with customer preferred language choice
Convenient altitudinal Adjustable for each welding heads
Newly designed enlargement electric circuit with stronger power and durable transducer
Ultrasonic Frequency Automatic Tracing reducing troubles in running.
MODEl |
JWM-11 |
JWM-14 |
JWM-18 |
JWM-22 |
SIZE OF THE EQUIPMENT (L*W*H)(M) |
6.5*1.89*2.26 |
7*1.89*2.26 |
8*1.89*2.26 |
9*1.89*2.26 |
WEIGHTNESS |
5TONS |
5.5TONGS |
6TONS |
6.5TONS |
POWER |
AC380V N 50HZ |
|||
AIR PRESS |
0.5~0.7MPa |
|||
AIR COMPESSOR DISPLACEMENT |
≥2.5~3.0/min |
|||
VOLOUM OF AIR COMPRESSOR AIR STORAGE |
1.5~2.0M3 |
1.5~2.0M3 |
2.0~2.5M3 |
2.5~3.0M3 |
WELDING DISTANCE SCOPE |
220-1000MM |
|||
GEOCELL STRIP WIDTH |
220MM MAX (ADJUSTABLE ACCORDING TO THE SIZE OF WELDING HEAD) |
|||
DAILY OUTPUT (REF) |
1500SQM |
1800SQM |
2200SQM |
3000SQM |
