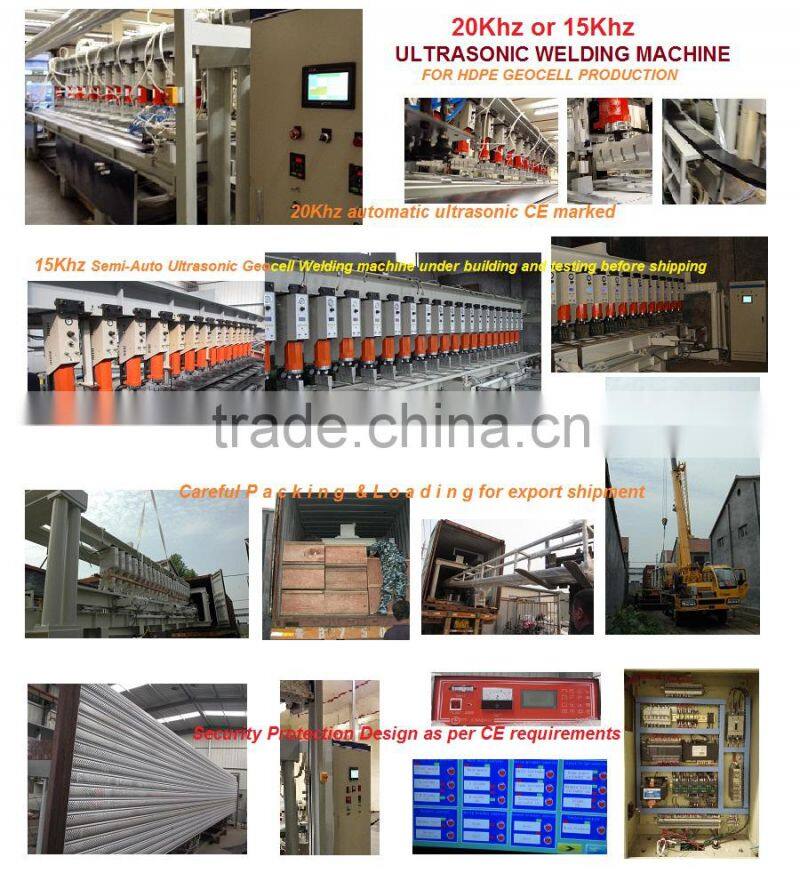

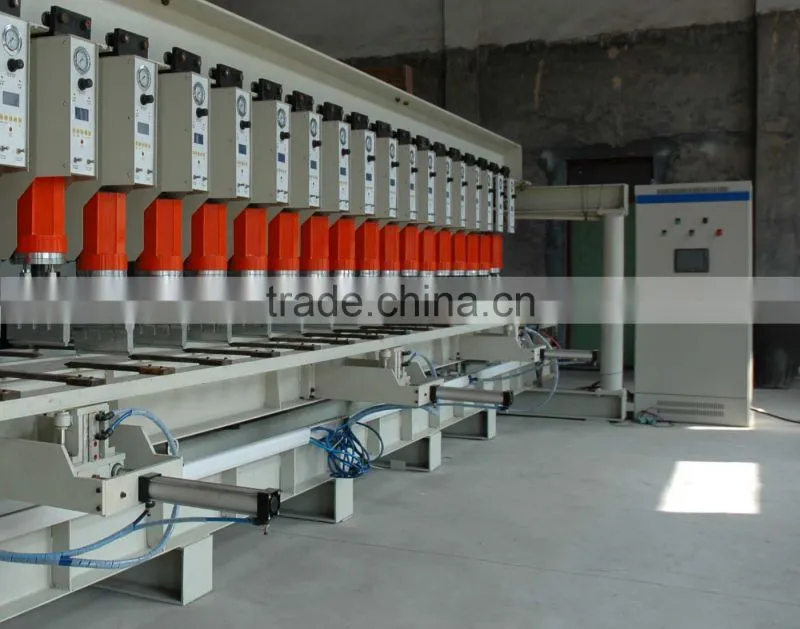

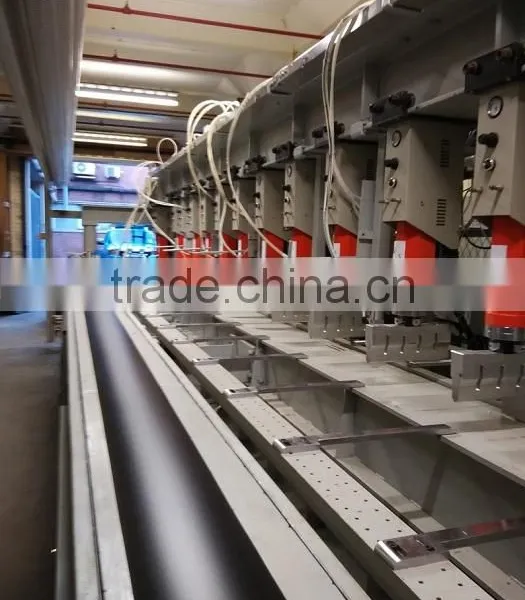

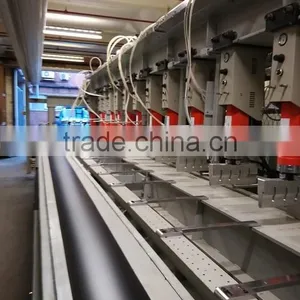

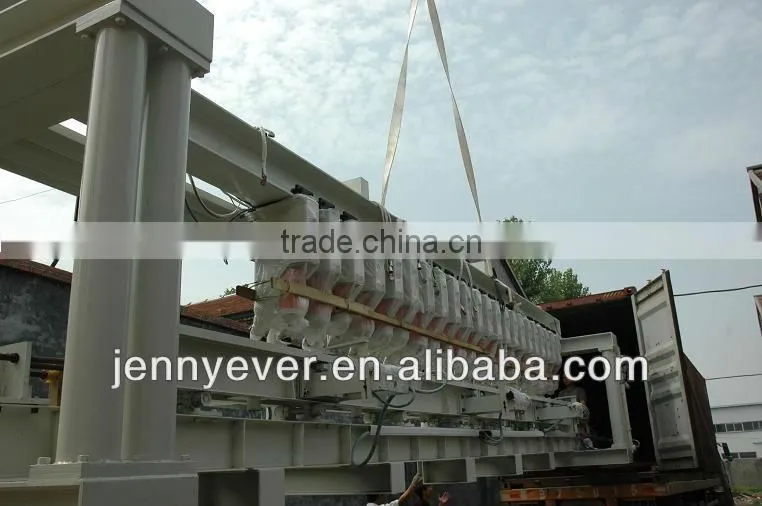

The NCT series ULTRASONIC WELDING EQUIPMENT is designed specially for PE (polyethylene) Geocell production which can improve the working efficiency compared with single instrument welding. It is a combination of multiple ultrasonic welding machines by adopting the imported the PLC control system thus realizing the automatic operation by two workers only, easy working and self mal-operation protection and mistake warning functions. Our equipment is with most advance technology and humanized design and superior quality in China., The main characteristics are:

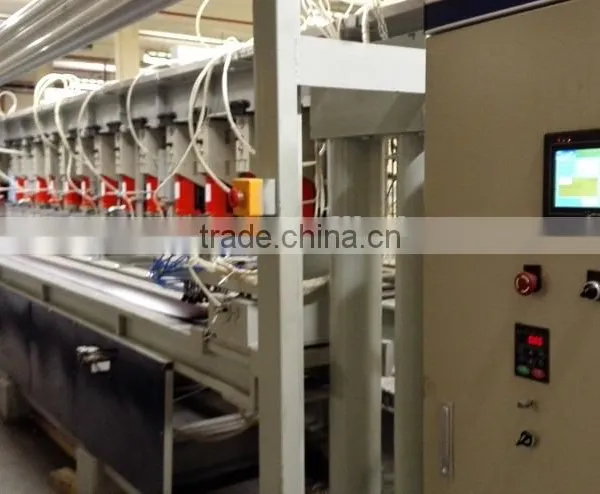

* Touching screen demonstration in main server box
* Touching screen in parameter setting for each welding instrument
* Easy working menu
* Convenient altitudinal Adjustable for each welding heads
* Newly designed enlargement electric circuit with stronger power and durable Transducer

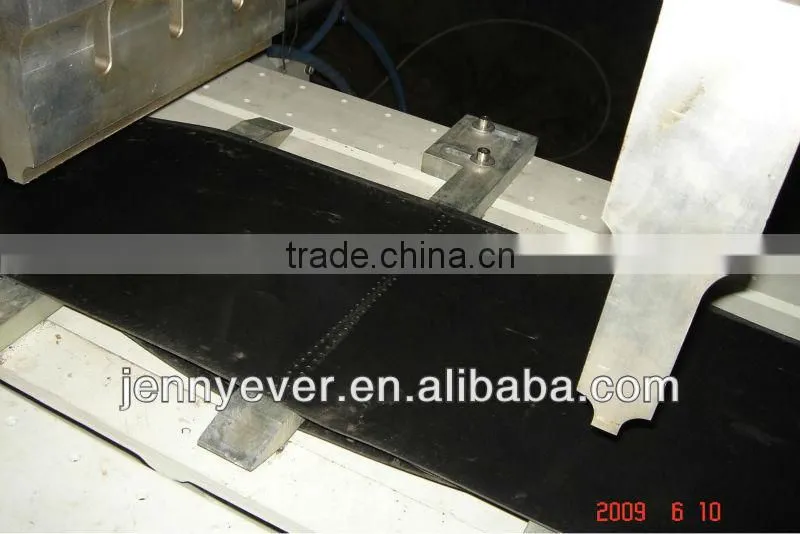

* High quality alloy-alluminum welding mouds suitable for 5cm, 10cm,15cm,20cm,25cm and 30cm height geocell available
MODEL NO. | NCT-2000-11 | NCT-2000-14 | NCT-2000-18 | NCT-2000-24 |
No.of welding moulds | 11 units | 14 units | 18units | 24 units |
Max. Power | 46.2KW | 58.8KW | 50.4KW | 100.8KW |
Each Ultrasonic Transducer Power | 4200W | |||
Each Ultrasonic Server Power | 4200W | |||
Ultrasonic Viberation Frequency | 15KHZ | |||
Air compressor power | 15Kw/h | |||
Welding distance scope | 300mm-1000mm | |||
Geocell strips width | 300mm Max. (adjustable according to the size of the welding heads) | |||
Daily output ( reference) | 3500sqm | 4000sqm | 4500sqm | 6000sqm |
Size of the equipment | 10.5m (L) x 2.1m ( W) x 1.8m (H) | |||
Weightness | 7-10tons | |||

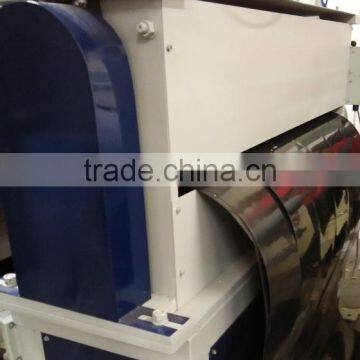

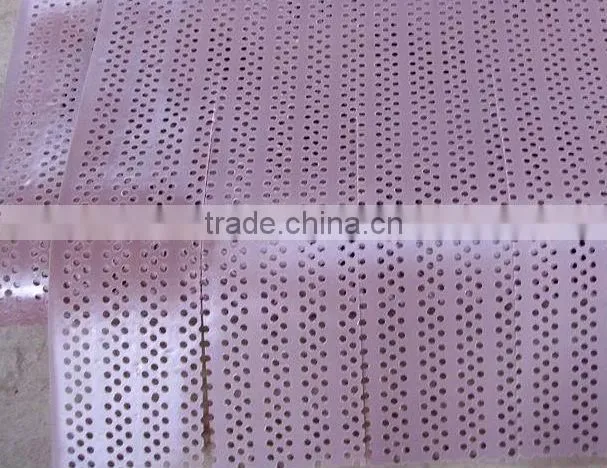

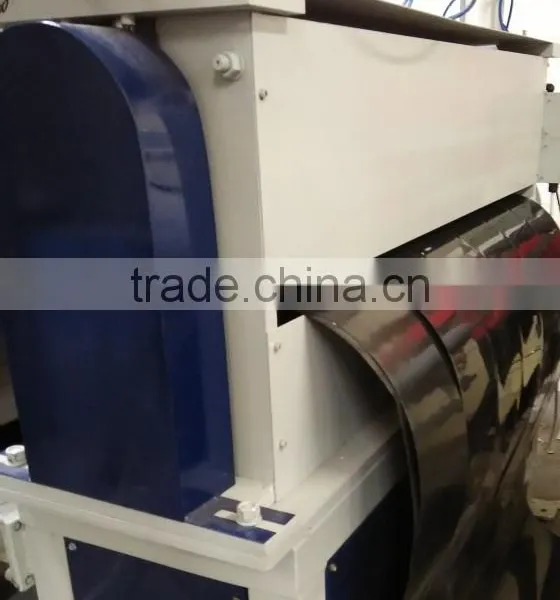

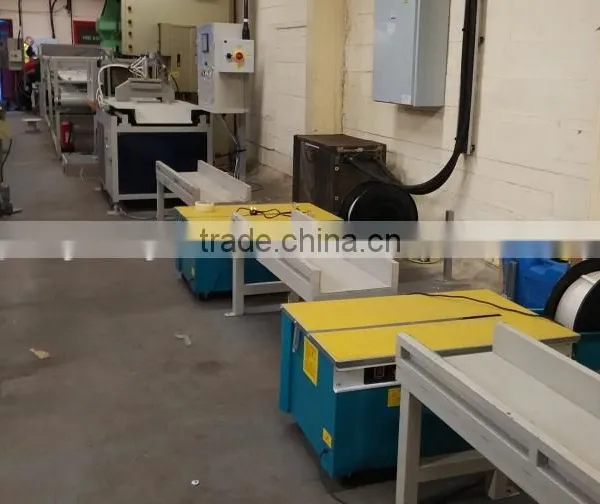

Matching PE extrusion machine for producing perforated or non-perforated PE strips are also avaible. For details, please contact us.
