Specifications
designed specially for PE (polyethylene) Geocell production which can improve the working efficiencyThe NCT series ULTRASONIC WELDING EQUIPMENT is designed specially for PE (polyethylene) Geocell production which can improve the working efficiency compared with single instrument welding. It is a combination of multiple ultrasonic welding machines by adopting the imported the PLC control system thus realizing the automatic operation by two workers only, easy working and self mal-operation protection and mistake warning functions. Our equipment is with most advance technology and humanized design and superior quality in China., The main characteristics are:

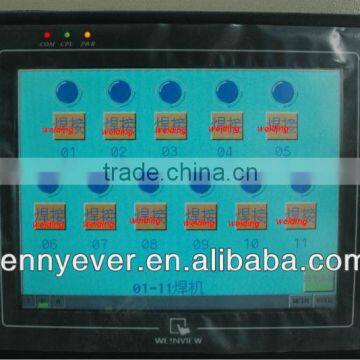

* Touching screen demonstration in main server box
* Touching screen in parameter setting for each welding instrument
* Easy working menu
* Convenient altitudinal Adjustable for each welding heads
* Newly designed enlargement electric circuit with stronger power and durable Transducer
* High quality alloy-alluminum welding mouds suitable for 5cm, 10cm,15cm,20cm,25cm and 30cm height geocell available
MODEL NO. | NCT-2000-11 | NCT-2000-14 | NCT-2000-18 | NCT-2000-24 |
No.of welding moulds | 11 units | 14 units | 18units | 24 units |
Max. Power | 46.2KW | 58.8KW | 50.4KW | 100.8KW |
Each Ultrasonic Transducer Power | 4200W | |||
Each Ultrasonic Server Power | 4200W | |||
Ultrasonic Viberation Frequency | 15KHZ | |||
Air compressor power | 15Kw/h | |||
Welding distance scope | 300mm-1000mm | |||
Geocell strips width | 300mm Max. (adjustable according to the size of the welding heads) | |||
Daily output ( reference) | 3500sqm | 4000sqm | 4500sqm | 6000sqm |
Size of the equipment | 10.5m (L) x 2.1m ( W) x 1.8m (H) | |||
Weightness | 7-10tons | |||
Matching PE extrusion machine for producing perforated or non-perforated PE strips are also avaible. For details, please contact us.
