Home > Construction & Decoration > Wire Mesh > Stainless Steel Wire Mesh > High Quality Bar Grating

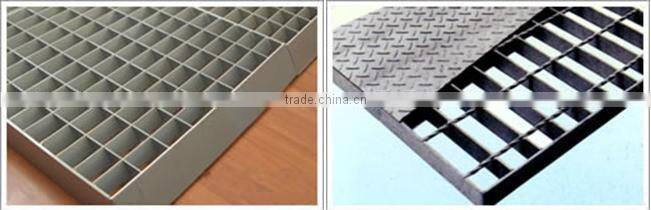

High Quality Bar Grating

Name: High Quality Bar Grating
Brand: Honsen
SKU: 141951664
Availability: InStock

US$ 10 - 35 MOQ: 300 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Hebei, China

Material:

Black Wire Mesh

Type:

Welded Mesh

Contact Supplier Request Quote Chat Now

Anping Hongsheng Wire Mesh Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Hebei, China

Material Black Wire Mesh

Type Welded Mesh

Application Protecting Mesh

Weave Style Plain Weave

Wire Diameter 20mm-50mm

Technique Welded Mesh

Model Number HSwm1720

Brand Name Honsen

Specifications

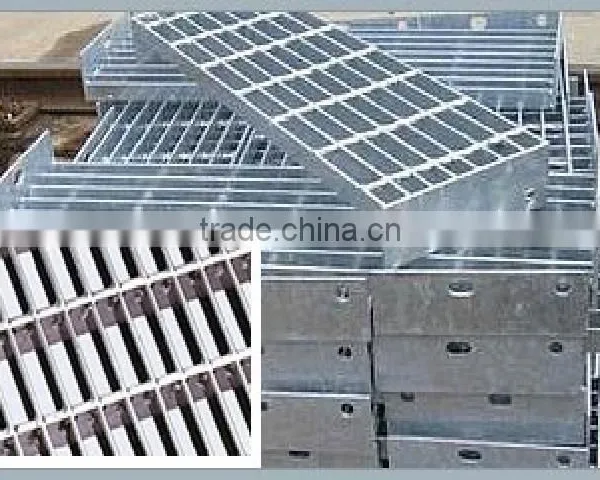

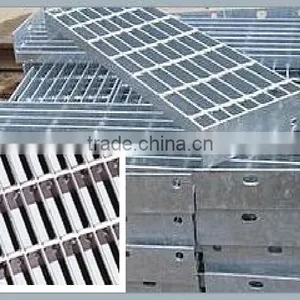

Bar Grating
1.width:2', 3' or 4'
2.length:20 ft. or 24 ft
3.It is also ideal for use as mezzanine decking

Bar Grating

application:

Welded Steel Bar Grating is the most popular of all grating types due to its strength, cost-efficient production and ease of installation. Universally used in most general industrial plants as well as commercial buildings, it has wide applications as walkways, platforms, safety barriers, drainage covers and ventilation grates.

characteristic:

Welded steel bar grating is resistance welded to create a rugged, one-piece constructed panel. The bearing bars are automatically resistance welded at the contact point with the cross bars and, under a combination of high heat and pressure, are fused together to form a permanent joint. The cross bars provide a high degree of rigidity, yet retain a smooth flat surface for free and easy walking.
Standard panels are available in widths of 2', 3' or 4', length of 20' or 24'.

The specific specification are available at customer's requirement.

Series	Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar load(width×thickness)
Series	Pitch of Bearing bar	Cross-bar Pitch	20×3	25×3	32×3	40×3	20×5	25×5
1	30	100	G203/30/100	G253/30/100	G323/30/100	G403/30/100	G205/30/100	G255/30/100
1	30	50	G203/30/50	G253/30/50	G323/30/50	G403/30/50	G205/30/50	G255/30/50
2	40	100	G203/40/100	G253/40/100	G323/40/100	G403/40/100	G205/40/100	G255/40/100
2	40	50	G203/40/50	G253/40/50	G323/40/50	G403/40/50	G205/40/50	G255/40/50
3	60	50		G253/60/50	G253/60/50	G403/60/50	G205/60/50	G255/60/50
Series	Pitch of Bearing bar	Cross-bar Pitch	Specification of bearing bar load(width×thickness)
Series	Pitch of Bearing bar	Cross-bar Pitch	32×5	40×5	45×5	50×5	55×5	60×5
1	30	100	G325/30/100	G405/30/100	G455/30/100	G505/30/100	G555/30/100	G605/30/100
1	30	50	G325/30/50	G405/30/50	G455/30/50	G505/30/50	G555/30/50	G605/30/50
2	40	100	G325/40/100	G405/40/100	G455/40/100	G505/40/100	G555/40/100	G605/40/100
2	40	50	G325/40/50	G405/40/50	G455/40/50	G505/40/50	G555/40/50	G605/40/50
3	60	50	G325/60/50	G405/60/50	G455/60/50	G505/60/50	G555/60/50	G605/60/50
