Bar grating (factory)
- 20 Ton / Tons per Month
- Tianjin
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | Honsen | |
| Model Number | HSwm-5105 | Material | Steel |
Product Description
Specifications
Steel grating(14 years factory)1,ISO9001&14001
2,Opening:30x100mm;40X100mm
3,Bar:25X3mm
4,Material:gal steel/stainless stee
Steel grating(14 years factory)
Standard type: 1m×6m(special sizes or American standard sizes available).
Material: Carbon Steel.
Surface Treatment: Hot-dipped Galvanized or black.
Appearance of Surface: Plain or Serrated.

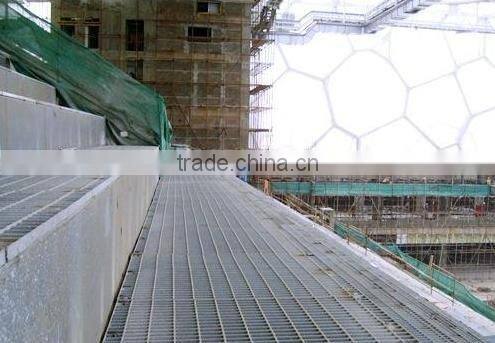

Bar grating is widely used in the platform, corridor, bridge, well covers, stairs, fencing for petroleum, chemical, power plant, waste treatment plant, civil engineering projects and environmental projects.

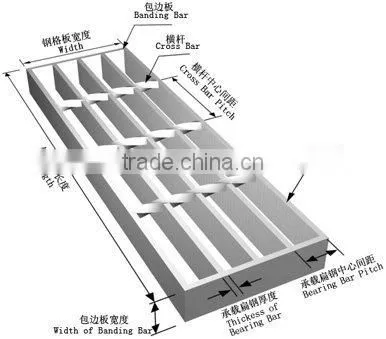

specifications of the Bar grating
Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | |||
1 | 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | ||
2 | 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | ||
3 | 60 | 50 |
| G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
Series | Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | |||
1 | 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | ||
2 | 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | ||
3 | 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
Welcome to contact us!
Anping hONGSHENG wireMesh Factory
Tel:86-318-7688868
Fax:86-318-7522627
Ms Sindy Li
Contact Us
- Anping Hongsheng Wire Mesh Factory
- Contact nameJianBiao Meng Chat Now
- Phone86-318-7688868,7512899,7969996
- AddressNO.139 Wangdu East Street,Anping County, Hengshui, Hebei
