Help CenterReverse Weave Stainless Steel Wire Mesh (factory)
Related Products
-
Stainless Steel Wire Mesh (factory)US$ 5 - 20MOQ: 100 Rolls -
Dutch Plain Weave Stainless Steel Wire Mesh (factory)US$ 5 - 20MOQ: 100 Rolls
-
Plain Weave Stainless Steel Wire Mesh (factory)US$ 5 - 20MOQ: 100 Rolls
-
Stainless Steel Wire Mesh (factory)US$ 2 - 5MOQ: 200 Rolls
-
Stainless Steel Wire Mesh Disc(factory)US$ 1 - 15MOQ: 200 Pieces
Specifications
Stainless Steel Wire Mesh (14 years factory)1,ISO9001&14001
2,304,304L,316,316L.
3,width:30cm-5m,standard30m/60'
4,L15-100m
Stainless Steel Wire Mesh (14 years factory)
Hongsheng manufactures stainless steel wire mesh in different material, mainly are SS 304, SS 304L, SS 316, SS 316L, The mesh range from 1 mesh to 400 mesh, in different weave types, such as plain weave, twill weave, dutch weave and so on width of roll : 0.5M -- 4.3 M; length of roll: 25M -- 100M. Stainless steel wire mesh include mesh, cloth, insect screen and other products.
Packing: Water Proof Paper, wooden Crate.

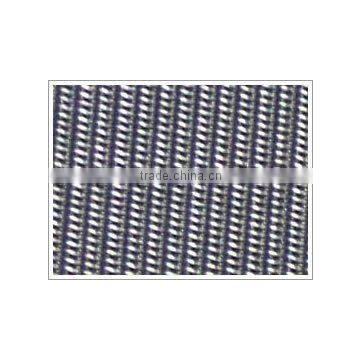

Reverse Weave Stainless Steel Wire Mesh
The apparent difference of Reverse Dutch Weaving compared with standard Dutch weave lies in the thicker warp wires and less weft wires. Reverse Dutch woven stainless steel wire cloth offers finer filtration and finds popular application in petroleum, chemical, food, pharmacy and other fields.
Through constant technological innovation and improvement, we can produce stainless steel wire mesh of various specification in reverse Dutch weaving patterns.
The mesh in processing
The Specifications of the Stainless Steel Wire Mesh
Mesh Count
Warp x Weft
Wire Dia mm
Warp x Weft
Wire Dia inch
Warp x Weft
Open Area
%
Micron
Rating
63 x 18
0.4000 x 0.6000
0.0157 x 0.0236
60
220
107 x 20
0.2400 x 0.6000
0.0094 x 0.0236
58
210
170 x 40
0.2000 x 0.4500
0.0079 x 0.0177
58
130
132 x 32
0.2000 x 0.4000
0.0079 x 0.0157
55
105
171 x 46
0.1500 x 0.3000
0.0059 x 0.0118
54
85
290 x 75
0.0900 x 0.2000
0.0035 x 0.0079
53
55
615 x 102
0.0400 x 0.1600
0.0157 x 0.0063
41
42
615 x 130
0.0400 x 0.1300
0.0157 x 0.0051
49
22
720 x 150
0.0360 x 0.1000
0.0014 x 0.0039
54
17
Anping Hongsheng Wire Mesh Factory
Tel:86-318-7688868
Fax:86-318-7522627
Ms Sindy Li
Send Inquiry to This Supplier
