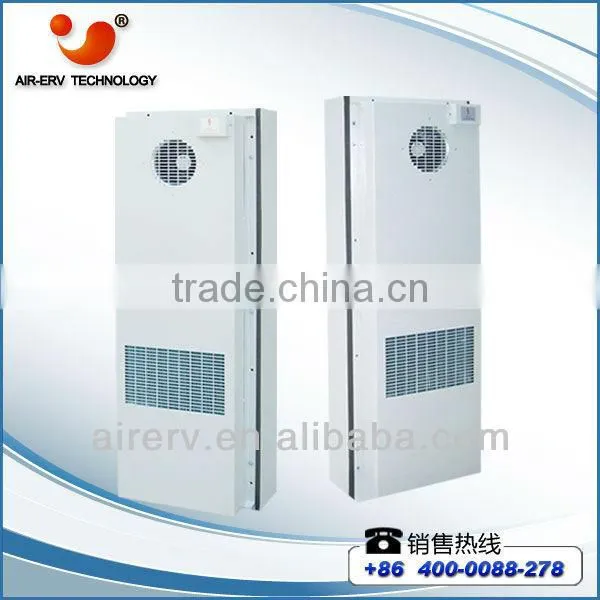

Door Mounted Power Saver Outdoor Telecom Cabinet Heat Exchanger

Xiamen AIR-ERV Technology Co., Ltd. Verified Business License
Door Mounted Power Saver Outdoor Telecom Cabinet Heat Exchanger thumbnail-1
Door Mounted Power Saver Outdoor Telecom Cabinet Heat Exchanger photo-1
US$ 1 - 3,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
AIR-ERV
Model Number:
HEU
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name AIR-ERV
Model Number HEU
Structure Plate Heat Exchanger
Certification CE
Voltage 48V/220V

Specifications

1.HEUC120
2.Air volume:700 m3//h
3.Demension:190*450*1150 mm
4.Noise:54 Db(A)
5.Weight: 39 kg

Product Description

Cabinet heat exchangers is specially designed for telecom cabinet and electric cabinet, in order to remove heat generated by electric equipment (such as PLC, converter machine, relay, driving system, telecom module); It provides the electric cabinet with an environment of ideal temperature and humidity, isolating dust and moisture. Product side mount on indoor and outdoor cabinet. By using air conditioner series can prolong lifetime of the electric products and greatly improving the system’s reliability.



Application range

outdoor communication base stations, 3G base stations, communication cabinet, power stations, outdoor media, Network management centre ,control system, mobile base station and base station equipment rooms etc.



Features

1. Unique heat exchanger core (counter flow or cross flow), high heat exchange rate

2. Airtight circulation cooling system,separated indoor and ourdoor air,avoid pollution from ourdoor air,keep cabinet dry and clean.

3. Ultra-thin structure design, diversiform installation ways, allowed side,door and top installation.

4. High quality components, ensure stable and reliable operation.

5. Compact appearance,convenient installation.

6. Less running parts, long service life and maintenance free.

7. Intelligent control, Multilevel heat transfer.

8 . DC,AC version available for various application

9. High IP,reach to IP65, low energy consumption.



DC vension vs. AC version heat exchanger

1. DC version is recommended comparing AC version HEX since it is PWM Speed controlled and much more efficiency.

2. DC version is vey suitable especially for residential area since the noise can be controlled under acceptable level.

3. DC version can provide emergency cooling when mains loss.



How to select cooling capacity

1.  The heat exchanger capacity normally expressed in *** W/K method, it means the product can dissipate *** W heat load for every one degree temperature difference between inside cabinet and ambient.

2.  A quick method for find out cooling capacity1.1-1.3(factor considering the size and stucture of cabinet,solar radiation)* Q(heat load of cabine)÷Delta T( expected temperature defference between inside cabinent and ambient)



The heating function selection

1.  Normally heater need to have for cold area,the size of heater need to be considered per cabinet size,temp.level,site location;

2.  Normally the inside temp. should be kept under 10 degree when selecting heater size.



Tips for installation

1.  When install the product under severe condition like dusty, high temperature,please make sure no the ambient temperature not over 70 degree,and make sure clean product quarterly;

2.  Make sure the external circle well centilated,not been blocked by surrounding obstacles,make sure no air short cutting;

3.  Make sure the product well mounted and attached on your enclosure,make sure sealing tight engough to avoid air leakage.

Technical parameter

Model

Parameter

    Unit

HEU C060

HEU C080

HEU C100

HEU C120

HEU C150

HEU C180

Cooling Capacity

W/K

60

80

100

120

150

180

Air volume

m3//h

350

400

500

600

750

900

Static pressure

Pa

20

Power

W DC:48V

75

115

157

220

220

240

W AC:220V

Optional

Optional

Optional

Optional

Optional

Optional

Voltage

V

DC 48V       AC 220V

Temperature range

°C

- 40 to 70 °C  ;   0 to 100% RH

Noise

dB(A)

<60

<60

<60

<60

<60

<60

Demension

mm

1000*380*138

1050*435*158

1200*440*188

1350*480*218

1350*520*228

1420*520*248

Weight

Kg

22

26

31

38

43

48

IP protection class

≥ IP54



Remark: Except standard products, we can also OME on your request.
