Specifications
1.Cooling capacity:100 W/K2.Air volume:500 m3//h
3.Demension:1200*440*188 mm
4.Noise:<60 Db(A)
5.Weight: 31 kg
Product Introduction

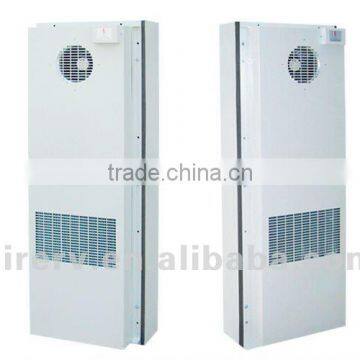

The outdoor cabinet/base station cooling heat exchanger is specifically designed for the cabinet and base station.
Make use of temperature difference inside and outside of cabinet, exchange the heat through the heat exchanger
core, be realized on the temperature adjustment, so as to satisfied the heat dissipation.Perfectly achieve high
efficiency operation through the usage of nature cooling technology.It is much more reliable,much more cheaper
comparing with air conditioner solution.Indoor air and outdoor air are isolated perfectly, eliminate the dust
contamination issue caused by ventilation, with low noise and safety.The heat exchanger core is made of
aluminium foil, with goodthermal conductivity, long service life, is easy to maintain, the heat efficiency above
75%.The products can be widely used in telecom communication, power distribution, CNC mchine, windmill
etc automation Industry, for space cooling.

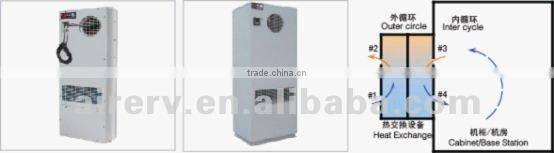

Working Principle
The outdoor cabinet/base station cooling heat exchanger was divided into operational ircle parts, they are
isolated from each other, in order to achieve water-proof and dustproof purposes.Two circles achieve the heat
exchange in heat exchanger core.
Outer circle: The cold outdoor air enter into the heat exchanger from #1 air inlet, through the heat exchanger
core, recover the heat from inter cycle, and expel from #2 air outlet.
Inter circle: The cabinet/base station internal temperature were rise up because of the electron components
working, the hot air enter into the heat exchanger from #3 air inlet, transfer the heat to cold outdoor air, and
expel from #4 air outlet, then draw back into the cabinet and base station, so as to cool the electron
components and equipment.
Technical parameter:
| ||||||||
Parameter | Unit | HEU C060 | HEU C080 | HEU C100 | HEU C120 | HEU C150 | HEU C180 | |
Cooling Capacity | W/K | 60 | 80 | 100 | 120 | 150 | 180 | |
Air volume | m3//h | 300 | 400 | 500 | 600 | 750 | 900 | |
Static Pressure | Pa | Greater than 100 | ||||||
Power | W DC-48V | 75 | 115 | 157 | 220 | 220 | 240 | |
W AC-220V | Optional | Optional | Optional | Optional | Optional | Optional | ||
Voltage | V | DC 48V AC 220V | ||||||
Temperature range | °C | -40 to 70 °C 0 to 100% RH | ||||||
Noise | Db(A) | <60 | <60 | <60 | <60 | <60 | <60 | |
Demension | mm | 1000*380*138 | 1050*435*158 | 1200*440*188 | 1350*480*218 | 1350*520*228 | 1420*520*248 | |
Weight | Kg | 22 | 26 | 31 | 38 | 43 | 48 | |
Protection Grade | ≥ IP54 | |||||||
Remark: Except standard products, we can also OME other size base on your request.
Welcome to contact us!
