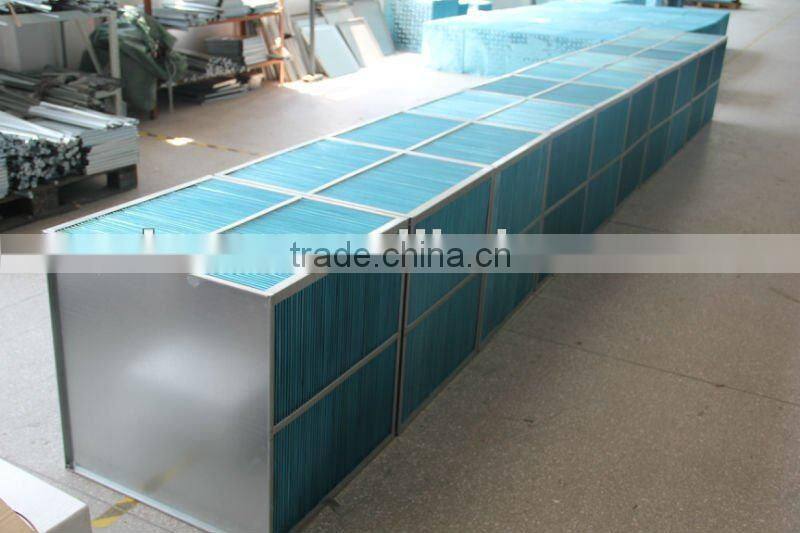

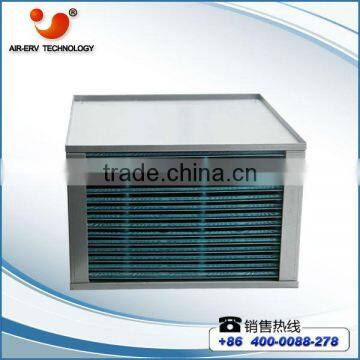

sensible heat exchanger
It is made of seawater corrosion resistant hydrophilic aluminum foil and galvanized sheet framwork.
process by special technics,high heat transfer efficiency,easy to maintain and long service life.
Working principle
Air forced pass through the heat exchanger core , the heat exchange from the plates. At the same time recover the energy from the exhause air.
Cross flow
Feature
1. Cross flow plate heat exchanger adopt high quality seawater corrosion resistant hydrophilic aluminum foil as heat conductor, process by special technics,high heat transfer efficiency,easy to maintain,and long service life features,etc.
2. Module structure,different size of edges and superposed thickness to be choice.
3. No running components, and low maintenance cost.
4. Compact structure, small volume and suitable for various occasions.
Production technology
1. The face of heat exchanger process with strengthened heat transfer stamping, increased the 10% heat transfer area.
2. Adopt stamping convex round as air passage support, guarantee the high strength and tightness of Channel, high fresh air and exhaust air bearing capability.
3. Cross channel between ourdoor air and exhaust air, separate by aluminium foil,entry edge and exit edge process with five layer crimping techniques,have higher edge intensity and more reliable seal.
4. All joints are airproofed by airproof glue, ensure that theheat exchanger has excellent air tightness.
Remark: Corrugated air channel available for application,which process by spot-face airtight technology,solved the penetration and pollution problem which exist in spot-spot technology,completely stop exhaust air pollute outdoor air.
Model Range
Demension (mm) | Plate distance (mm) | ||
A | B | C90/C45 | |
On request | On request | On request | 2.0-8.0 |
Remark:
If your request products size is special ,please contract with us.
Applied range
1. Cross flow heat exchangers specially suitable for big indoor and outdoor temperature difference and small humidity area, especially for no return air occasion.
2. Apply to recover energy in room /industry/ventilation system.
Workshop
Authentication: All are RoHS compliant!
