Home > Products > New Products > Faster Drilling Speed and Most Advanced (SD10) DTH Hammer
Faster Drilling Speed and Most Advanced (SD10) DTH Hammer
- 1000 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
Product Details
Brand Name: | New Diamond | Model Number: | SD10 | Machine Type: | Drilling Tool |
Material: | Carbide | Processing Type: | Forging | Use: | Ore Mining |
Place of Origin: | Hunan, China | Type: | Other, hammer | Certification: | Other, ISO9001:2008 |
Product Description
Specifications
High Air DTH Hammer1.Lower energy consumption
2.Higher impact frequency
3.Easy and cheap maintenance
4.Long life, reliable
Faster Drilling Speed and Most Advanced Air DTH Hammer:
1. 10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide
It is a kind of high air pressure DTH Hammer without footvalve, our newest design. It is also one of the most advanced DTH Hammers in the world.
It has the following advantages:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
NSD10A DTH Hammer Technical Data
Length (Without Bit) | Weight (Without Bit) | External diameter | Bit Shank | Hole Range | Connection Thread | ||
1525mm | 316.00kg | 226mm | SD10 | 254-311 | API6 5/8Reg | ||
Working Pressure | Impact rate at 1.7Mpa | Recommended rotation speed | Air consumption | ||||
1.0Mpa | 1.8Mpa | 2.4Mpa | |||||
1.0-2.5Mpa | 20HZ | 15-25r/min | 22m³/min | 40m³/min | 65m³/min | ||
|
|
|
|
|
|
|
|

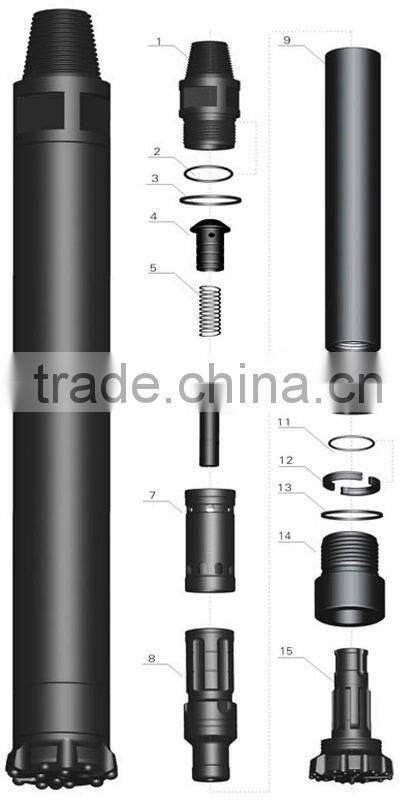

Item Description | Weight (kg) | Part Number |
1. Top Sub 2. O Ring of Top Sub 3. Breakout Ring 4. Check Valve 5. Spring 6. Air Distributor 7. Internal Cylinder 8. Piston 9. External Cylinder 10. Guided Sleeve 11. o Ring of Stop Ring 12. Stop Ring 13. Breakout Ring 14. Drive Chuck 15. Drill Bit | 59.00 0.03 0.50 1.40 0.30 10.50 12.50 77.00 110.00 11.50 0.01 1.50 0.50 31.50 108.00 | NSD10A01 NSD10A02 NSD10A03 NSD10A04 NSD10A05 NSD10A06 NSD10A07 NSD10A08 NSD10A09 NSD10A10 NSD10A11 NSD10A12 NSD10A13 NSD10A14 NSD10A15 |
Our advantages:
We have advanced production equipments & talented researchers & technicians & rich experiences in R & D and production.
We use the best quality raw materials.
We adopt advanced production technology & strict testing procedure.
We passed ISO9001 quality management system certification.
We accept OEM manufacturing and produce on your design.
