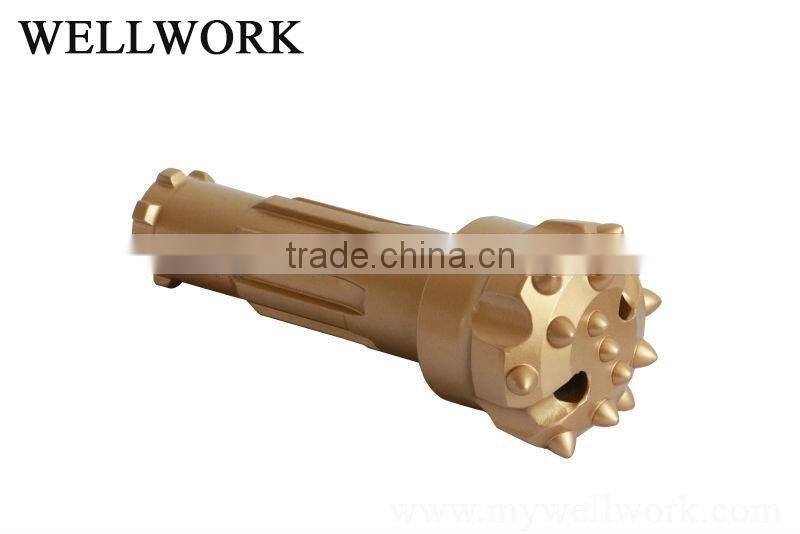

3'' Inch High Air Pressure Dth Button Bit

3'' Inch High Air Pressure Dth Button Bit thumbnail-1
3'' Inch High Air Pressure Dth Button Bit thumbnail-2
3'' Inch High Air Pressure Dth Button Bit thumbnail-3
3'' Inch High Air Pressure Dth Button Bit thumbnail-4
3'' Inch High Air Pressure Dth Button Bit thumbnail-5
3'' Inch High Air Pressure Dth Button Bit photo-1
3'' Inch High Air Pressure Dth Button Bit photo-2

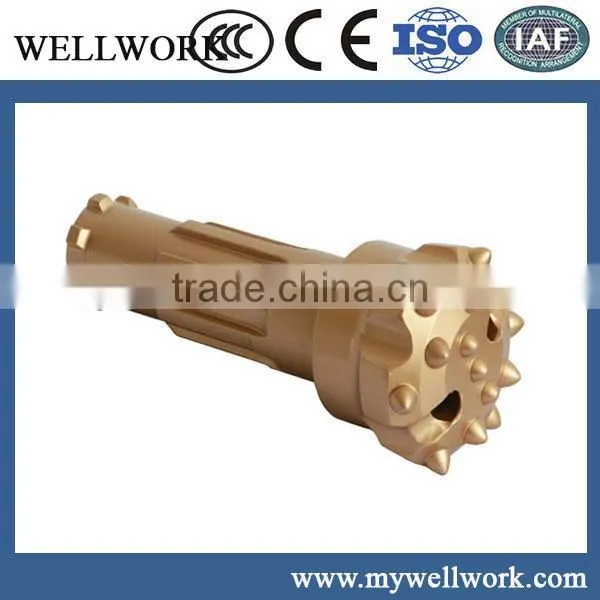

3'' Inch High Air Pressure Dth Button Bit photo-3
3'' Inch High Air Pressure Dth Button Bit photo-4

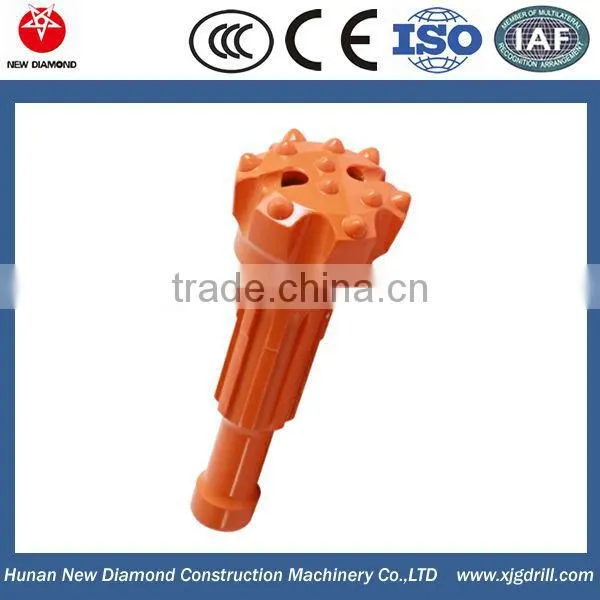

3'' Inch High Air Pressure Dth Button Bit photo-5
US$ 150 - 10,000 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Brand Name:
New diamond
Model Number:
3''(inch)
Type:
Drill Bit
Contact Supplier Request Quote Chat Now
Xian Wellwork Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China main port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name New diamond
Model Number 3''(inch)
Type Drill Bit
Machine Type Drilling Tool
Material Carbide
Processing Type Forging
Use Ore Mining
Place of Origin Hunan, China
Certification Other, ISO9001:2008

Specifications

DTH Bits
1.Manufacture as your requirement
2.Bit diameter, face shape
3.Carbide button shape
4.Number of air hole

Product Description

Bit Face Shape Selection:

1. Drop Center Bit

For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.

2. Concave Face

The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.

3. Convex Face

For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.

4. Double Gauge Face

This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.

5. Flat Face Bit

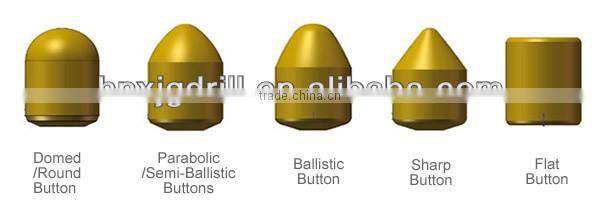

Carbide Button Shape Selection:

1. Domed/Round Button

2. Parabolic/Semi-Ballistic Buttons

3. Ballistic Button

4. Sharp Button

5. Flat Button

3" High Air Pressure DTH Bits

Drill Bit

Bit Dia.

Air Holes No.

Gauge Buttons

Front Buttons

Weight

(Kg)

mm

inch

COP32

85

3 1/3

2

6*13

4*12

4.2

90

3 1/2

2

6*14

4*12

4.5

95

3 3/4

2

6*14

4*13

4.7

100

3 7/8

2

8*12

6*12

5.0

105

4 1/8

2

8*13

6*12

5.3

BR3

85

3 1/3

2

6*13

4*12

3.8

90

3 1/2

2

6*14

4*12

4.0

95

3 3/4

2

6*14

4*13

4.3

100

3 7/8

2

8*12

6*12

4.8

105

4 1/8

2

8*13

6*12

5.2

ND35(IR3.5/COP34)

85

3 1/3

2

6*13

4*12

4.2

90

3 1/2

2

6*14

4*12

4.5

95

3 3/4

2

6*14

4*13

4.8

100

3 7/8

2

8*12

6*12

5.0

105

4 1/8

2

8*13

6*12

5.5

NQL30(COP34)

85

3 1/3

2

6*13

4*12

4.5

90

3 1/2

2

6*14

4*12

4.7

95

3 3/4

2

6*14

4*13

4.9

100

3 7/8

2

8*12

6*12

5.0

105

4 1/8

2

8*13

6*12

5.5
