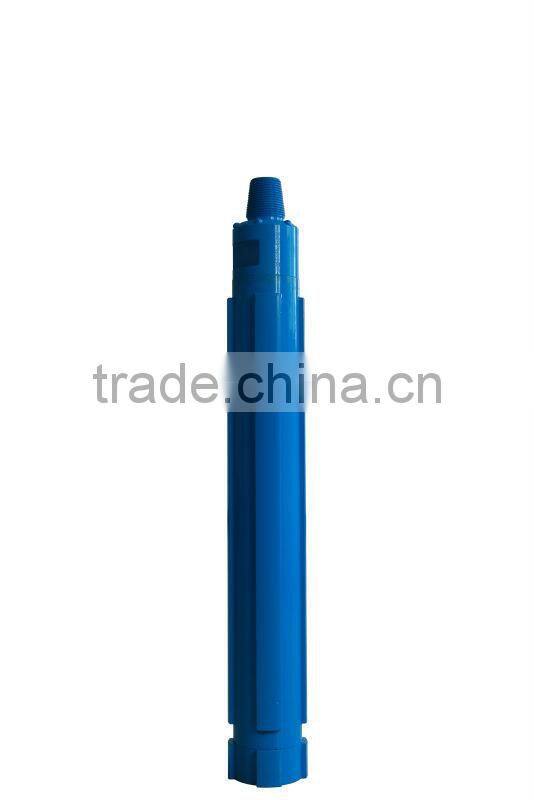

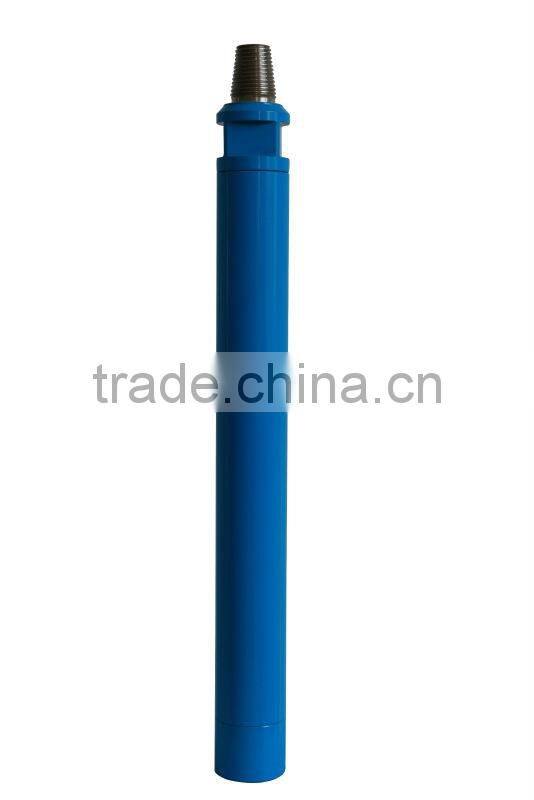

Faster Drilling Speed and Most Advanced Air DTH Hammer:
1. 10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide
It has the following advantages:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
NM4A DTH Hammer Technical Data
Length (Less bit) |
Weight (Less bit) |
External diameter |
Bit Shank |
Hole Range |
Connection Thread |
||
1005mm |
40.00kg |
99mm |
HM4 |
110-135 |
API2 3/8Reg |
||
Working Pressure |
Impact rate at 1.7Mpa |
Recommended rotation speed |
Air consumption |
||||
1.0Mpa |
1.8Mpa |
2.4Mpa |
|||||
1.0-2.5Mpa |
30HZ |
25-40r/min |
5m³/min |
9m³/min |
14m³/min |
||
|

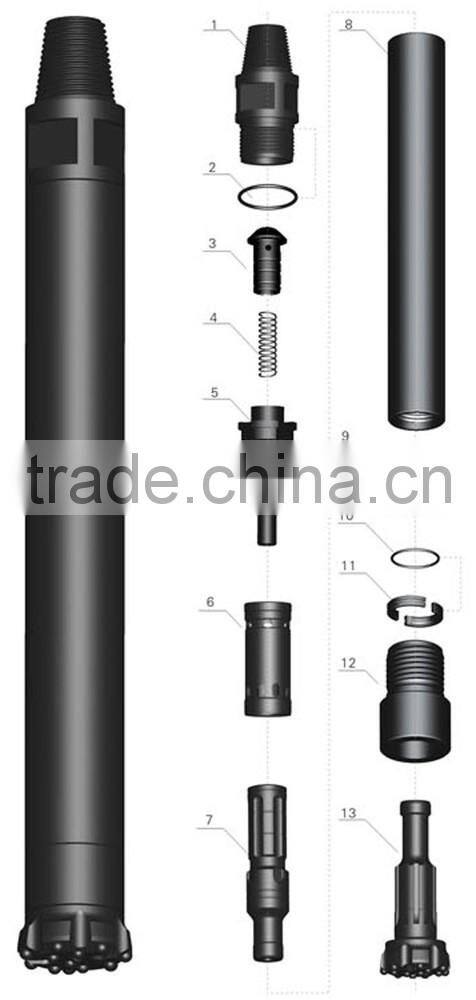

1. Top Sub
2. O Ring of Top Sub
3. Check Valve
4. Spring
5. Air Distributor
6. Internal Cylinder
7. Piston
8. External Cylinder
9. Guided Sleeve
10. o Ring of Stop Ring
11. Stop Ring
12. Drive Chuck
13. Drill Bit |
6.50
0.01
0.35
0.05
1.50
2.10
8.50
14.80
1.80
0.005
0.30
3.80
6.60 |
NM4A01
NM4A02
NM4A03
NM4A04
NM4A05
NM4A06
NM4A07
NM4A08
NM4A09
NM4A10
NM4A11
NM4A12
NM4A13 |
Send Inquiry to This Supplier
