Specifications
High Air DTH Hammer1.Lower energy consumption
2.Higher impact frequency
3.Easy and cheap maintenance
4.Long life, reliable
Faster Drilling Speed and Most Advanced Air DTH Hammer:
1. 10 years manufacturing experience;
2. Certificate: ISO9001:2008
3. Material: Carbide
It is a kind of high air pressure DTH Hammer without footvalve, our newest design. It is also one of the most advanced DTH Hammers in the world
It has the following advantages:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
ND45S DTH Hammer Technical Data
ND45S DTH Hammer Technical Data:
Length (Less bit) |
Weight (Less bit) |
External diameter |
Bit Shank |
Hole Range |
Connection Thread |
||
986mm |
37.00kg |
92mm |
Cop44 DHD340 |
105-120 |
API2 3/8Reg |
||
Working Pressure |
Impact rate at 1.5Mpa |
Recommended rotation speed |
Air consumption |
||||
1.0Mpa |
1.8Mpa |
2.4Mpa |
|||||
1.0-2.5Mpa |
30HZ |
22-40r/min |
5m³/min |
8m³/min |
13m³/min |
||

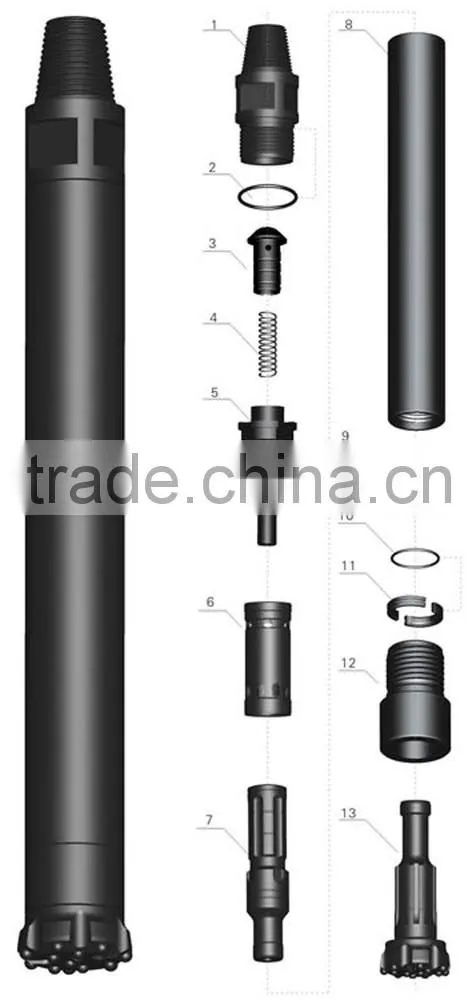

Item Description |
Weight (kg) |
Part Number |
|
1. Top Sub
2. O Ring of Top Sub
3. Check Valve
4. Spring
5. Air Distributor
6. Internal Cylinder
7. Piston
8. External Cylinder
9. Guided Sleeve
10. o Ring of Stop Ring
11. Stop Ring
12. Drive Chuck
13. Drill Bit |
6.00
0.01
0.30
0.05
1.30
1.90
7.80
14.60
1.20
0.005
0.20
3.40
8.50 |
ND45S01
ND45S02
ND45S03
ND45S04
ND45S05
ND45S06
ND45S07
ND45S08
ND45S09
ND45S10
ND45S11
ND45S12
ND45S13 |
