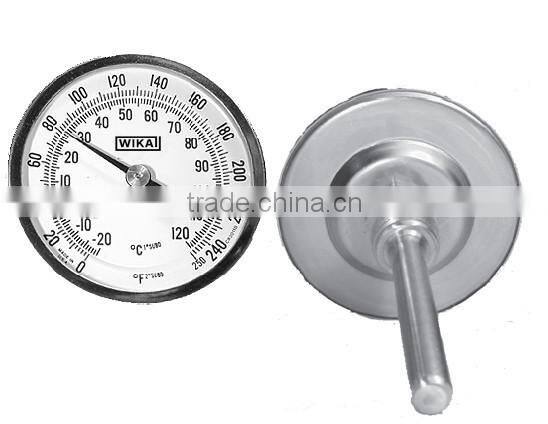

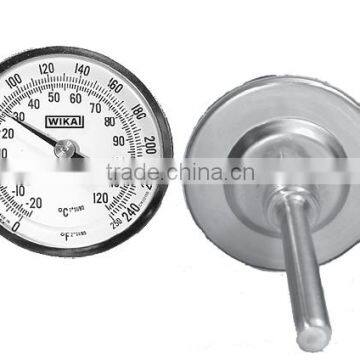

Bimetal Thermometer Stainless Steel Construction Type TI.20 - OEM Industrial Thermometer

Bimetal Thermometer Stainless Steel Construction

Type TI.20 - OEM Industrial Thermometer

Application

• Suitable fluid medium which does not corrode 304 stainless steel

Special features

• Back connection without external reset
• Industrial design
• All Stainless steel construction
• Available with NSF approval

Standard version

Size

2" (50.8 mm) - Type TI.20

Accuracy

+ 1.0% full scale value (ASME B40.3)

Min. / Max.Ranges

-100 oF to 1000 oF (and equivalent Celsius)

Working Range

Steady:full scale value

Short time:110% of full scale value

Under / Over Range Protection

Temporary over or under range tolerance of 50% of scale upto 500 oF (260°C). For ranges above 500°F, maximum overrange is 800°F; continous. 1000°F intermittent.

Connection

Material: 304 stainless steelCenter back mount (CBM)¼" NPT

Stem

Material: 304 stainless steel

Diameter: ¼" (6.35 mm)

Length: 2 ½" to 24" (63.5 mm to 609.6 mm)

Measuring Element

Bi-metal helix

Case

Material: 304 stainless steel; hermetically sealed per ASMEB40.3 standard

Dial

White aluminum, dished, with black markings

Pointer

Black aluminum

Standard Scales

Single: Fahrenheit or Celsius

Dual: Fahrenheit (outer) and Celsius (inner)

Window

Flat instrument glass

Weight

2" - 5 oz.; Add 1 oz. for every 2" of stem length

Dampening

Inert gel to minimize pointer oscillation

Order Options (min. order may apply)

Special scales and dial markings; Acrylic windows

Calibration certification traceable to NIST

Warranty

Limited one year warranty as stated in WIKA's Terms &Conditions of Sale.
