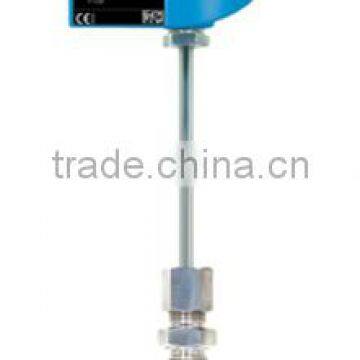

Omnigrad S TC61 Explosion-proof thermocouple thermometer
Safe monitoring of process temperatures in challenging applications e. g. in the Oil & Gas industry
Product Overview
The robust thermometer is designed for use in demanding and safety relevant applications e.g. in the Chemical, Oil & Gas and Energy industry. Harsh environments, corrosive substances and highest pressures can be handled by the use of robust protection tubes and special materials. An optional head transmitter with all common communication protocols makes the device ready to use with enhanced measurement accuracy and reliability compared to directly wired sensors. Flexible configuration possible.
Benefits
Types of protection for use in hazardous locations: Intrinsic safety (Ex ia), flameproof (Ex d), non-sparking (Ex nA)
High degree of insert compatibility and design as per DIN 43772
Extension neck to protect the head transmitter from overheating
Fast response time with reduced/tapered tip form
High degree of flexibility thanks to modular design with standard terminal heads as per DIN EN 50446 and customer-specific immersion lengths
Field of application
Heavy duty applications
Oil & Gas processing industry
Measuring range: –40 to 1 100 °C (–40 to 2 012 °F)
Static pressure range up to 75 bar dependent on the used process connection
Protection class: IP66/68
Technical information
| Measuring Principle | Thermocouple | |
| Characteristic / Application | metric style modular temperature assembly for heavy duty applications suitable for hazardous areas with neck incl. thermowell / protection tube (metal) |
|
| Terminal head | TA21H – aluminium – screw cover w. chain TA21H – stainless steel – screw cover w. chain TA30H – aluminium – w. or w/o. display TA30H – aluminium – one or two cable entries NPT1/2", NPT3/4", M20x1.5 |
|
| Thermowell / protection tube | welded protection tube | |
| Insert / probe | mineral insulated (MI), flexible | |
| Outer diameter protection tube | 9,0 mm (0,35'') 11,0 mm (0,43'') 12,0 mm (0,47'') |
|
| Max. immersion length on request | up to 10.000,00 mm (393,70'') | |
| Material protection tube/thermowell | 1.4404 (316L) 1.4571 (316Ti) Alloy 600 (2.4816) Alloy C276 (2.4819) |
|
| Optional coating | Tantal | |
| Process connection | male thread: G1/2" G3/4" G1" NPT1/2" NPT3/4" M20x1,5 compression fitting: G1/2" G1" flange: DN25 PN40 B1 (EN1092) DN40 PN40 B1(EN1092) DN50 PN40 B1 (EN1092) ASME 1" 150 RF (B16.5) ASME 1" 300 RF (B16.5) |
|
| Tip shape | straight reduced tapered |
|
| Surface roughness Ra | 0,8 μm (31,5 μin.) | |
| Operating temperature range | Type K: -40 °C ...1.100 °C (-40 °F ...2.012 °F) Type J: -40 °C ...750 °C (-40 °F ...1.382 °F) |
|
| Max. process pressure (static) | at 20 °C: 100 bar (1.450 psi) | |
| Accuracy | class 1 acc. to IEC 60584 class 2 acc. to IEC 60584 |
|
| Response time | depending on configuration t50 = 3 s t90 = 7 s |
|
| Integration head transmitter | yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS) | |
| Ex - approvals | ATEX II1/2D Ex ia IIIC,II1G Ex ia IIC T6 ATEX II 2 GD Ex d IIC ATEX II 3 G Ex nA IIC T6, II3D ATEX II 1/2 GD Ex d IIC IECEx Ex d Ga/Gb IIC T6/T5/T4,Ex tD A20 IECEx Ex ia IIC T6 Ga/Gb IECEx Ex d IIC T6/T5/T4 IECEx Ex d IIC T6/T5/T4, Ex tD A21 NEPSI Ex ia IIC T6 NEPSI Ex d IIC T6 NEPSI Ex nA IIC T6 |
|
| Certification | Gost Metrology SIL (transmitter only) |
|
