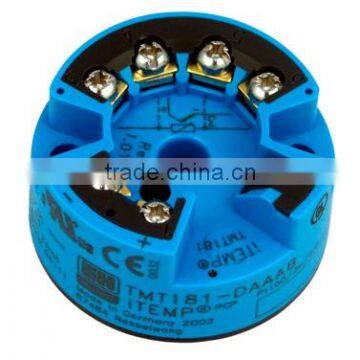

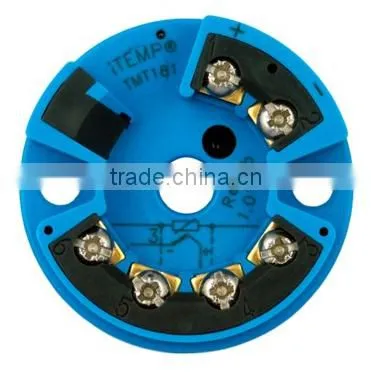

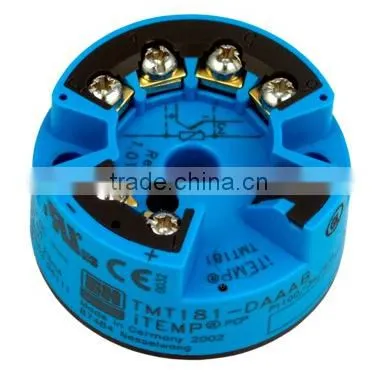

iTEMP TMT181 Temperature head transmitter
Transformation of sensor signals into stable and standardized output signals for all industries
Product Overview
Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers converted signals from resistance thermometers (RTD) and thermocouples (TC), it also transfers resistance and voltage signals. The standardized output signal used for process measurement is a 4 to 20 mA signal. Swift and easy operation, visualization and maintenance by PC using operating software.
Benefits
High accuracy in total ambient temperature range
Fault signal on sensor break or short circuit, NAMUR NE 43 compliant
Ex certification: ATEX Ex ia and dust ex zone 22 in compliance with
EN 50281-1; FM IS; CSA ISEMC to NAMUR NE 21, CE
Configuration during measurement using configuration kit
Galvanic isolation
Output simulation
Field of application
PC programmable (PCP) temperature head transmitter for converting various input signals into a scalable 4 to 20 mA analog output signal
Input: Resistance thermometer (RTD), thermocouple (TC), resistance transmitter , voltage transmitter (mV)
Configuration using a PC with configuration kit (PC-software ReadWin® 2000)
Technical information
| Measuring Principle | Head transmitter | |
| Input | 1 x RTD, TC, Ohm, mV | |
| Output | 1 x analog 4...20 mA | |
| Auxiliary power supply | 8...35 V DC (standard-version) 8...30 V DC (Ex-version) | |
| Communication | PCP (pc-programmable) | |
| Installation | Terminal head form B | |
| Accuracy | (Pt100, -50...200 °C) <= 0,2 K (Pt100, -58...392 °F) <= 0,4 °F | |
| Galvanic isolation | yes | |
| Certification | UL Ex IS, NI GL marine approval GOST Ex i FM IS,NI,Class I,Div.1+2,Group ABCD CSA IS,NI,Class I,Div.1+2,Group ABCD ATEX II3G Ex nA IIC T4/T5/T6 ATEX II1G EEx ia IIC T4/T5/T6 ATEX II3D ATEX II1G EEx ia IIC T6, II3D ATEX II3G Ex nA IIC T6, II3D FM+CSA IS,NI,Class I,Div.1+2,Group ABC CSA General Purpose NEPSI Ex ia IIC T4-T6 NEPSI Ex nA II T4-T6 | |
