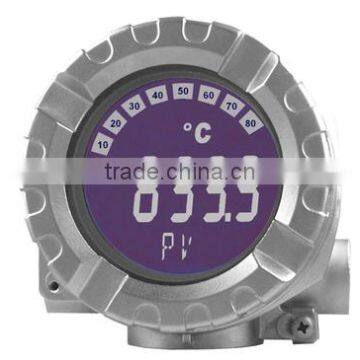

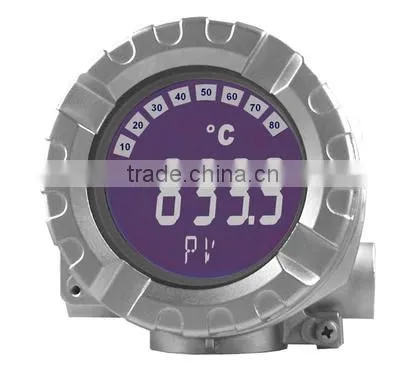

iTEMP TMT162 Temperature field transmitter
Electronic monitoring, conversion and display of input signals - all over the industries
Product Overview
Unsurpassed reliability, accuracy and long-term stability in critical processes. The remote configurable transmitter transfers and monitors converted signals from RTD sensors and thermocouples as well as from resistance and voltage signals using selectively HART®, FOUNDATION Fieldbus™-, PROFIBUS® PA-communication. It visualizes the signals on its own backlit display. A field housing allows a direct connection in harsh process areas as well as in hygienic applications as option.
Benefits
High reliability in harsh industrial environments due to dual compartment housing and compact, fully potted electronics
Backlit display with large measured value, bargraph and status condition indication
Diagnostics information according to NAMUR NE 107
Reliable operation due to sensor monitoring: breakdown information, sensor backup, drift alarm and corrosion detection
High measuring point accuracy due to sensor transmitter matching
Mathematical functions for differential and average temperature add flexibility to the measurement

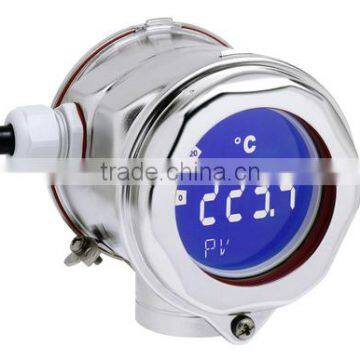

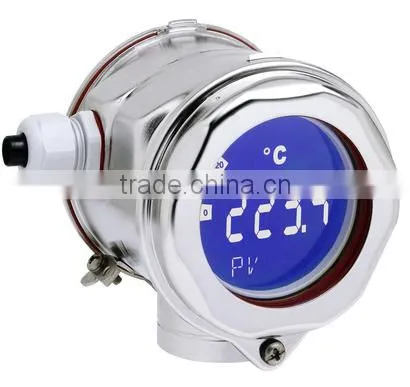

Optional: stainless steel housing for hygienic or Ex d application
Field of application
Universal input usable for resistance thermometer (RTD), thermocouple (TC), resistance thermometer (Ω), voltage transmitters (mV)
HART® protocol for converting various input signals to a scalable 4 to 20 mA analog output signal. Operating the transmitter using handheld terminals Field Xpert SFX100, DXR275/375/475 or remotely via PC
FOUNDATION Fieldbus™ ITK 5.2.0
PROFIBUS® PA Profile 3.02
Optional: stainless steel housing for hygienic or Ex d application
Technical information
| Measuring Principle | Resistance Temperature Detector | |
| Input | 2 x RTD, TC, Ohm, mV | |
| Output | 4...20 mA HART FOUNDATION Fieldbus H1 PROFIBUS PA | |
| Auxiliary power supply | HART: 10,5...40 V DC Ex ia: 10,5...30 V DC FOUNDATION Fieldbus: 9...32 V DC Ex ia: 10,5...24 V DC PROFIBUS PA: 9...32 V DC Ex ia: 10,5...24 V DC | |
| Communication | HART-protocol FOUNDATION Fieldbus PROFIBUS PA | |
| Installation | in field | |
| Accuracy | (Pt100, -50...200 °C) <= 0,15 K (HART) (Pt100, -58...392 °F) <= 0,3 °F (HART) (Pt100) <= 0,1 K (FF, PA) (Pt100) <= 0,18 °F (FF, PA) | |
| Galvanic isolation | yes | |
| Certification | UL rec. Comp (HART) FM IS, NI I/1+2/ABCD CSA IS, NI I/1+2/ABCD ATEX II1G Ex ia IIC T6 ATEX II2G Ex d IIC T6 ATEX II3G Ex nA IIC T6 ATEX IECEx II2D Ex tb IIIC Db ATEX II1G Ex ia IIC T6, II2D Ex ia IIIC FM XP, NI, DIP I,II,III/1+2/A-G CSA XP, NI, DIP I,II,III/1+2/A-G FM XP, DIP, IS, NI I,II,III/1+2/A-G CSA XP, DIP, IS, NI I,II,III/1+2/A-G FM+CSA XP,DIP, IS, NI I,II,III/1+2/A-G CSA General Purpose IECEx Ex ia IIC T6 Ga IECEx Ex d IIC T6 Gb IECEx Ex ia, Ex d NEPSI Ex ia IIC T4-T6 NEPSI Ex nA II T4-T6 NEPSI Ex d IIC T4-T6 TIIS Ex ia IIC T4 TIIS Ex ia IIC T6 TIIS Ex d IIC T6 marine approval only for HART-protocol SIL2 only for HART-protocol | |
