Endress Hauser Liquid Level Transmitter

Xian Wellwork Industrial Co., Ltd.

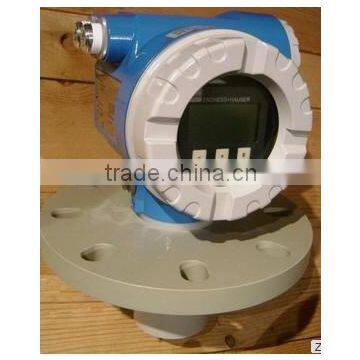

Endress Hauser Liquid Level Transmitter thumbnail-1
Endress Hauser Liquid Level Transmitter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Germany
Brand Name:
endress hauser
Model Number:

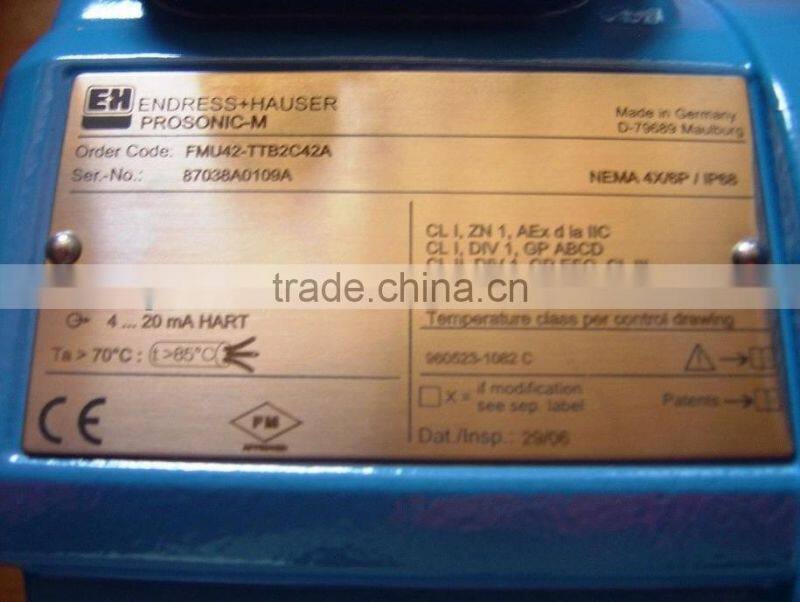

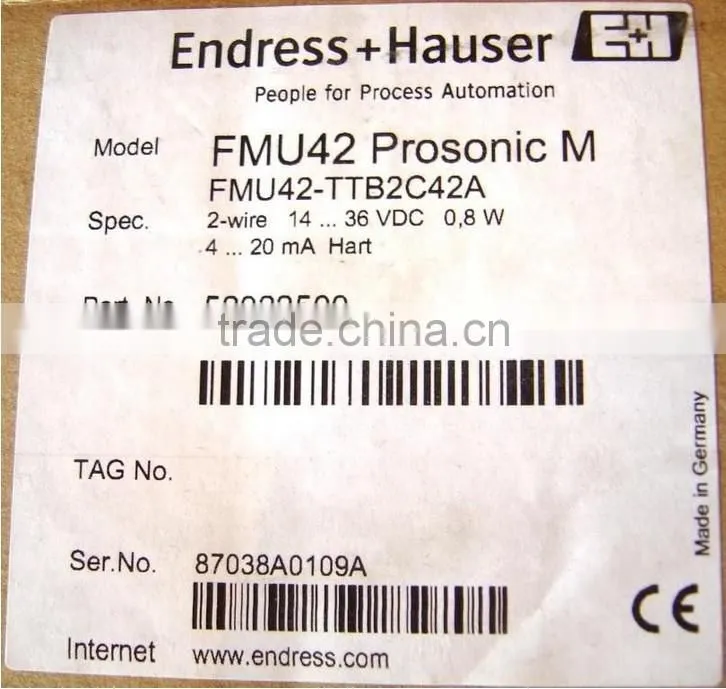

FMU42
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Germany
Brand Name endress hauser
Model Number FMU42

Specifications

Compact transmitter for non-contact level measurement of fluids

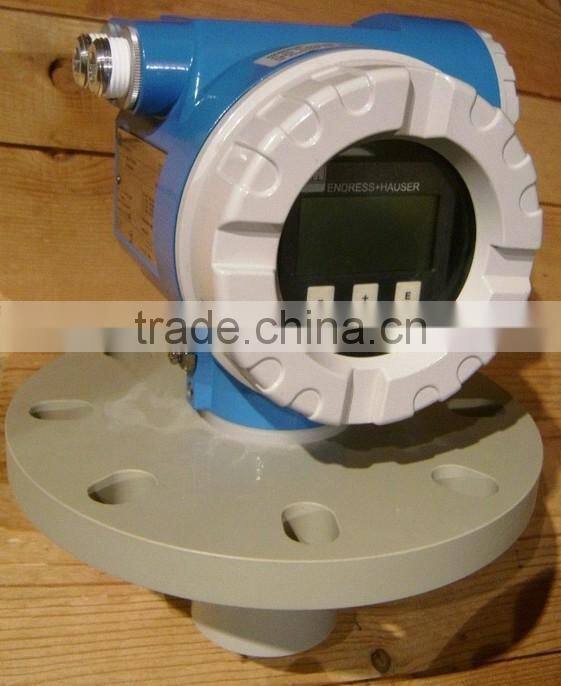

High Quality E+H Ultrasonic Level Transmitter Prosonic M FMU42



Product Description


Compact transmitters for non-contact level measurement of fluids, pastes and coarse bulk materials.

  • Quick and simple commissioning via menu-guided onsite operation with four-line plain text display; 7 languages selectable

  • Envelope curves on the on-site display for simple diagnosis

  • Easy remote operation, diagnosis and measuring point documentation with the supplied FieldCare operating program

  • Suitable for explosion hazardous areas (Gas-Ex, Dust-Ex)

  • Linearisation function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate

  • Non-contact measurement method minimizes service requirements

  • optional remote display and operation (up to 20 m (66 ft) from transmitter)

  • Integrated temperature sensor for automatic correction of the temperature dependent sound velocity

Field of Application

  • Continuous, non-contact level measurement in fluids, pastes, sullages and coarse bulk materials

  • Flow measurement in open channels and measuring weirs

  • System integration via:
    HART (standard), 4 ... 20 mA
    PROFIBUS PA
    FOUNDATION Fieldbus

  • Maximum measuring range:
    10 m in fluids
    5 m in bulk materials

For other measuring ranges:

  • FMU40:
    5 m in fluids
    2 m in bulk materials
  • FMU41:
    8 m in fluids
    3, 5 m in bulk materials
  • FMU43:
    15 m in fluids
    7 m in bulk materials
  • FMU44:
    20 m in fluids
    10 m in bulk materials
Measuring PrincipleUltrasonic
Characteristic / ApplicationCompact ultrasonic transmitter
Supply / Communication2/4-wire (HART), PROFIBUS PA, FOUNDATION Fieldbus
Accuracy+/- 4 mm or +/- 0,2 % of set measuring range
Ambient temperature-40 °C ... 80 °C
(-40 °F ... 176 °F)
Process temperature-40 °C ... 80 °C
(-40 °F ... 176 °F)
Process pressure absolute / max. overpressure limit0.7 bar ... 2.5 bar abs
(10 psi ... 36 psi)
Main wetted partsPVDF
Process connectionFlange
DN80, ANSI 3", JIS 10K 80
DN100,ANSI 4", JIS 10K 100
Mounting bracket
Blocking distance0.4 m (1.3 ft)
Max. measurement distance10 m (33 ft)
Output4 ... 20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus
Certificates / ApprovalsATEX
FM
CSA
NEPSI
Application limitsFoam / high turbulence possible:
FMU44/FDU92
Fast filling and discharging rate:
FMU90 + FDU9x
Level limit detection
FMU90 + FDU9x

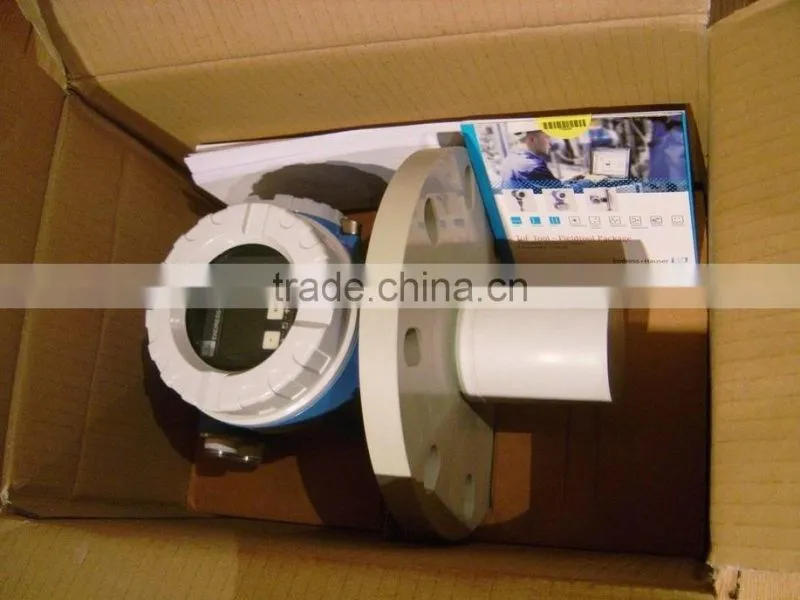

 Endress Hauser Liquid Level TransmitterEndress Hauser Liquid Level TransmitterEndress Hauser Liquid Level TransmitterEndress Hauser Liquid Level Transmitter
