Endress Hauser Ultrasonic Level Transmitter

Name: Endress Hauser Ultrasonic Level Transmitter
Brand: endress hauser
SKU: 141945570
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Germany

Brand Name:

endress hauser

Model Number:

FMU42

Xian Wellwork Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Germany

Brand Name endress hauser

Model Number FMU42

Specifications

Compact transmitter for non-contact level measurement of fluids

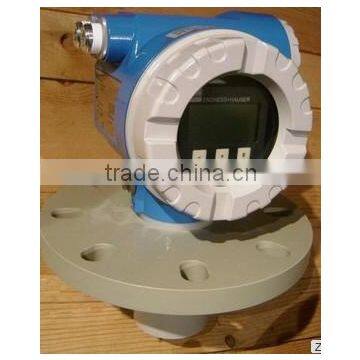

High Quality E+H Ultrasonic Level Transmitter Prosonic M FMU42

Compact transmitters for non-contact level measurement of fluids, pastes and coarse bulk materials.

Quick and simple commissioning via menu-guided onsite operation with four-line plain text display; 7 languages selectable
Envelope curves on the on-site display for simple diagnosis
Easy remote operation, diagnosis and measuring point documentation with the supplied FieldCare operating program
Suitable for explosion hazardous areas (Gas-Ex, Dust-Ex)
Linearisation function (up to 32 points) for conversion of the measured value into any unit of length, volume or flow rate
Non-contact measurement method minimizes service requirements
optional remote display and operation (up to 20 m (66 ft) from transmitter)
Integrated temperature sensor for automatic correction of the temperature dependent sound velocity

Continuous, non-contact level measurement in fluids, pastes, sullages and coarse bulk materials
Flow measurement in open channels and measuring weirs
System integration via:
HART (standard), 4 ... 20 mA
PROFIBUS PA
FOUNDATION Fieldbus
Maximum measuring range:
10 m in fluids
5 m in bulk materials

For other measuring ranges:

Measuring Principle	Ultrasonic
Characteristic / Application	Compact ultrasonic transmitter
Supply / Communication	2/4-wire (HART), PROFIBUS PA, FOUNDATION Fieldbus
Accuracy	+/- 4 mm or +/- 0,2 % of set measuring range
Ambient temperature	-40 °C ... 80 °C (-40 °F ... 176 °F)
Process temperature	-40 °C ... 80 °C (-40 °F ... 176 °F)
Process pressure absolute / max. overpressure limit	0.7 bar ... 2.5 bar abs (10 psi ... 36 psi)
Main wetted parts	PVDF
Process connection	Flange DN80, ANSI 3", JIS 10K 80 DN100,ANSI 4", JIS 10K 100 Mounting bracket
Blocking distance	0.4 m (1.3 ft)
Max. measurement distance	10 m (33 ft)
Output	4 ... 20 mA HART PROFIBUS PA FOUNDATION Fieldbus
Certificates / Approvals	ATEX FM CSA NEPSI
Application limits	Foam / high turbulence possible: FMU44/FDU92 Fast filling and discharging rate: FMU90 + FDU9x Level limit detection FMU90 + FDU9x
