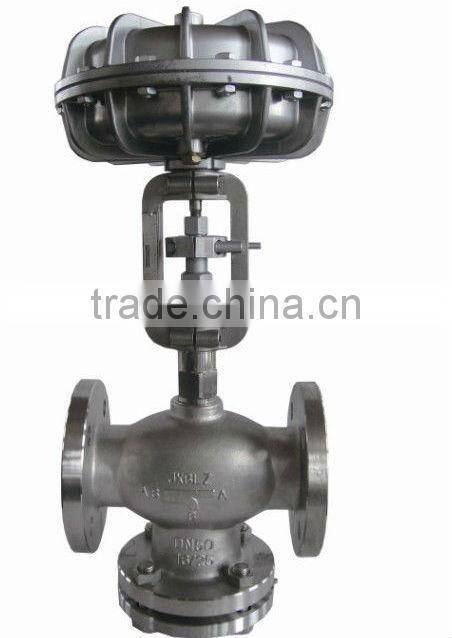

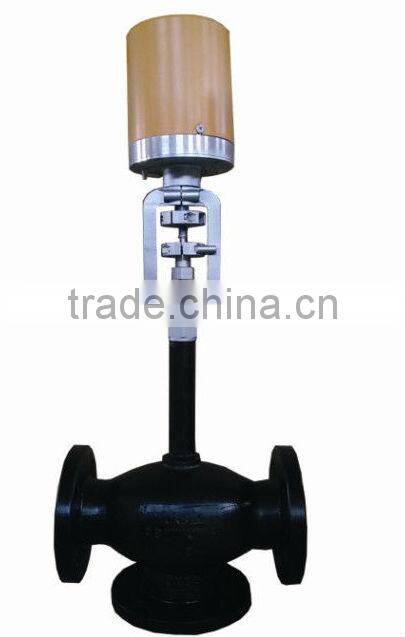

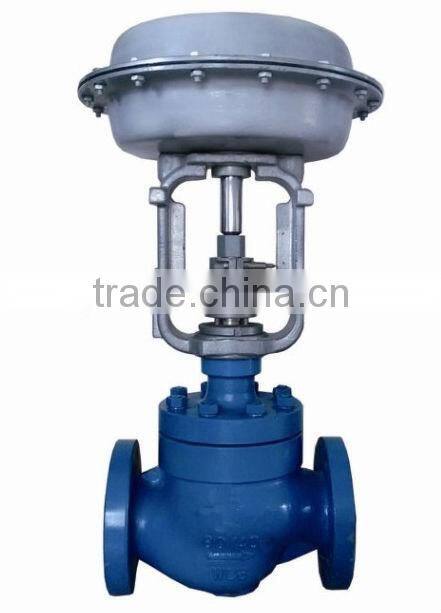

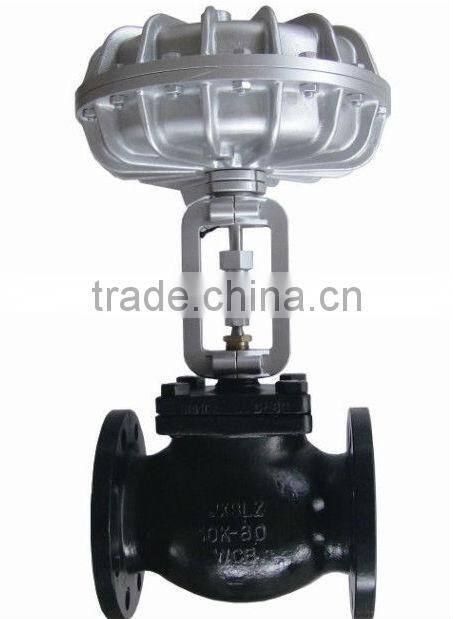

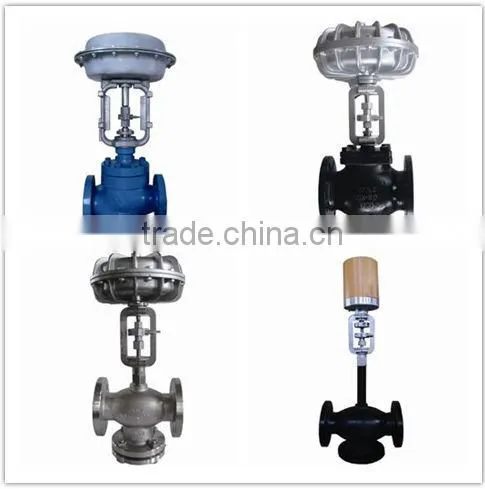

Pneumatic Control Valve
Two-way control valves (model FIG 580-A/B/C)
In the valve fluid channels in an s-shaped fluid lines, the advantage is small pressure drop loss, large flow, adjustable range. Flow characteristic curve of high precision, good dynamic stability. Low noise, small cavitation corrosion, the regulator of dynamic stability is good, suitable to all kinds of temperature control of high pressure fluid. With many spring film actuator or electric actuator, its compact structure, large output force. Products comply with GB/T4213-2008, DIN and ANSI standards.
Designed for frequent switch, control requirement of working conditions and design, has a beautiful appearance, seal tightly don't leak, long service life, etc.widely used in power plants, steel mills, chemical industry, pharmacy, beer, beverage, paper making, printing and dyeing and other industries .
Main technical parameters
Bore:DN15~DN500mm
Nominal pressure: PN16~PN420,5K~63K,150LB~2500LB
Applicable temperature:-196°C~+650°C
Applicable medium:gas,water,oil,steam etc.
Connection:flange,SW.
Bonnet type: Normal type ,High temperature type, Bellows type , Low temperature type
Stuffing:PTFE,Flexible graphite
Seat:PTFE
Body material:WCB,WC6,WC9,CF8,CF8M,CF3M etc.
Flow features :quick fit,equal percentage,straight line
Actuator:Single spring diaphragm cylinder,multi-spring diaphragm cylinder,piston type/Double-acting cylinder,electric,hydraulic.
