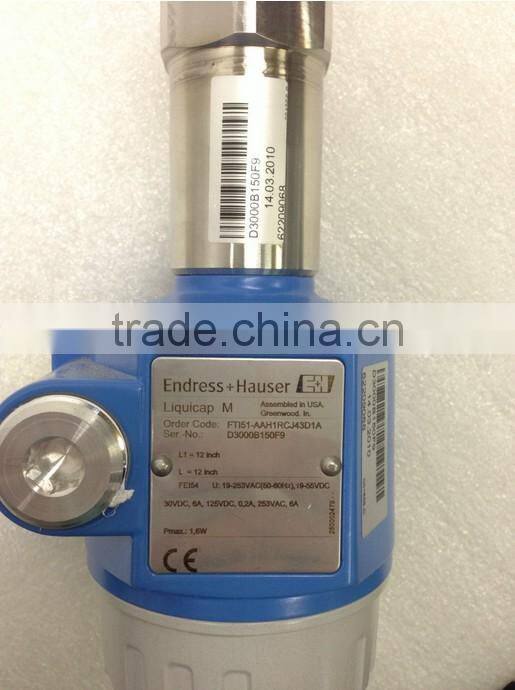

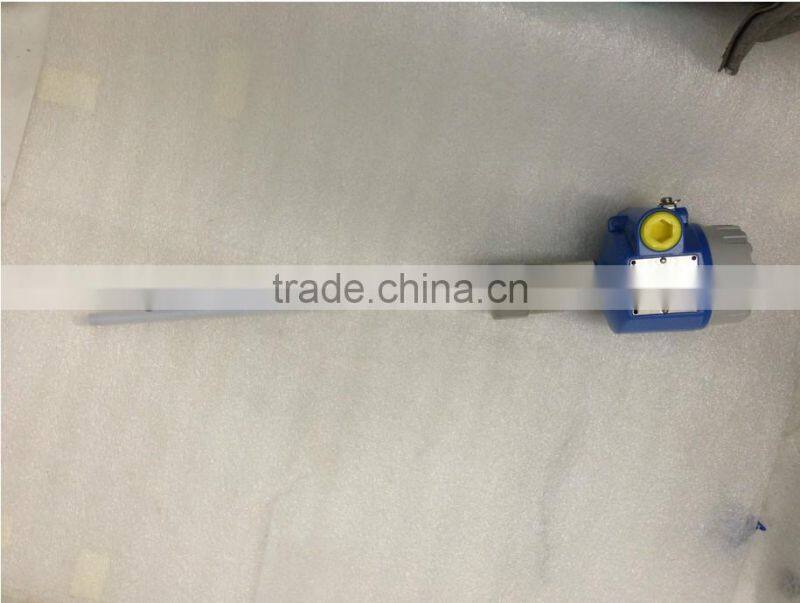

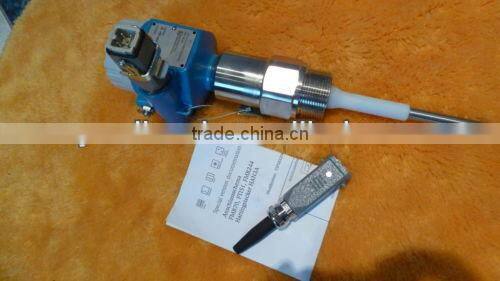

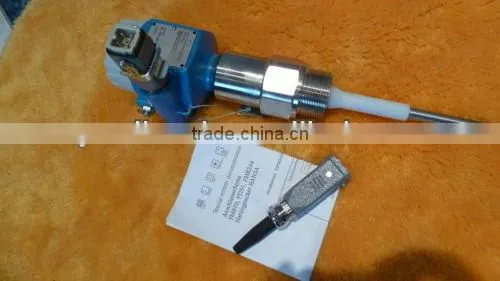

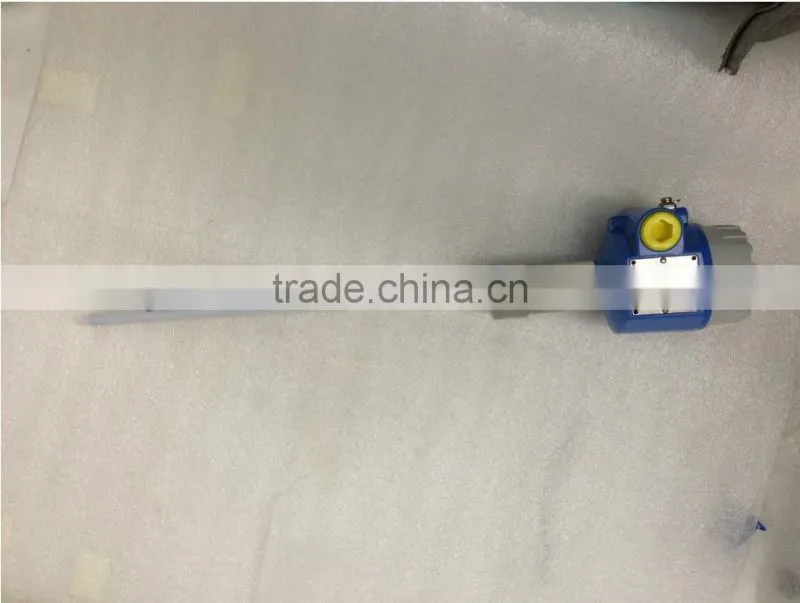

Endress + Hauser FTI51/FTI52 Liquicap M Level Probe

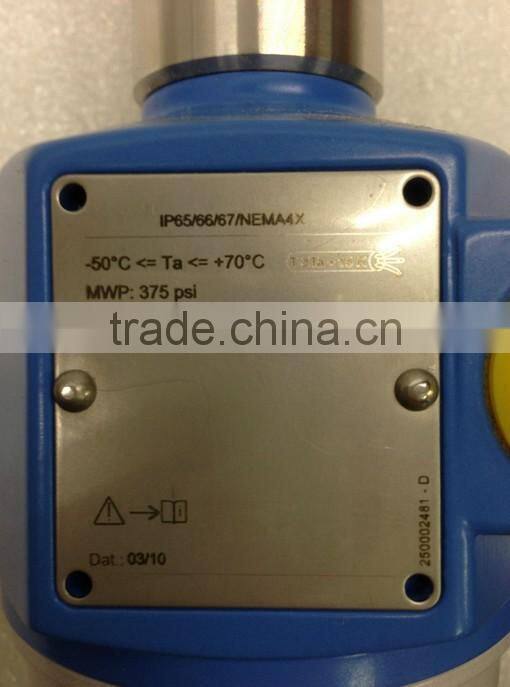

Ambient temperature -50 °C ... +70 °C
(-58 °F ... +158 °F)
With separate housing:
-50 °C ... +120 °C
(-58 °F ... +248°F)
Process temperature -80 °C ... +200 °C
(-112 °F ... +392 °F)
Process pressure absolute / max. overpressure limit Vacuum ... 100 bar
(Vacuum ... 1450 psi)
Main wetted parts Insulation material: PTFE, PFA
316L
Process connection G 1/2 ... 1 1/2
NPT 1/2 ... 1 1/2
Flange from DN25.../ANSI 1".../JIS 10K...
Process connection hygienic Tri-Clamp ISO2852 gap free plated
Dairy coupling
Flush mount
Sensor length Total length of probe: max 6 m (20 ft)
Output 2- wire 19-253 VAC
3-wire
PFM
Relay DPDT
DC-PNP
8/16 mA
Certificates / Approvals ATEX
FM
CSA
NEPSI
TIIS
SIL
WHG/ Overfill prevention
EHEDG / 3A
GL marine
Options Inactive length
Fully isolated active build-up compensation
Ground tube
Separate housing
Specialities Interface detection
Foam detection
