Differential Pressure Flowmeter Deltatop DO61W

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Germany

Model Number:

DO61W

Xian Wellwork Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xi'an

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Germany

Model Number DO61W

E+H Differential Pressure Flowmeter Deltatop DO61W

Differential pressure flow measurement with orifices and Deltabar differential pressure transmitter

Your Benefits

selectable according to the application:
- operational compact version
- modular remote version
optimized for minimum pressure loss, highest accuracy and maximum measuring dynamics
measuring range of the Deltabar differential pressure transmitter adjusted on delivery
measurement method globally standardized according to ISO 5167
optional symmetric orifice for bidirectional measurements
robust design; no moving parts

Field of Application

Measuring Principle	Delta P

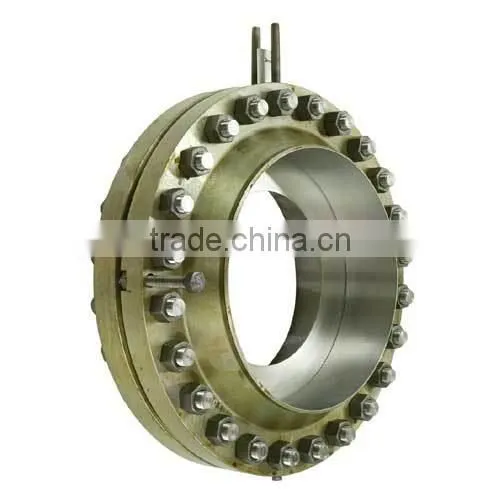

Product headline	Calculated volume or mass flow measurement. dp primary element (orifice). Orifice flange union with flange taps.
Sensor features	Internationally standardized ISO5167-2. Including orifice flanges. Exchangeable orifice plate. Compact or remote design. Optimizable for minimized pressure loss, improved uncertainty or maximized Turndown. Deltabar S/M differential pressure transmitter.
Nominal diameter range	DN 25...500 1" ... 24"
Max. measured error	typically < 1% of calculated volume or mass acc. ISO5167 without calibration." Uncertainty of primary element excluding uncertainty of density or compensation."
Measuring range	2.5 ... 50'000m3/h
Max. process pressure	PN10 ... 160 Cl.300 ... 2500
Medium temperature range	Compact version: -200°C ... 200°C -328°F ... 392°F Remote version: -200°C ... 1000°C -328°F ... 1832°F
Degree of protection	Transmitter (Deltabar): IP67 NEMA6P
Display/Operation	Transmitter (Deltabar): 4-line display 3 push buttons Quick setup HistoROM
Outputs	Transmitter (Deltabar): 4 ... 20 mA
Digital communication	Transmitter (Deltabar): HART PROFIBUS PA FOUNDATION Fieldbus
Hazardous area approvals	Transmitter (Deltabar): ATEX FM CSA IEC TIIS NEPSI
