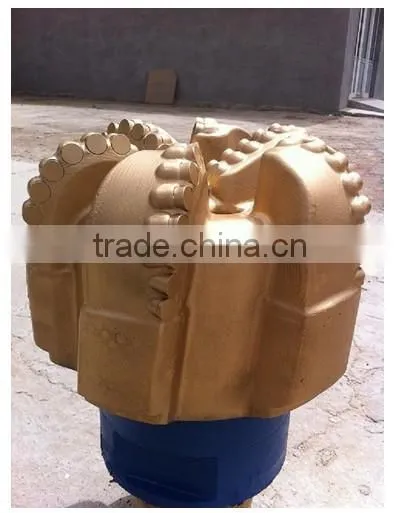

Smith Diamond Drill Bit TD17 1/2'' M433, Oil Drill Bits

Smith Diamond Drill Bit TD17 1/2'' M433, Oil Drill Bits thumbnail-1
Smith Diamond Drill Bit TD17 1/2'' M433, Oil Drill Bits photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
TD17 1/2'' M433
Type:
Core Drill Bit
Material:
Diamond
Contact Supplier Request Quote Chat Now
Xian Wellwork Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number TD17 1/2'' M433
Type Core Drill Bit
Material Diamond
Use Well Drilling

Smith Diamond Drill Bit TD17 1/2'' M433, Oil Drill Bits



Product Description


Drill bit features:

1. Parabolic crown profile, blade cutter setting
2.13mm PDC cutter, medium cutter density
3. Interchangeable screw nozzle
4. Under-cut shank maximizes junk slot area for better bit cleaning. High tilt nozzles for improved hydraulics and ROP
5. Suitable for soft to medium formation
6. Can be used on rotary or down hole motor
7. High HIS is recommended

The types and specs of all kinds of PDC comprehensive diamond bits, and we can design and produce PDC coring bits and Triangle Polycrystalline and synthetic diamond coring drill bits.

Specs  (size) body
material		 blades No.   of
nozzle		 Cutter
size
mm   in
95mm 4 matrix 4  blade 4 13.4mm
98mm 4 matrix 3  blade 3 13.4mm
102mm 4 matrix 4  blade 4 13.4mm
105mm 4-1/8 matrix 4  blade 4 13.4mm
114mm 4-1/2 matrix 4  blade 4 13.4mm
114mm 4-1/2 matrix 5  blade 5 13.4mm
118mm 4-5/8 matrix 3  blade 3 13.4mm
120mm 4-3/4 matrix 3  blade 3 13.4mm
120mm 4-3/4 matrix 4  blade 4 13.4mm
120mm 4-3/4 matrix 5  blade 5 13.4mm
130mm 5-1/8 matrix 3  blade 3 13.4mm
130mm 5-1/8 matrix 4  blade 4 13.4mm
132mm 5-1/8 matrix 5  blade 5 13.4mm
133mm 5-1/4 matrix 4  blade 4 13.4mm
140mm 5-1/2 matrix 5  blade 5 13.4mm
142mm 5-5/8 matrix 3  blade 3 13.4mm
142mm 5-5/8 matrix 4  blade 4 13.4mm
142mm 5-5/8 matrix 5  blade 5 13.4mm
146mm 5-3/4 matrix 5blade 5 13.4mm
149.2 5-7/8 matrix 3  blade 3 13.4mm
149.2 5-7/8 matrix 5  blade 5 13.4mm
152mm 6 matrix 3  blade 3 13.4mm
152mm 6 matrix 4  blade 4 13.4mm
152mm 6 matrix 5  blade 5 13.4mm
152mm 6 matrix 6  blade 3 13.4mm
155mm 6-1/8 matrix 8  blade 4 13.4mm
159mm 6-1/4 matrix 5  blade 5 13.4mm
159mm 6-1/4 matrix 6  blade 6 16mm
165mm 6-1/2 matrix 5  blade 5 16mm
171mm 6-3/4 matrix 5  blade 5 16mm
200mm 7-7/8 matrix 5  blade 5 13.4mm
200mm 7-7/8 matrix 4  blade 4 19mm
200mm 7-7/8 matrix 5  blade 5 19mm
200mm 7-7/8 matrix 5  blade 5 19mm
206mm 8-1/8 matrix 5  blade 5 19mm
215mm 8-1/2 matrix 5  blade 5 19mm
215mm 8-1/2 matrix 6  blade 6 19mm
215mm 8-1/2 matrix 6  blade 4 13.4mm
215mm 8-1/2 matrix 4  blade 4 13.4mm
222mm 8-3/4 matrix 6  blade 6 19mm
241mm 9-1/2 matrix 6  blade 6 19mm
247mm 9-7/8 matrix 4  blade 5 19mm
311 12-1/4 matrix 5  blade 7 19mm
374 14-3/4 matrix 5  blade 9 19mm
