Product Overview:

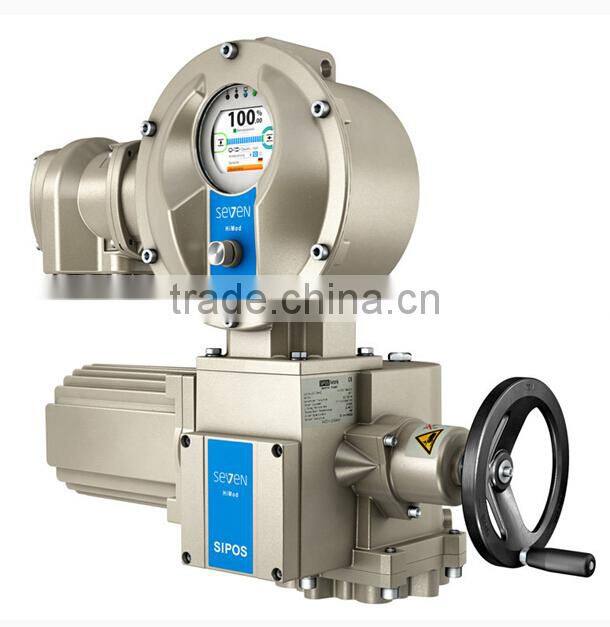

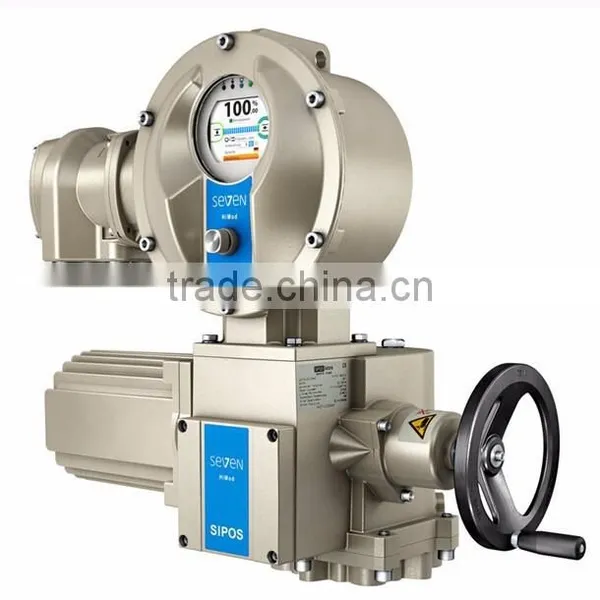

Variable speed actuator SEVEN
Use of a specially developed frequency converter offers tremendous advantages. The most important features are variability in speed, resistance against voltage and frequency fluctuations, no current peaks during start-up as well as gentle operation of the valve by reducing speed in end positions. The robust design is extremely resilient against environmental influences (standard corrosivity class C5, IP67, double sealed – protection is also ensured during commissioning) and can be further enhanced as an option.
The SEVEN actuator is available in three electronics variants: Ecotron, Profitron and HiMod.
Details:
o Design features Ecotron
Torque range up to 4000 Nm / 2800 Nm (Inching/Modulating)
Variable output speeds up to 160 rpm / 80 rpm (Inching/Modulating)
Variants in modulating classes A (On/Off), B (Inching) and C (Modulating) according to EN 15714-2
Symbol LC display with “Drive Controller“ for simple commissioning
o Design features Profitron
Torque range up to 4000 Nm / 2800 Nm (Inching/Modulating)
Variable output speeds and complex speed functions up to 160 rpm / 80 rpm (Inching/Modulating)
Variants in modulating classes A (On/Off), B (Inching) and C (Modulating) according to EN 15714-2
Full graphic user interface with “Drive Controller“, intuitive operation
Many options for parameterization and process adjustment
External USB port and Bluetooth connection standard
o Design features HiMod
Torque range up to 2800 Nm (continuous modulation)
Variable output speed up to 80 rpm (continuous modulation)
Continuous modulation class D according to EN 15714-2
Full graphic user interface with „Drive Controller“ control button, intuitive operation
Many options for parameterization and process adjustment, in particular for high precision control
Utmost precision by electronic Position encoder NiP
Non-intrusive commissioning, enclosure protection remains intact for opened customer connection
o Interfaces
Output drives according to ISO and DIN standards, special solutions available as an option
Integration into all variants of DCS (Binary, Profibus, Modbus, HART)
Parameterization program COM SIPOS
USB port for connection to PC or USB flash drive
Bluetooth connectivity (Profitron and HiMod)
