Product Overview:

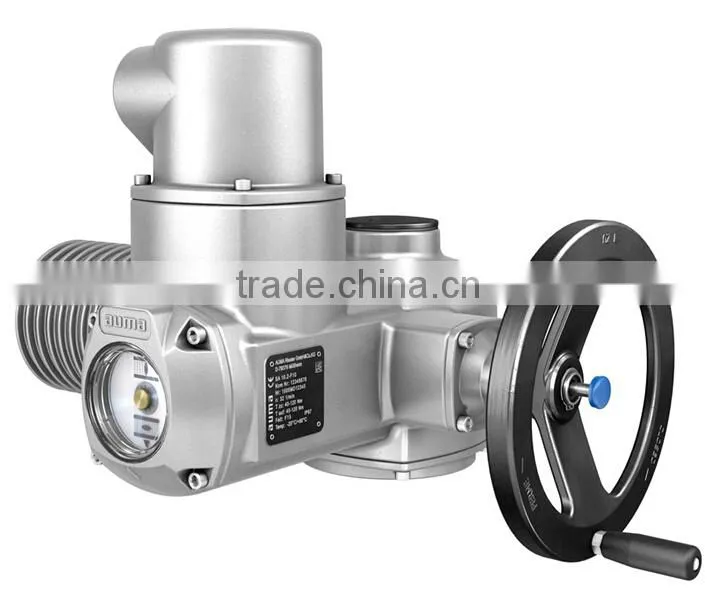

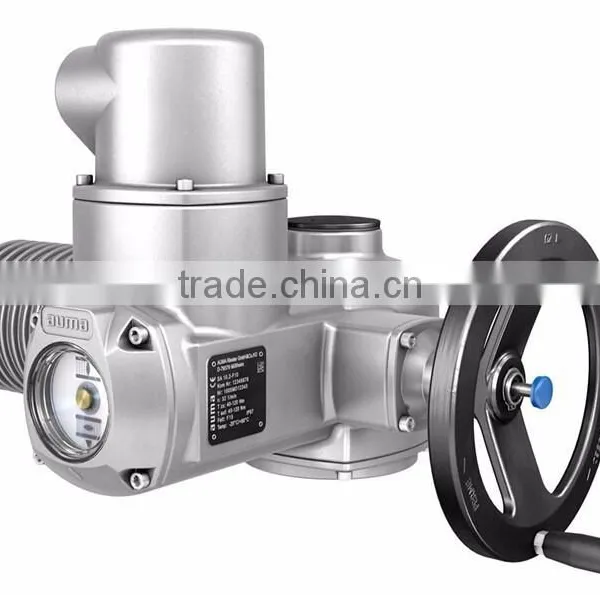

Actuators SA and SAR
Actuators of the SA type range for open-close duty and positioning duty are rated for class A and B or types of duty S2 - 15 min. A special version for longer running is available for the S2 - 30 min duty.
The modulating actuators of the SAR range are rated for class C or types of duty S4 - 25 %. Special versions for S4 - 50 % and S5 - 25 % are also available.
Actuators of type range SA/SAR 07.2 – SA/SAR 16.2 can be combined with various controls from simple OPEN-CLOSE control to the micro-controlled version with logging of operating data or fieldbus interface.
Details:
Design features SA
Torque range from 10 Nm to 32,000 Nm
Output speeds from 4 to 180 rpm

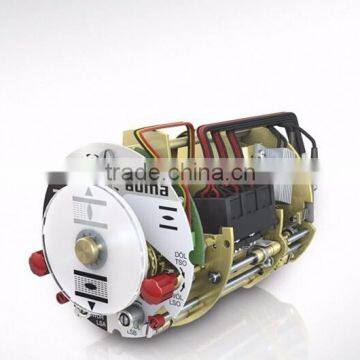

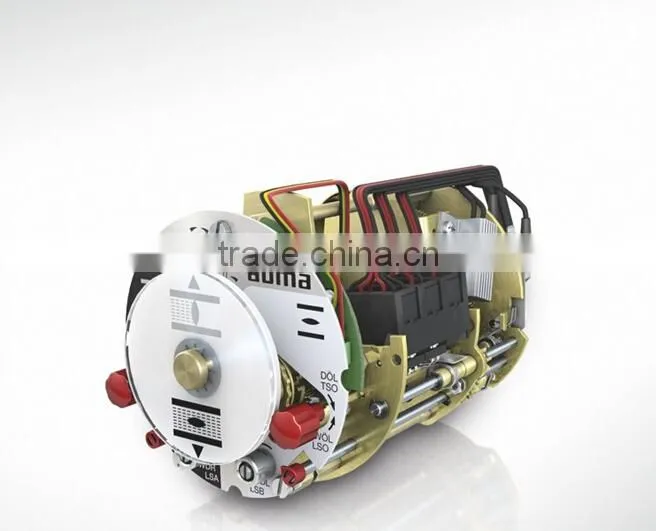

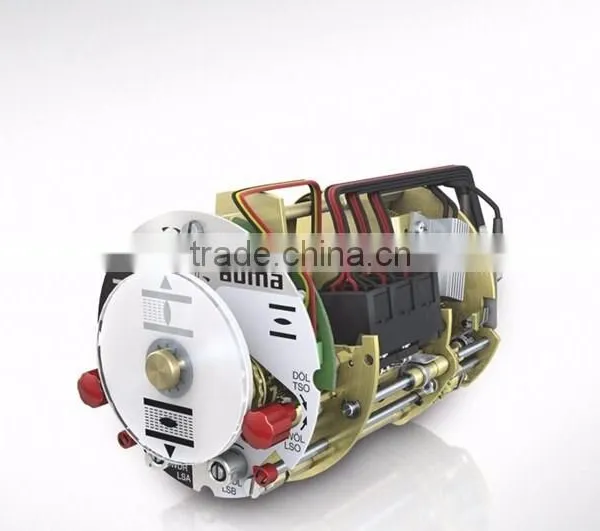

Limit and torque sensing
Available with 3-ph AC, 1-ph AC and DC motors
Handwheel for manual operation
Design features SAR
Torque range from 15 Nm to 4,000 Nm
Modulating torque range from 15 Nm to 1,600 Nm
Max. number of starts 1,200 c/h
Output speeds from 4 to 90 rpm
Limit and torque sensing
Available with 3-ph AC, 1-ph AC motors
Handwheel for manual operation
Ambient conditions
High enclosure protection
High quality corrosion protection
Wide ambient temperature ranges
Options
Intermediate position switches
Switches in tandem version
Remote position transmitter
Magnetic limit and torque Transmitter
Mechanical position indicator
Functional safety: Up to SIL 2 in selected configurations
Interfaces
Electrical connection via AUMA plug/socket connector (optionally terminals)
Cable entries in different versions

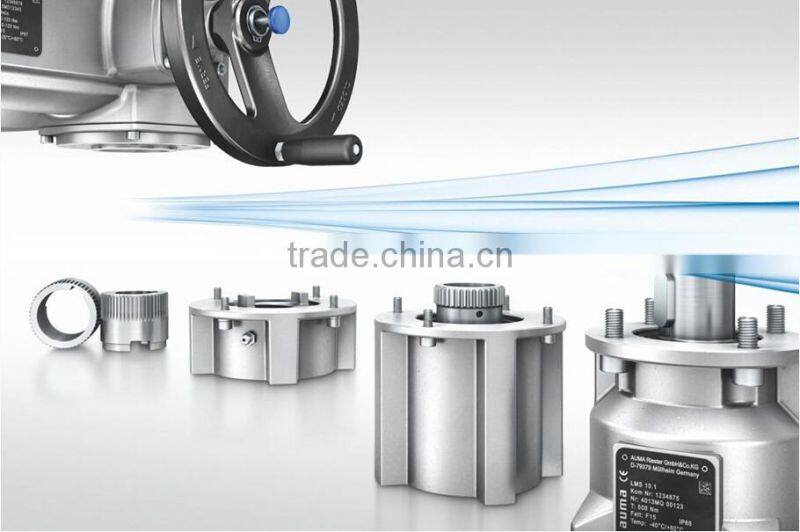

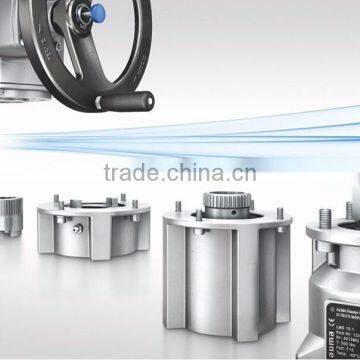

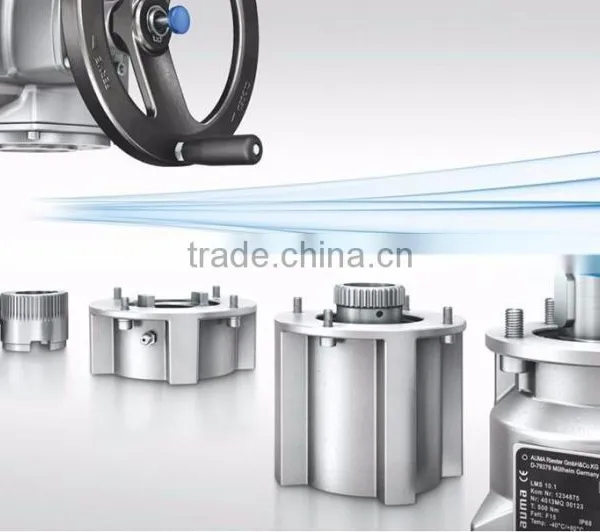

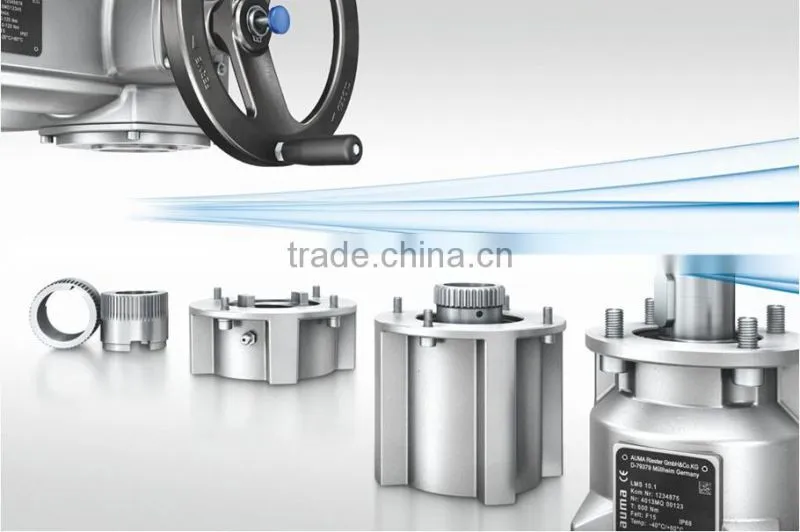

Output drive types according to ISO and DIN Standards
Documents
