Product Overview:

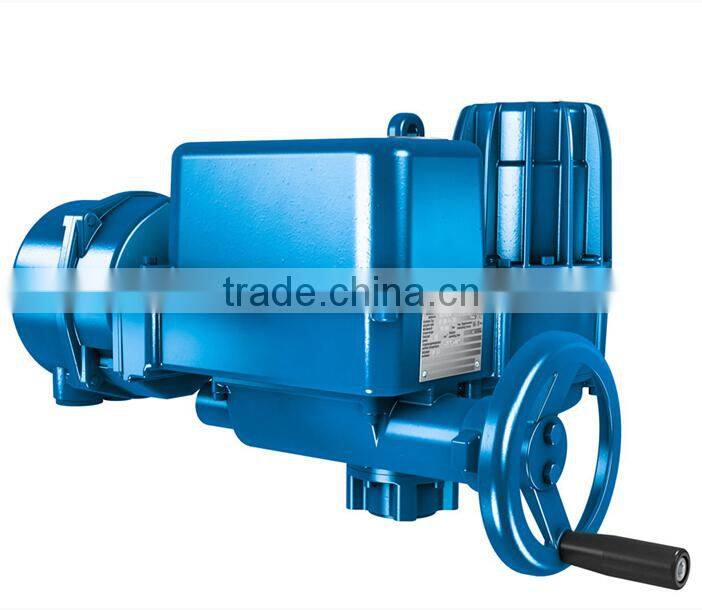

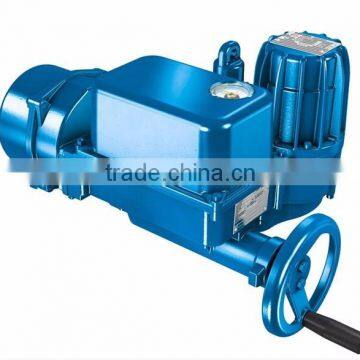

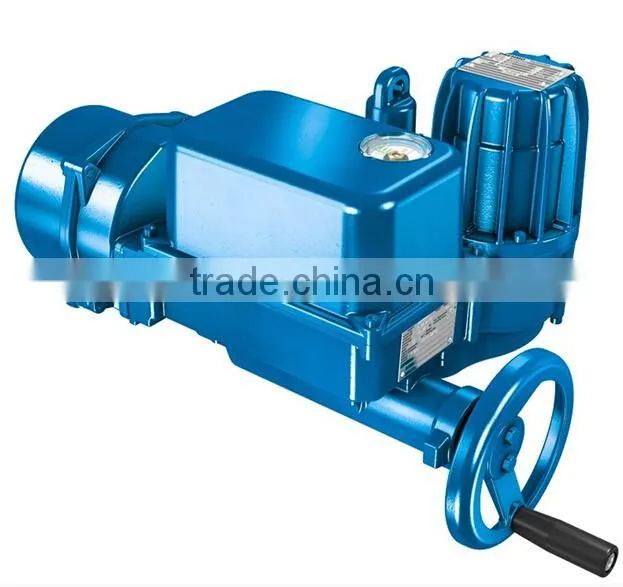

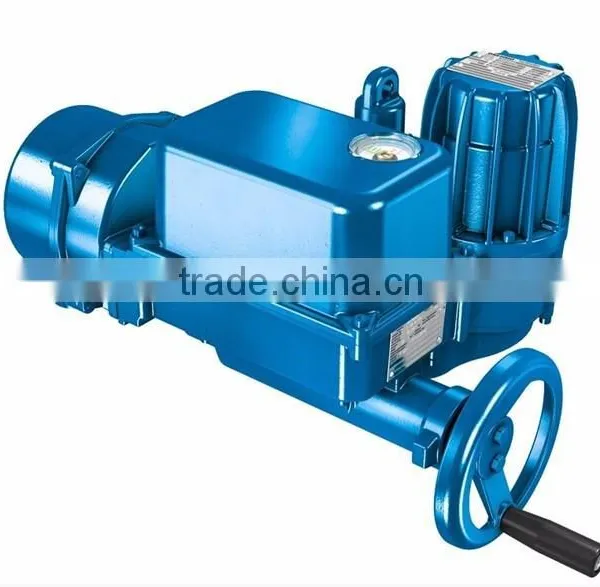

Actuators D and D(R)
D multi-turn actuators are rated for open-close duty and positioning duty (classes A and B) / (short-time duty S2 - 10/15 min).
D multi-turn actuators are rated for modulating duty (class C) S4 - 25 %. Special version for S4 - XX % are available on request.
Actuators of type range D20 – D2000 can be combined with various controls: From simple OPEN - CLOSE controls to micro-controlled version with logging of operating data or fieldbus interface.
Details:
o D design features
Torque range from 10 Nm to 2,000 Nm
Output speeds from 5 to 160 rpm
Limit and torque sensing
3-phase AC, 1-phase AC and DC motors available
Handwheel for manual operation
o D(R) design features
Torque range from 10 Nm to 2,000 Nm
Modulating torque range from 15 Nm to 1,000 Nm
Max. number of starts 1,200 c/h
Output speeds from 5 to 40 rpm
Limit and torque sensing
3-phase and 1-phase AC motors
Handwheel for manual operation
o Ambient conditions
High enclosure protection
High quality corrosion protection
Wide ambient temperature ranges
o Options
Intermediate position switches
Switches in tandem version
Position transmitter
Magnetic limit and torque transmitter
Mechanical position indicator
o Interfaces
Electrical connection via AUMA compact connector (terminals available as option)
Cable entries in different versions
Output drive types according to DIN and EN ISO standards
