Cheap Oil Pressure Sensor Cummins

Cheap Oil Pressure Sensor Cummins thumbnail-1
Cheap Oil Pressure Sensor Cummins photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
704
Contact Supplier Request Quote Chat Now
Xian Wellwork Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number 704

Specifications

1, Liquid pressure sensor 2, Anti-corrosive 3, Reliable and durable sensor 4, Stainless steel shape

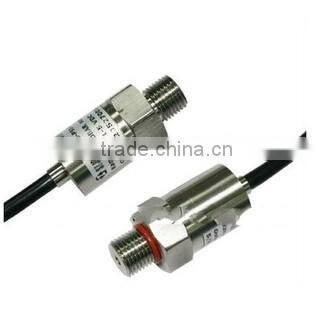

Anti corrosive liquid pressure Sensor / Transmitter   Model 704

 liquid pressure transmitter , oil pressure sensor, stainless steel pressure sensor



FEATURES

  •  Any Range Between 0 to -1,1, 2,3...600 bar
  •  0.5%FS  &1.0%FS accuracy
  •  Reverse protection and MEMS technology
  •  Programmable ASIC to meet customer specifications
  •  Stainless steel compact Shape
  •  Anti-Corrosive
  •  Amplified output and temperature compensate

SPECIFICATIONS

Supply Voltage

8-35V &  5V

Supply Current

6 mA Max

Output Voltage

Electric Connector

4 to 20mA,  0 to 10V, 0.5 to 4.5V

Hirschmann / Parkard / Direct Cable / Special

Range

Pressure  Type

Measure Media

0 to -1,1,2,3..600bar

A, G

Water, Air, Oil

Proof Pressure

200%FS

Total Accuracy (%FS) 1

Long Term Stability

Response Time

0.5%FS &1.0%FS

0.3%FS/year (max.)

1ms (typ.)

Operating Temperature Range

-40°C to +125°C

Storage Temperature Range

-40°C to +150°C

Protection Class

Material

IP 65

304L Stainless Steel

Pressure Port

NPT 1/8, NPT 1/4, G1/4, G1/8 Customize



DIMENSIONS







Cheap Oil Pressure Sensor Cummins
