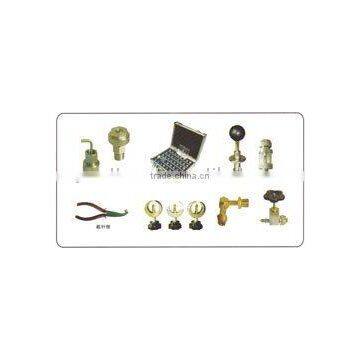

Pressure Transmitter Interfaces & Accessories

Specifications

Piston pressure gauge is a high precision and reliable standard pressure calibrator which is basic on Pascal law and a statics balance principle. It is usually called piston gauge or manometer, sometimes pressure balance instrument, major used in the lab and measure workshop, or as a pressure calibrator. Sometimes, we use it on some other gauges to calibrate the data.

Function

Made of alloy steel and tungsten carbide which are hightensile, high hardness and low temperature, assures the effective rate of the cycle.

The position of sensor used to work shifts, agility, striking and accurate.

Technique Data

Modal: LGSY -6A,LGSY -60A,LGSY -600A

Measurement:0.04~0.6MPa;0.1~6MPa;1~60MPa

Accuracy:0.02Deg(±0.02%);0.05Deg(±0.05%)

Function:Range piston gauge, Checked Digital piston gauge, precision pressure gauge, pressure transmitter.

Kolbenwerkstoff:Piston Rod:tungsten carbide

Piston Barrel:tungsten carbide

Counterweight Material:stainless steel 0.02Deg,Carbon steel 0.05Deg

Media:25MPa down is transmitter oil, or mixed with kerosene,25MPa up is DBS
