US300FM Ultrasonic Flowmeter

 Product Information

US300FM Ultrasonic Flowmeter

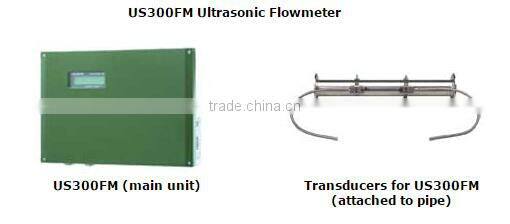

The model US300FM is an ultrasonic flowmeter for measuring liquid flow in a fully filled pipe. With the advanced signal processing and correlation detection method, US300FM provides fast, accurate, and no-zero offset flow measurements in clean to dirty fluids. Easy setup with interactive parameter setting. Easy adjustment with no zero-offset transducers

Easy setup and easy adjustment

 Features

•  More accurate measurements under difficult conditions

    ♦  New noise suppression technique improves accuracy of measurements with fluids where air bubbles are present

•  Fast response

    ♦  Yokogawa signal processing technology improves the speed and accuracy of measurements

•  Easy installation and adjustment of transducers

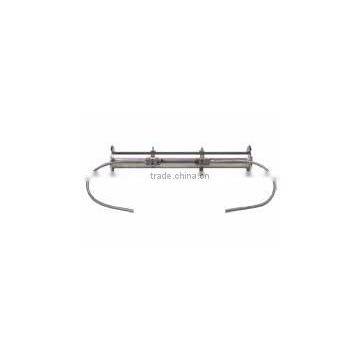

    ♦  Transducers are small and light – can be held in one hand

    ♦  Each sensor calibrated before shipment, eliminating need to tune on-site

    ♦  No longer necessary to adjust the zero flow condition

•  Easy setup with interactive parameter setting process

•  Two flow-input channels are provided as an option

•  A maximum of two current outputs enable the simultaneous measurement of flow and sound velocity

Specifications

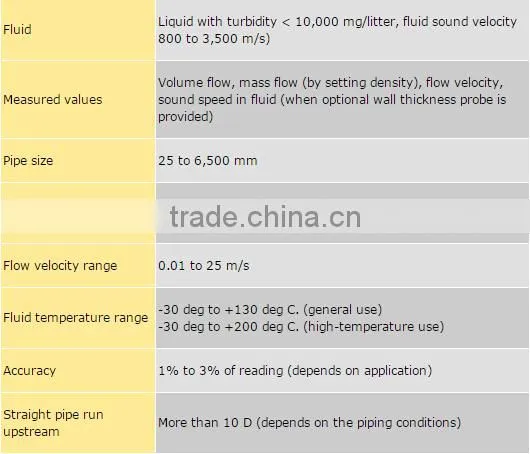

US300FM Performance

Main unit construction

Transducer construction

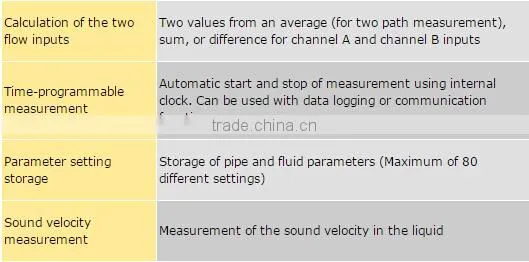

  Functions

Applications

Pure water measurement for semiconductor industry

•   Hot water measurement for food industry CIP

•   Cooling water measurement (including water containing iron powder) for iron and steel industry

•   Flow monitoring for water supply and sewerage lines
