US300 Portable Ultrasonic Flowmeter

 Product Information

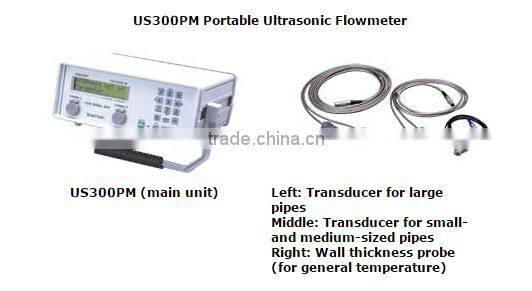

US300PM Portable Ultrasonic Flowmeter

The model US300PM is a portable ultrasonic flowmeter for measuring liquid flow in a fully filled pipe. With the advanced signal processing and correlation detection method, US300PM provides fast, accurate, and no-zero offset flow measurements in clean to dirty fluids.

  Easy setup and easy adjustment

 Features: US300PM Portable Ultrasonic Flowmeter

•  More accurate measurements under difficult conditions

     ♦  New noise suppression technique improves accuracy of measurements with fluids where air bubbles are present

•  Fast response

     ♦  Yokogawa signal processing technology improves the speed and accuracy of measurements

•  Easy installation and adjustment of transducers

     ♦  Transducers are small and light enough to hold in one hand

     ♦  Each sensor calibrated before shipment, eliminating need to tune on-site

     ♦  No longer necessary to adjust the zero flow condition

•  Easy setup with interactive parameter setting process

•  Two flow-input channels are provided as a standard feature

•  A maximum of two current outputs enable the simultaneous measurement of flow and sound velocity

•  A wall thickness measurement function is provided as a standard feature (wall thickness probes are sold separately)

•  Data logging provided as a standard feature (maximum of 100,000 values)

•  Data transfer function via RS232 port

•  Extended battery life (maximum 14 hours)

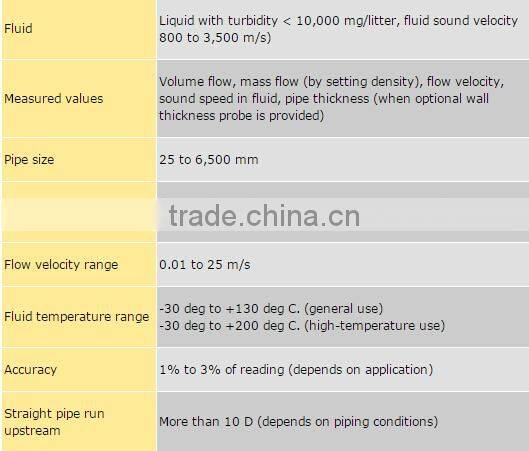

Specifications: US300PM Portable Ultrasonic Flowmeter

  US300PM Performance

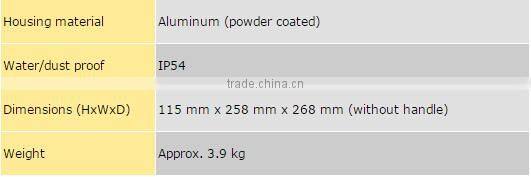

Main unit construction

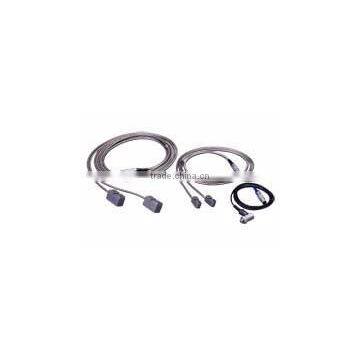

Transducer construction

  Functions

Applications

•  Routine flow measurement for compliance to ISO14001

•  Evaluation of pump performance / efficiency

•  Maintenance and checking
