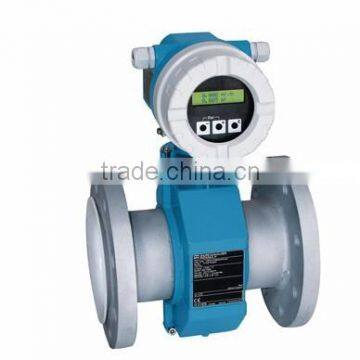

Proline Promag 10P Electromagnetic Flowmeter

Proline Promag 10P Electromagnetic Flowmeter thumbnail-1
Proline Promag 10P Electromagnetic Flowmeter photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Germany
Model Number:
10P
Contact Supplier Request Quote Chat Now
Xian Wellwork Industrial Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Germany
Model Number 10P

Proline Promag 10P Electromagnetic flowmeter

The flowmeter for highest medium temperatures with a highly cost-effective transmitter

Product Overview



Promag P is the preferred sensor for applications with highest requirements in a multitude of industries. Combined with the Promag 10 transmitter for basic applications and direct integration, Promag 10P is dedicated for chemical and process applications with corrosive liquids and high medium temperatures. It will be the preferred solution for customers aiming for minimized cost of ownership. Promag 10P is available in a compact or remote version.

Benefits

  • Versatile applications – wide variety of wetted materials

  • Energy-saving flow measurement – no pressure loss due to cross-section constriction

  • Cost-effective – designed for easy applications and direct integration

  • Safe operation – display provides easy readable process information

  • Fully industry compliant – IEC/EN/NAMUR

  • Maintenance-free – no moving parts

Field of application

  • The measuring principle is virtually independent of pressure, density, temperature and viscosity

  • Dedicated for chemical and process applications with corrosive liquids and high medium temperatures.

Device properties

  • Nominal diameter: max. DN 600 (24")

  • Liner made of PTFE or PFA

  • 2-line display with push buttons

  • Device in compact or remote version

  • HART

  • Technical information



Measuring Principle Electromagnetic
Product headline The flowmeter for highest medium temperatures with a highly cost-effective transmitter. Dedicated for chemical and process applications with corrosive liquids and high medium temperatures.
Sensor features Versatile applications – wide variety of wetted materials. Energysaving flow measurement – no pressure loss due to cross-section constriction. Maintenance-free – no moving parts. Nominal diameter: max. DN 600 (24"). All common process connections.
Transmitter features Cost-effective – designed for easy applications and direct integration. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2-line display with push buttons. Device in compact or remote version.
Nominal diameter range DN 25...600
1"...24"
Max. measured error ±0.5%
Measuring range 0...9'600 m3/h
Max. process pressure PN10...40 Cl 150...300 JIS 10...20K AS 2129 Table E
Medium temperature range -40...+130°C
(-40...+266°F)
Degree of protection IP 67 (Nema 4x)
IP 68 (Nema 6P)
Display/Operation Two line display
Push buttons
Outputs 4...20mA + pulse,-/status (configurable)
Digital communication HART
Hazardous area approvals FM
CSA
