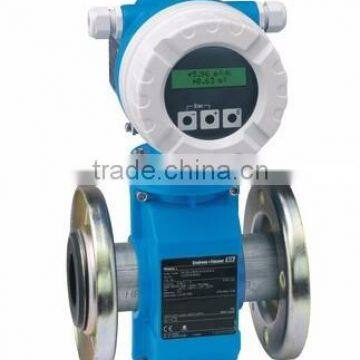

Proline Promag 10L Electromagnetic flowmeter
The flowmeter with a weight-optimized sensor and highly cost-effectiveness
Product Overview
Promag L is the versatile standard sensor for the water and wastewater industry with a lap-joint flange concept for flexible installation independent of the orientation of the pipe flange pitch diameter. Combined with the Promag 10 transmitter for basic applications and direct integration, Promag 10L offers accurate measurement of liquids for a wide range of applications. It will be the preferred solution for customers aiming for minimized cost of ownership.
Benefits
Reduced installation costs – flexible mounting by one-of-a-kind lap-joint flange concept (DN < 350/14")
Energy-saving flow measurement – no pressure loss due to cross-section constriction
Cost-effective – designed for easy applications and direct integration
Safe operation – display provides easy readable process information
Fully industry compliant – IEC/EN/NAMUR
Maintenance-free – no moving parts
Field of application
The measuring principle is virtually independent of pressure, density, temperature and viscosity
Fully suitable for standard applications in the water and wastewater industry.
Device properties
Up to 30 % less sensor weight
Nominal diameter: DN 25 to 2400 (1 to 90")
Maximum reduced installation length to DVGW/ISO
2-line display with push buttons
Device in compact or remote version
HART
Technical information
| Measuring Principle | Electromagnetic | |
| Product headline | The flowmeter with a weight-optimized sensor and highly cost-effectiveness. Fully suitable for standard applications in the water and wastewater industry. | |
| Sensor features | Reduced installation costs – flexible mounting by one-of-a-kind lap-joint flange concept (DN <350/14"). Energy-saving flow measurement – no pressure loss due to cross-section constriction. Maintenance-free – no moving parts. Up to 30 % less sensor weight. Nominal diameter: DN 25 to 2400 (1 to 90"). | |
| Transmitter features | Cost-effective – designed for easy applications and direct integration. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. 2-line display with push buttons. Device in compact or remote version. | |
| Nominal diameter range | Lap joint flange; lap joint flange, stamped plate: DN 25 to 300 (1 to 12") Fixed flange: DN 350 to 2400 (14 to 90") | |
| Wetted materials | Liner: PTFE; Polyurethane; Hard rubber Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022) | |
| Measured variables | Volume flow | |
| Max. measured error | Volume flow: ±0.5 % o.r. ± 2 mm/s (±0.5 % o.r. ± 0.08 in/s) | |
| Measuring range | 9 dm³/min to 162 000 m³/h (2.5 gal/min to 1030 Mgal/d) | |
| Max. process pressure | PN 16, Class 150 | |
| Medium temperature range | Liner material hard rubber: 0 to +80 °C (+32 to +176 °F) Liner material polyurethane: –20 to +50 °C (–4 to +122 °F) Liner material PTFE: –20 to +90 °C (–4 to +194 °F) | |
| Ambient temperature range | Flange material carbon steel: –10 to +60 °C (+14 to +140 °F) Flange material stainless steel: –40 to +60 °C (–40 to +140 °F) | |
| Sensor housing material | DN 25 to 300 (1 to 12"): AlSi10Mg, coated DN 350 to 2400 (14 to 90"): Carbon steel with protective varnish Sensor connection housing: AlSi10Mg, coated | |
| Transmitter housing material | Powder-coated die-cast aluminum | |
| Degree of protection | Compact version: IP66/67, type 4X enclosure Sensor remote version (standard): IP66/67, type 4X enclosure Sensor remote version (option): IP68, type 6P enclosure Transmitter remote version: IP67, type 4X enclosure | |
| Display/Operation | 2-line display with push buttons Configuration via local display and operating tools possible | |
| Outputs | 4-20 mA HART (active) Pulse/switch output (passive) | |
| Inputs | None | |
| Digital communication | HART | |
| Power supply | DC 11 to 40 V AC 85 to 250 V (45 to 65 Hz) AC 20 to 28 V (45 to 65 Hz) | |
| Hazardous area approvals | cCSAus | |
| Other approvals and certificates | Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025) Drinking water approval: ACS, KTW/W270, NSF 61, WRAS BS 6920 | |
