cat5e computer cable with the best price

Specifications

1.cable utp
2.utp cable 24 AWG conductor
3.utp cable with PVC, LSZH and PE options
4.print meter marks in cable utp
5.rohs

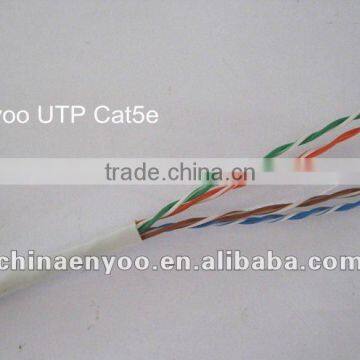

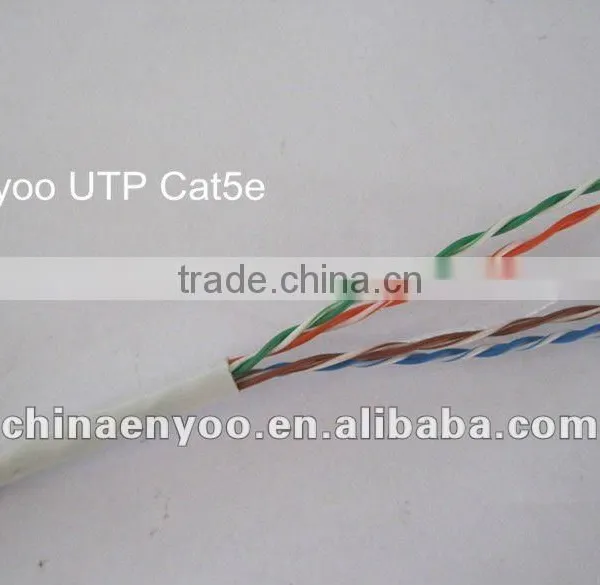

cable utp cat 5e

Category 5e Unshielded Twisted Pair (UTP) 100 Ohm cable is produced using a 4 x 2 x 24 AWG copper wire structure to a Class D standard. It supports the gigabit Ethernet protocol for horizontal and backbone installations.



Features :

24 AWG conductor – solid bare copper cable

PVC, LSZH and PE options

Supplied in 305m box

Printed metre marks



Applications :

Supports Category 5e (Class D) networks running up to 100 MHz applications

Horizontal and backbone installations

10 Base T (IEEE 802.3)

100 Base T (IEEE 802.3U)

 ATM 155

100 VG any LAN (IEEE 802.12



Conformance :

Category 5e

ANSI/EIA/TIA 568B.2 : 2002

ISO/IEC 11801 : 2002

RoHS ETL/UL approved



Technical Specification

construction	value
Conductors	AWG	24
	Size mm	0.50
	Material	Bare Copper
Insulators	Diameter mm	0.88+/-0.02
	Material	HDPE
Jacket	External O.D.	5.0 +/- 0.3
	Thickness mm	0.50 +/- 0.05
	Material	PVC / LSZH / PE



Ordering Information :

Description	Part No
Cat5e Unshielded Twisted Pair (UTP) 24 AWG cable PVC 305m Box - Grey	UTP5E305PVC
Cat5e Unshielded Twisted Pair (UTP) 24 AWG cable LSZH 305m Box - Violet	UTP5E305LSZH
Cat5e Unshielded Twisted Pair (UTP) 24 AWG cable External PE - 305m box	UTP5E305EXT
